Diagnostic Trouble Code Chart

Follow the inspection chart that is appropriate for the diagnostic trouble code.

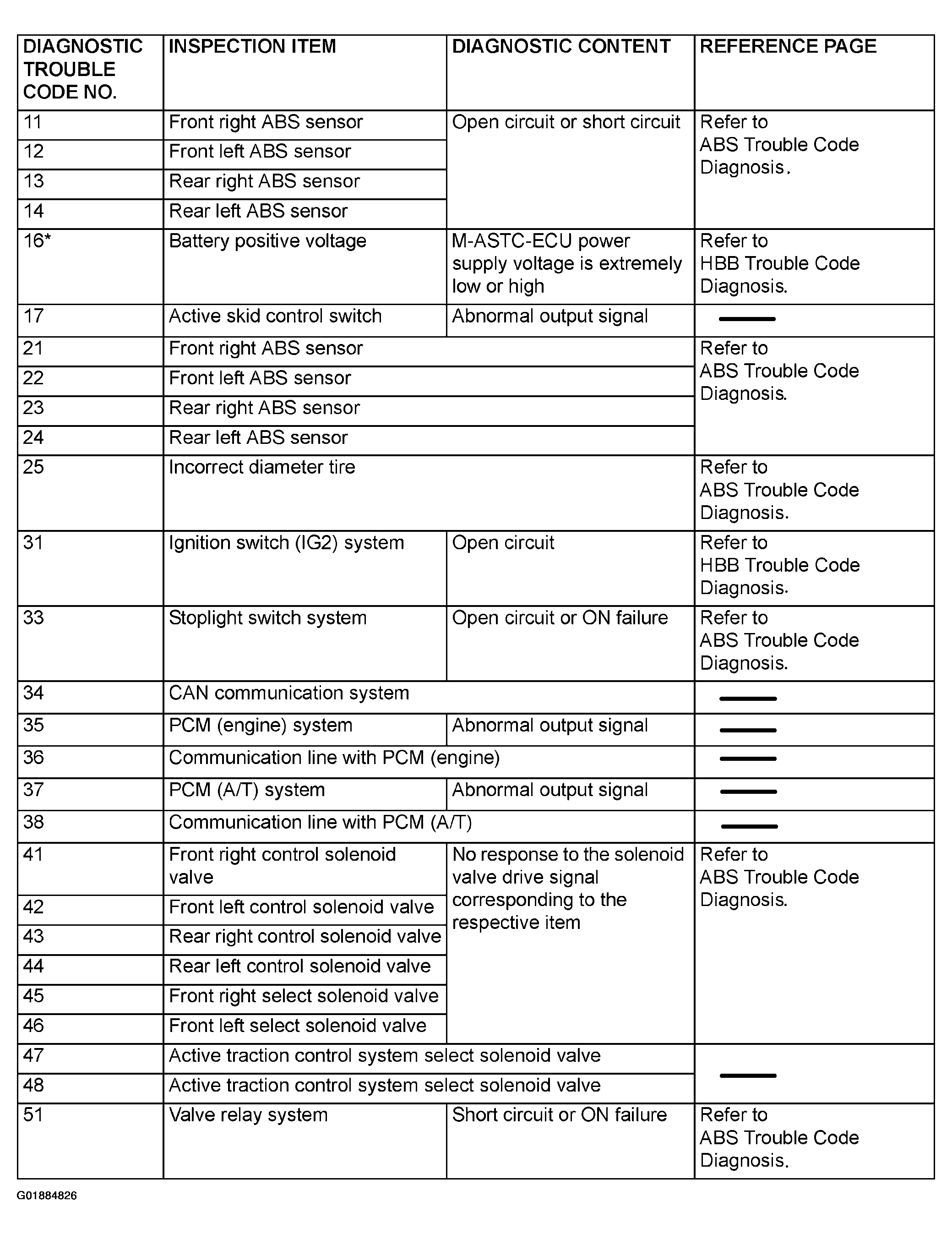

Fig 1: Diagnostic Trouble Code Chart (1 Of 3)
G01884826Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

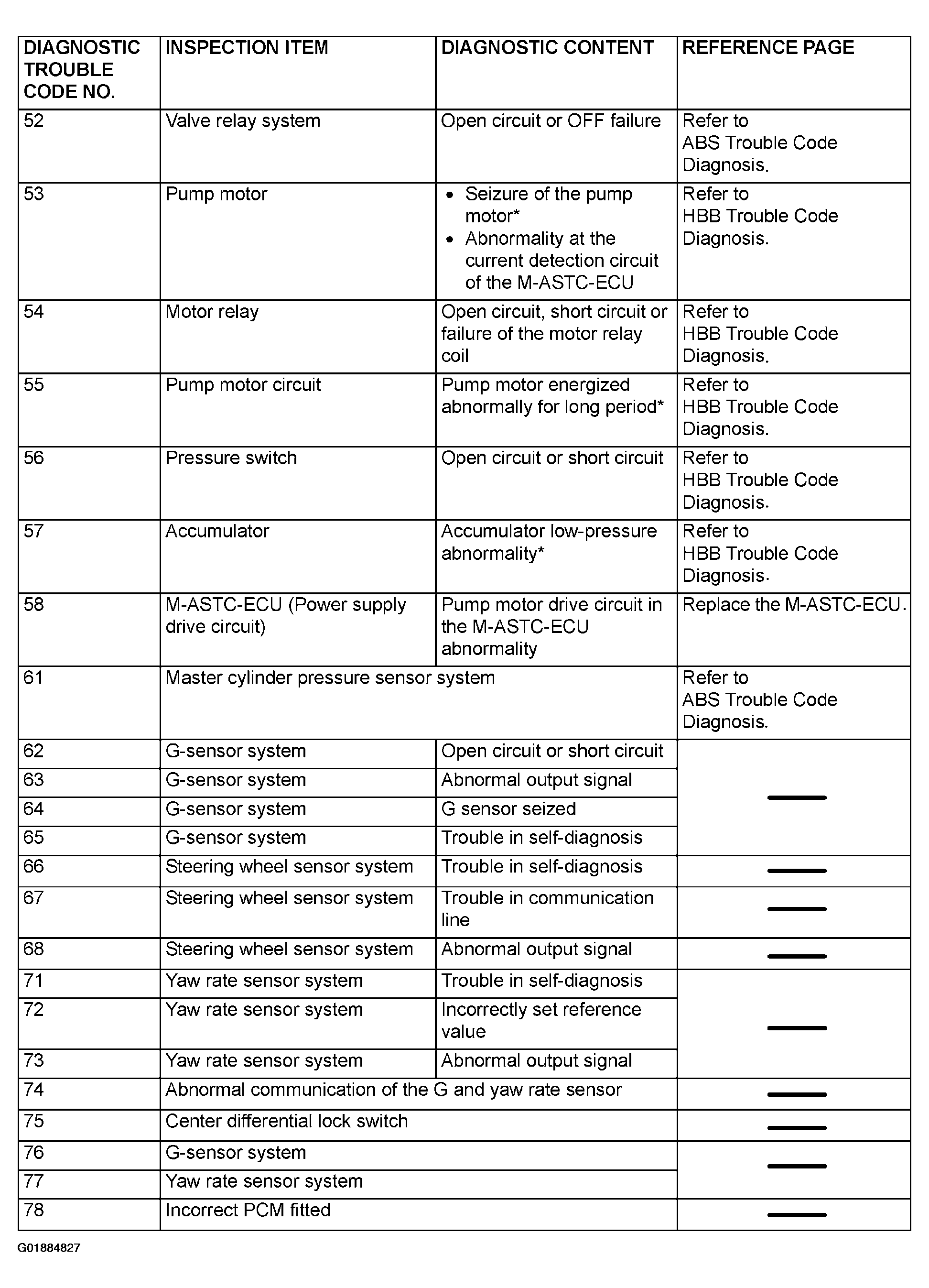

Fig 2: Diagnostic Trouble Code Chart (2 Of 3)
G01884827Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

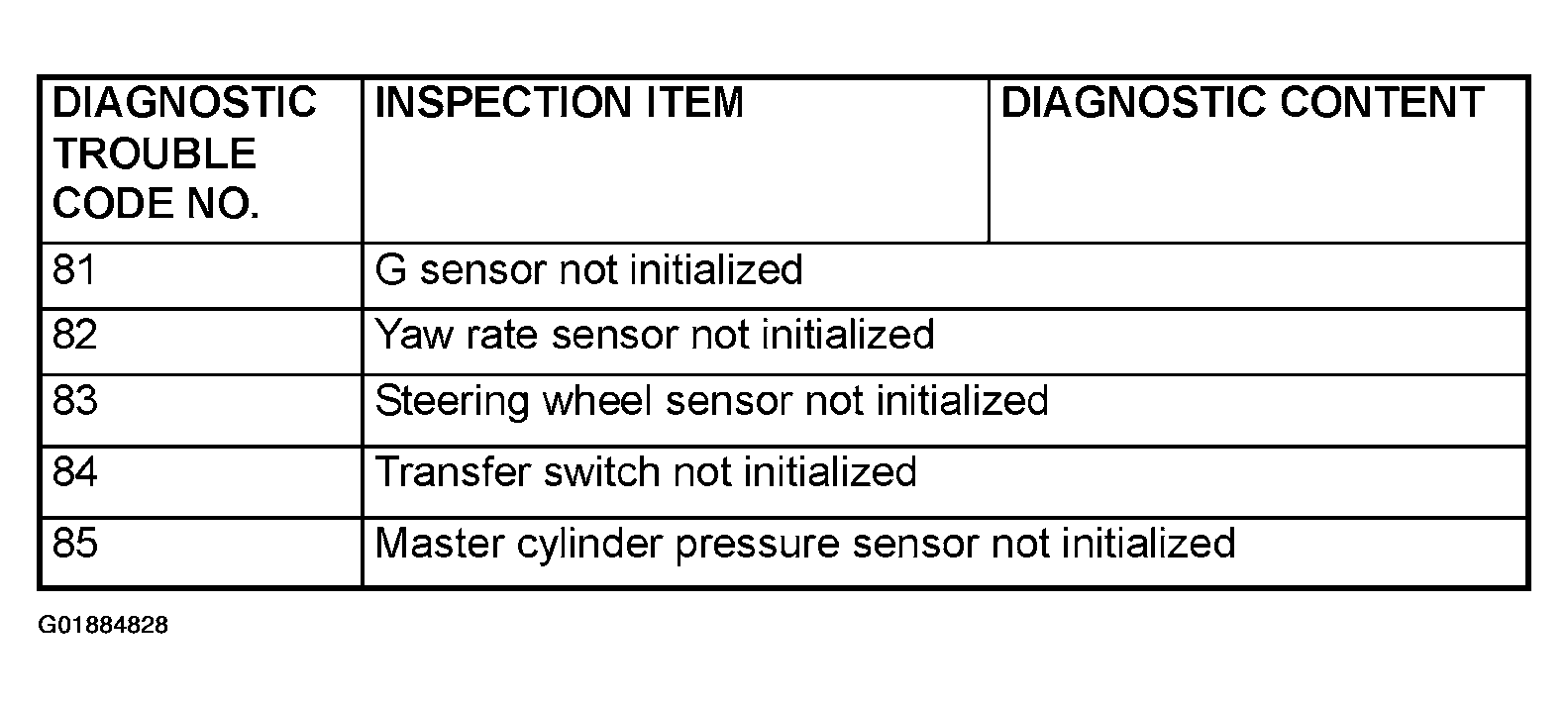

Fig 3: Diagnostic Trouble Code Chart (3 Of 3)
G01884828Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
