Traction Control System (TCL)
>>
M-ASTC Control Unit (M-ASTC-Ecu)
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

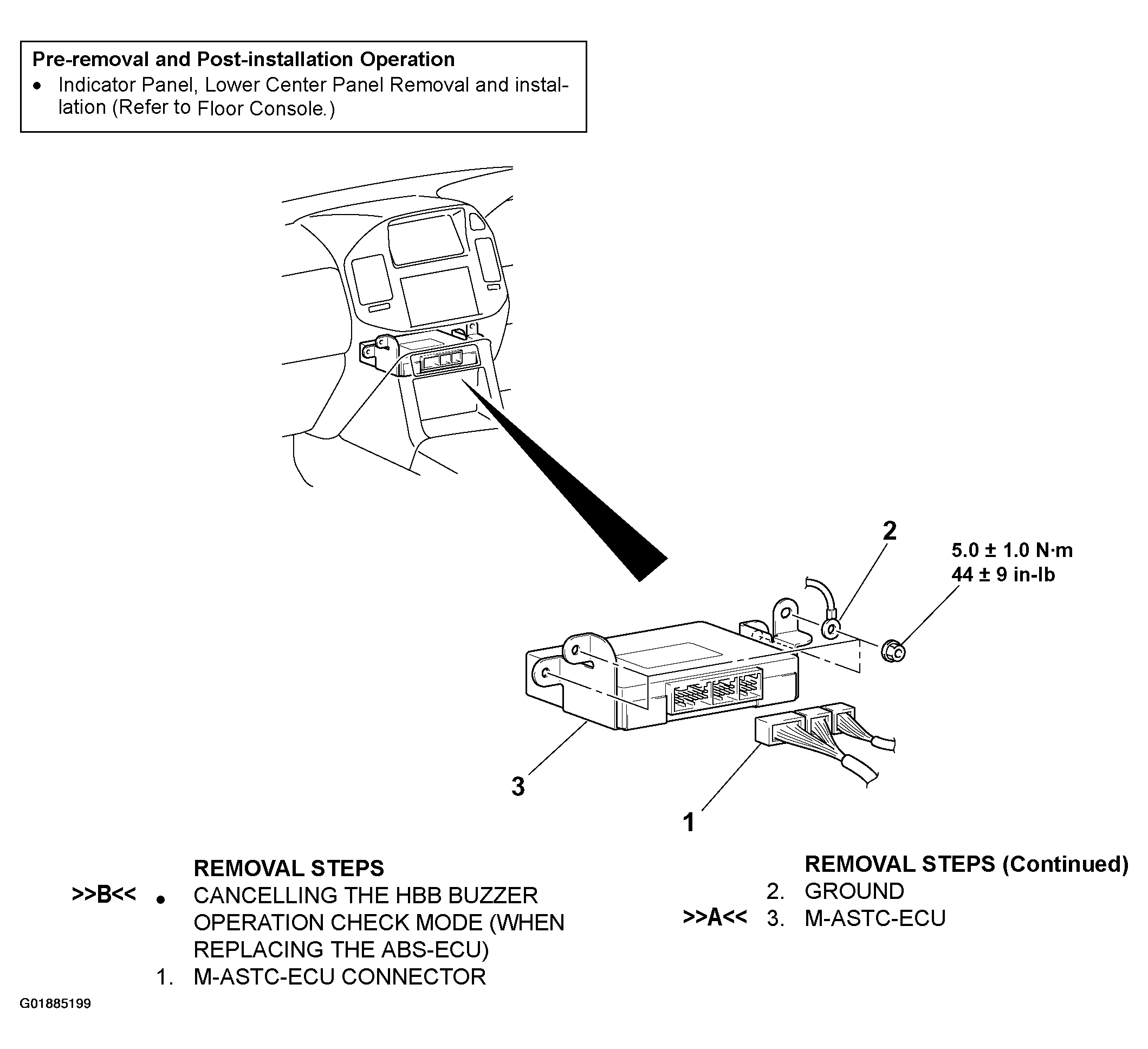

Fig 1: Removing & Installing M-ASTC Control Unit (M-ASTC-ECU)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
