Traction Control System (TCL)
>>
General Description
>>
Construction Diagram
>>
Notes
Construction Diagram: Notes

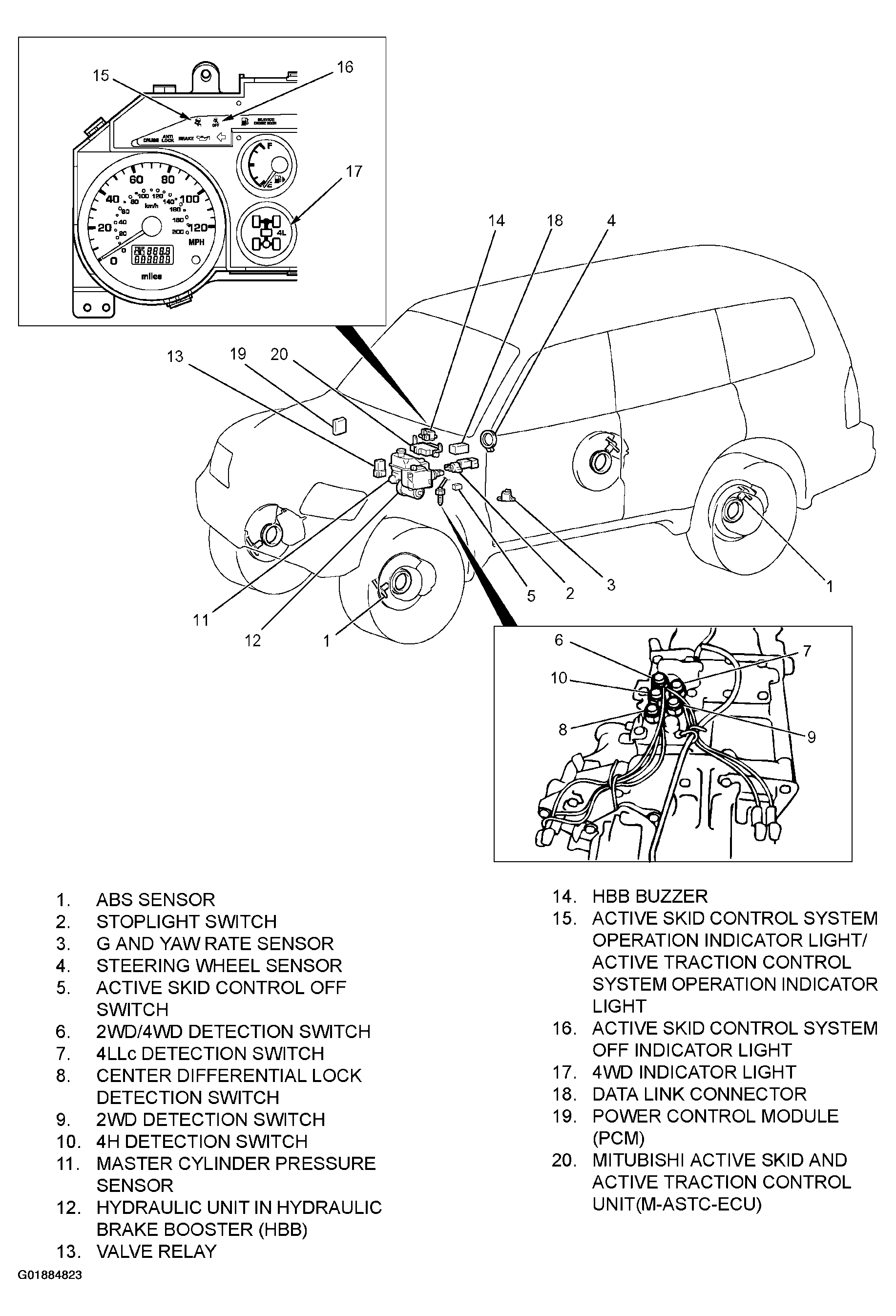

Fig 1: Traction Control System Construction Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
