DTC : 54 Control Relay system: Notes

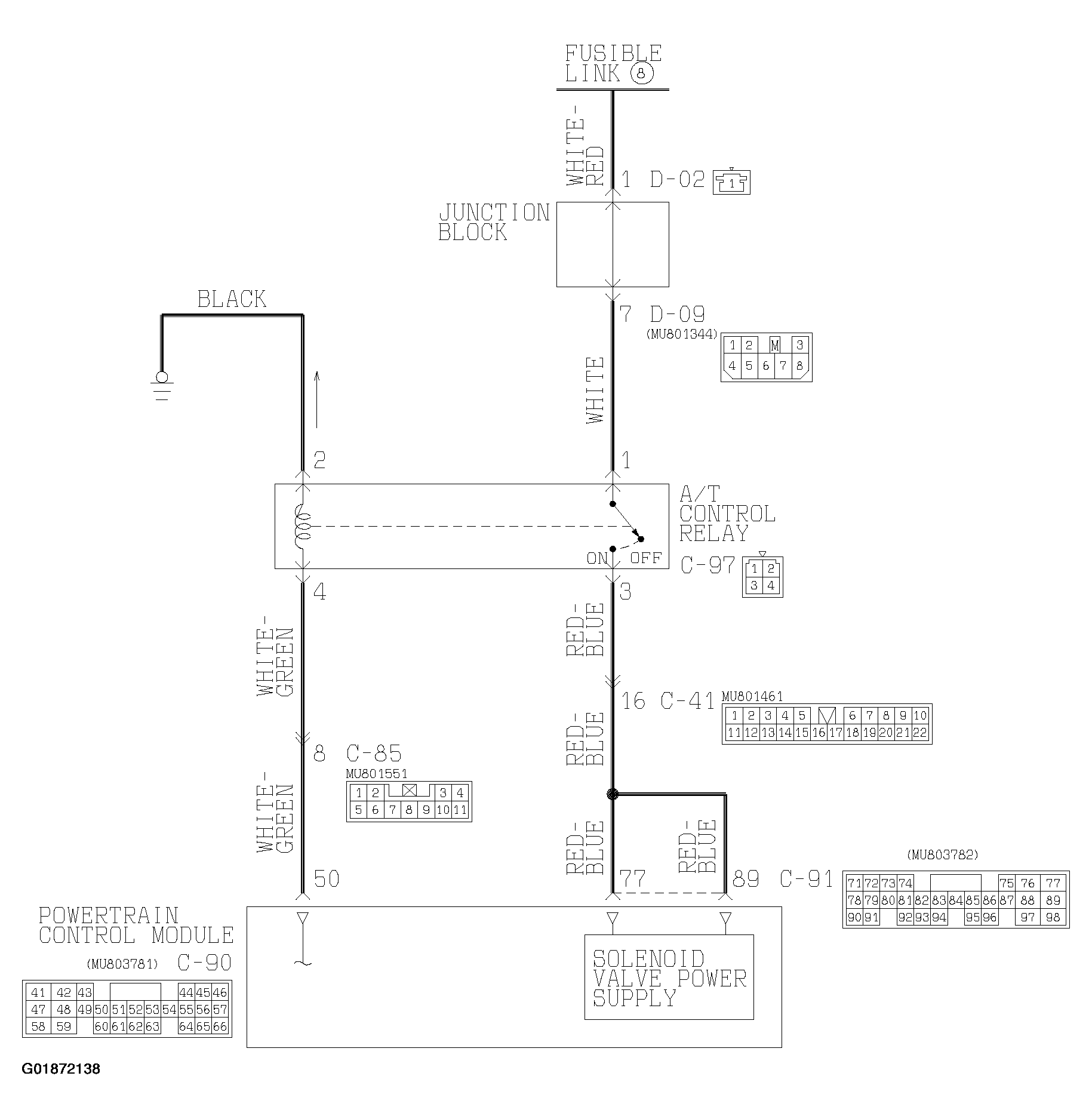

Fig 1: A/T Control Relay System Circuit (1 Of 2)
G01872138Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: A/T Control Relay System Circuit (2 Of 2)
G01872139Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
