>> B<< Transmission Control Cable Assembly Installation

  1. Shift the selector lever to the "N" position.
  2. Place the transmission side lever in the "N" position.
  3. Connect the transmission control cable to the selector lever.
  4. Connect the upper lever to the transmission control cable.

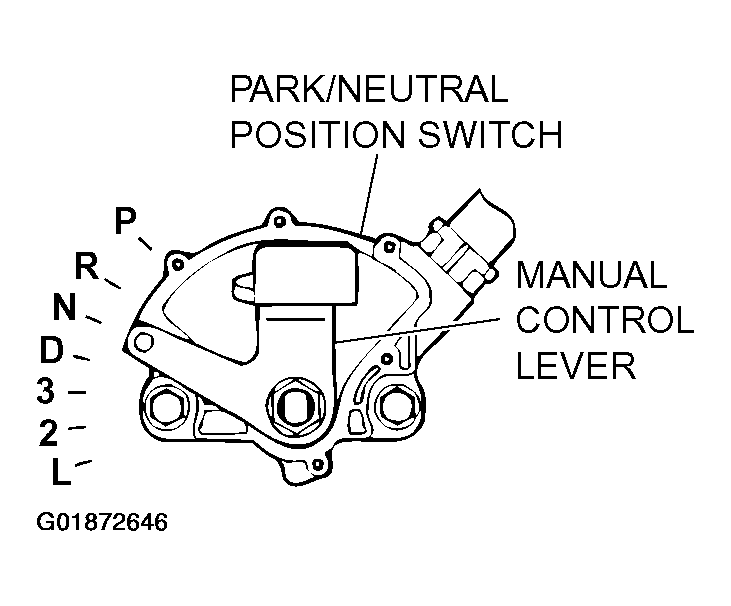

    Fig 1: Identifying Park/Neutral Position Switch Selector Lever Positions
    G01872646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Temporarily tighten the nut while pressing the transmission control upper lever lightly in the direction of the arrow.
  6. Tighten the nut with the specified torque.

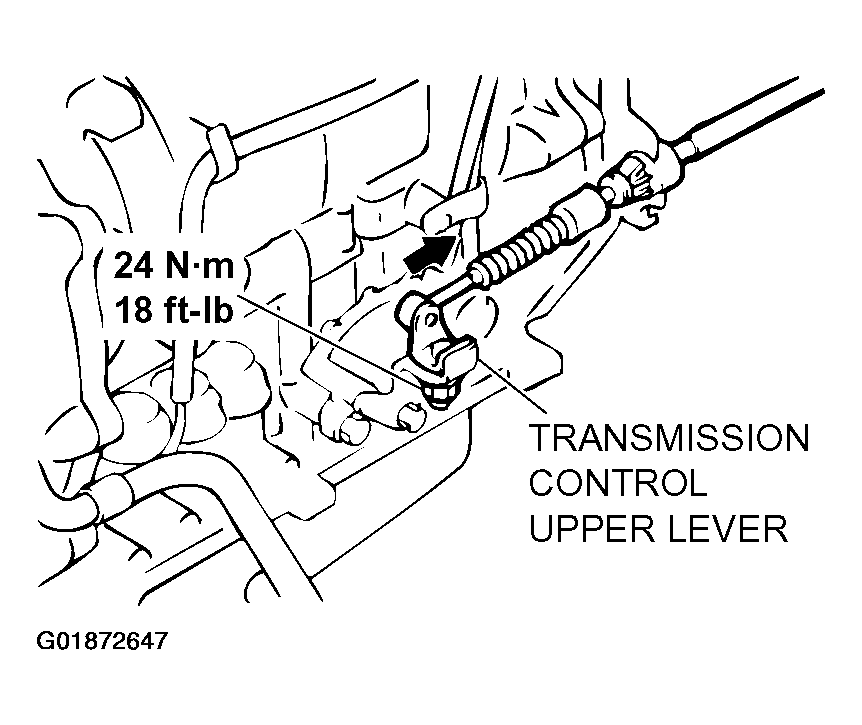

    Fig 2: Identifying Direction For Pressing Transmission Control Upper Lever For Tightening Nut
    G01872647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Tightening torque: 24 N.m (18 ft-lb)
