Automatic Transmission Servicing
>>
Powertrain Control Module (Pcm)
>>
Removal And Installation
Removal And Installation

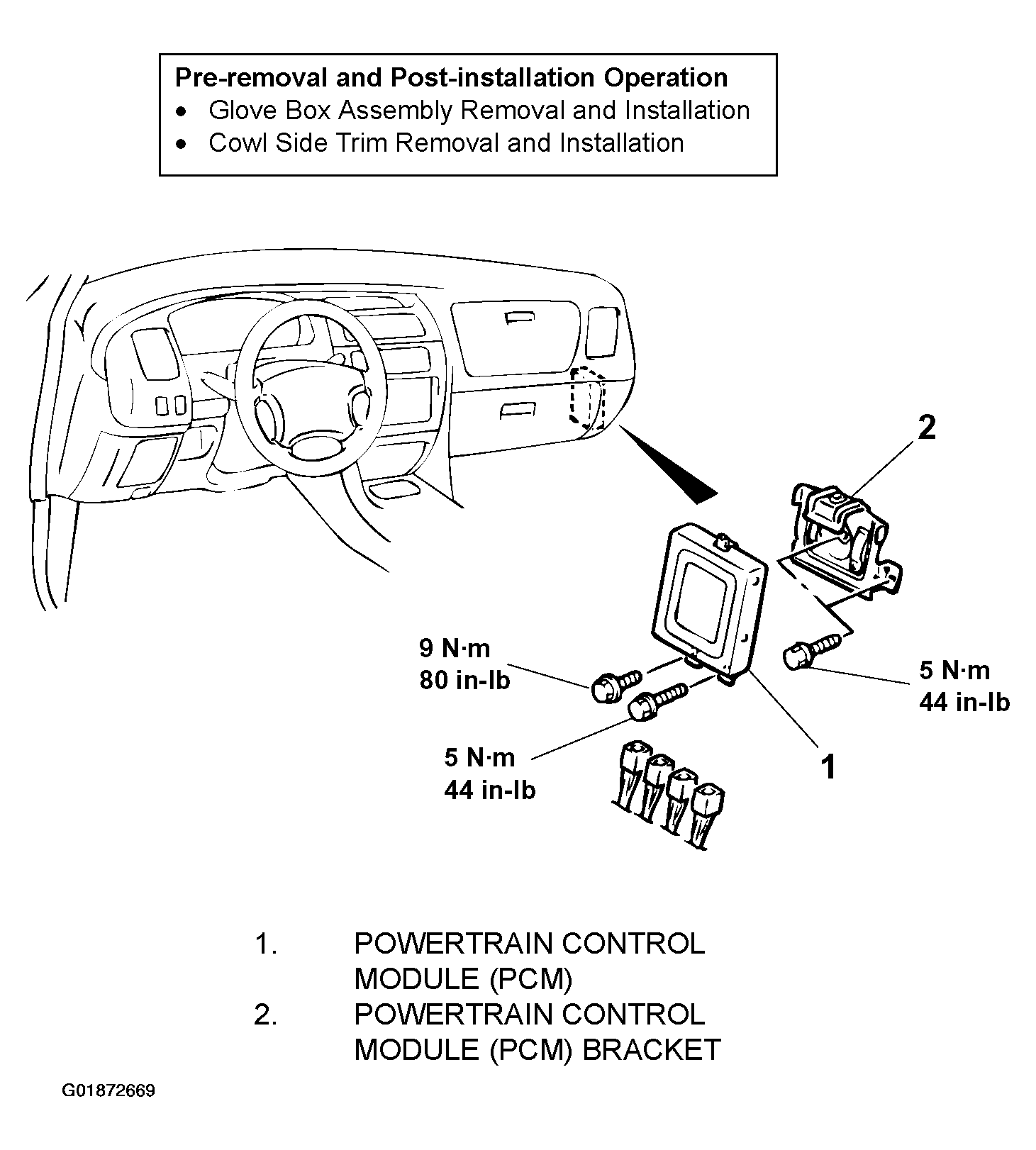

Fig 1: Exploded View And Torque Specification Of Powertrain Control Module (PCM)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
