Park/Neutral Position Switch Continuity Check

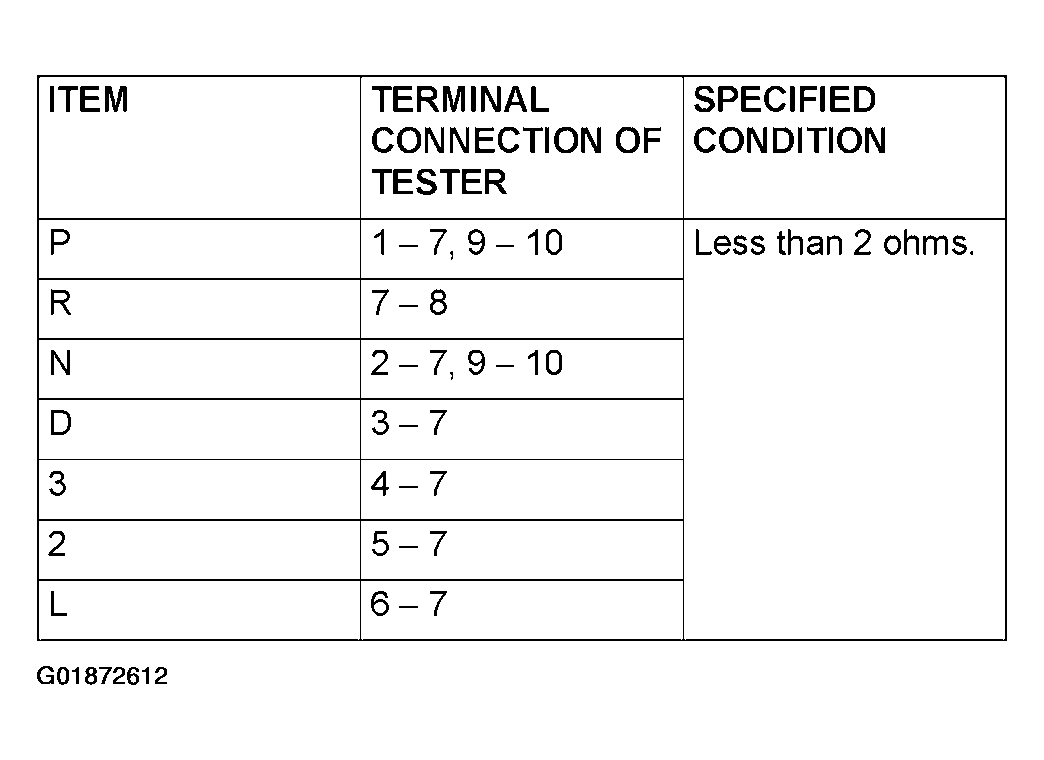

Fig 1: Park/Neutral Position Switch Continuity Chart
G01872612Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

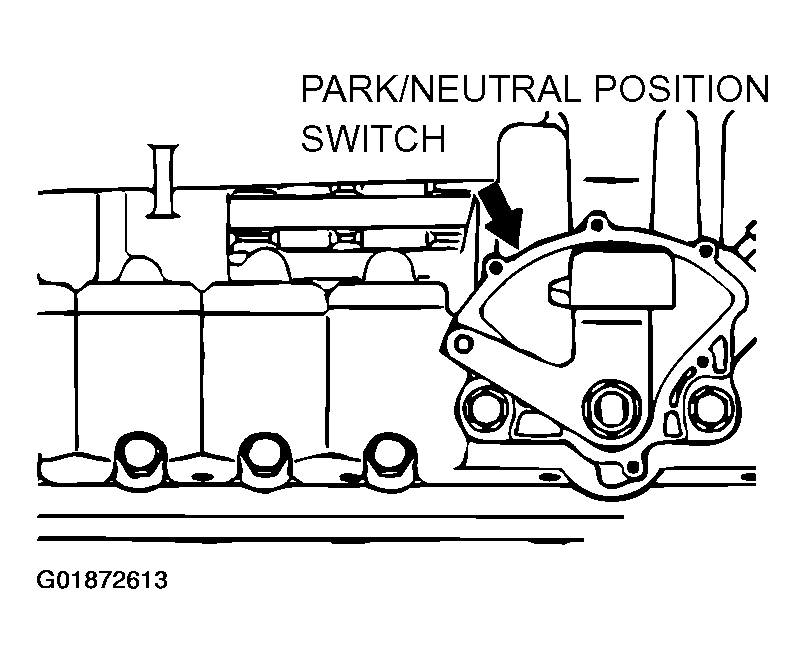

Fig 2: Locating Park/Neutral Position Switch
G01872613Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

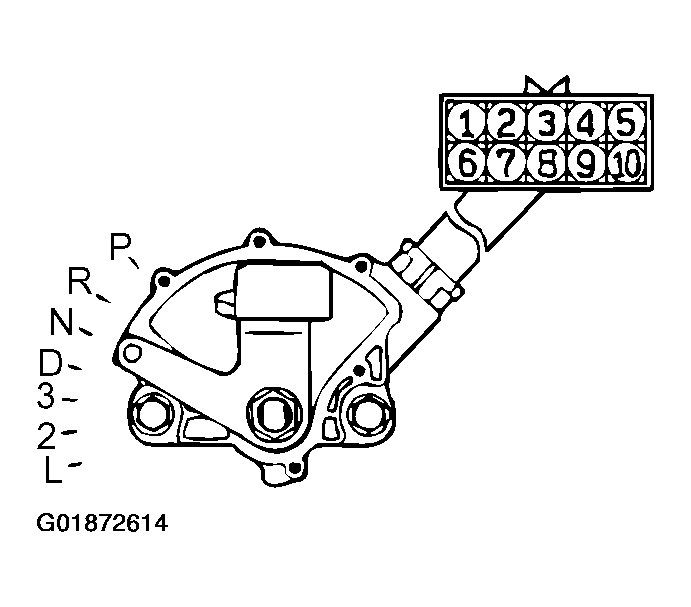

Fig 3: Identifying Park/Neutral Position Switch Terminals
G01872614Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
