Downshift Pattern

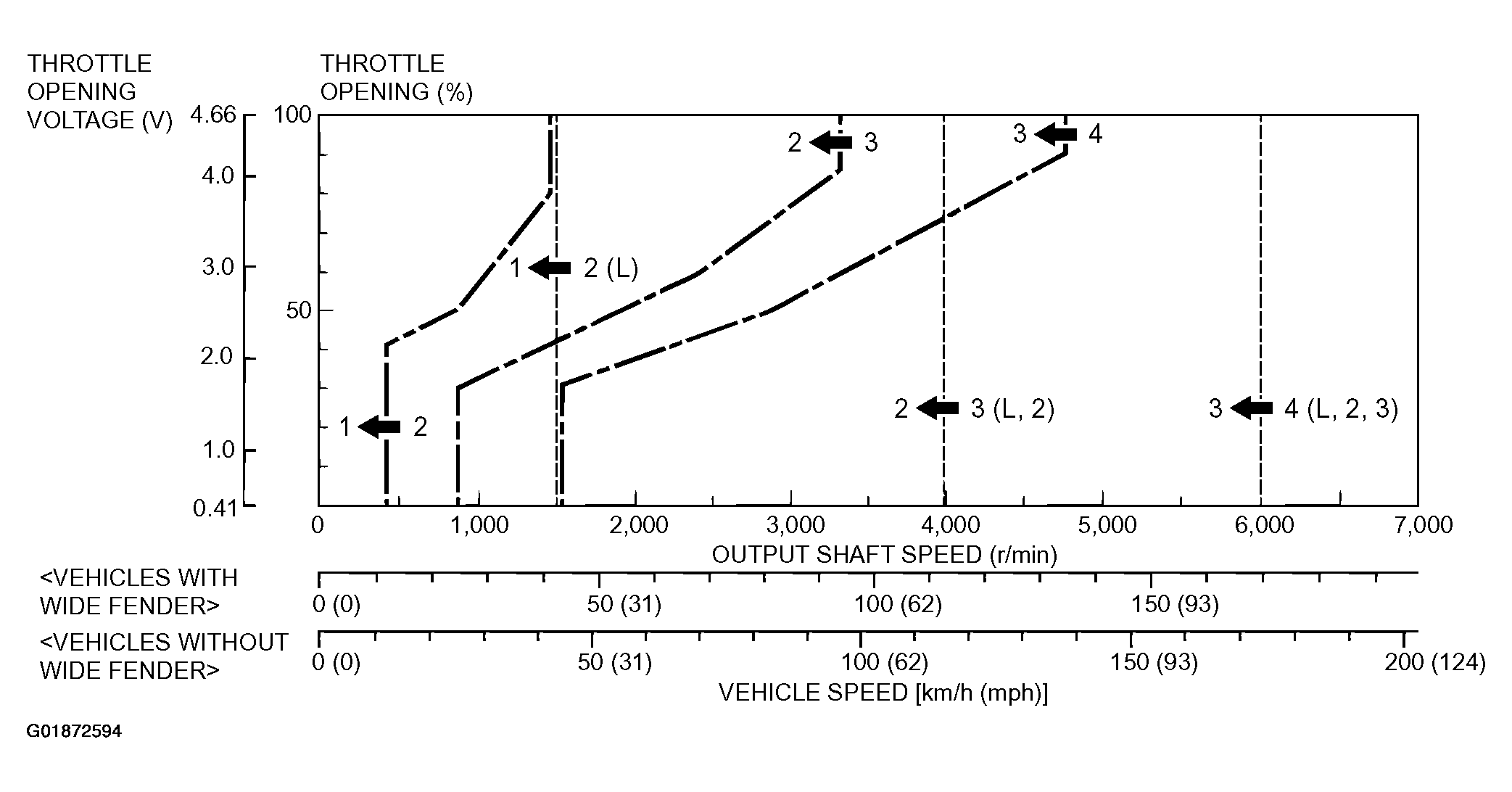

Fig 1: Shift Pattern Control (Downshift Pattern)
G01872594Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

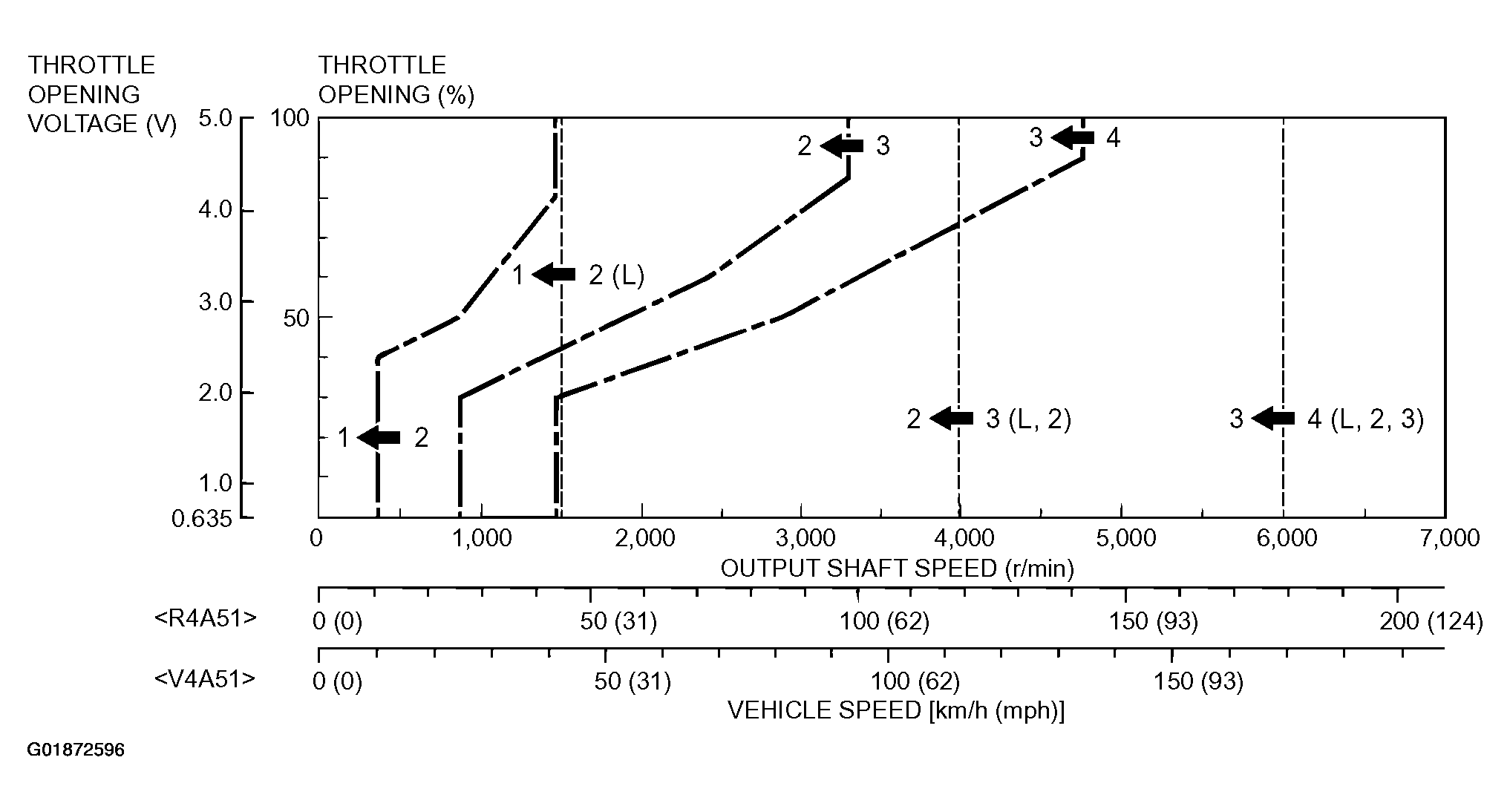

Fig 1: Shift Pattern Control (3.5L Engine) Downshift Pattern
G01872596Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
