Function Element Table

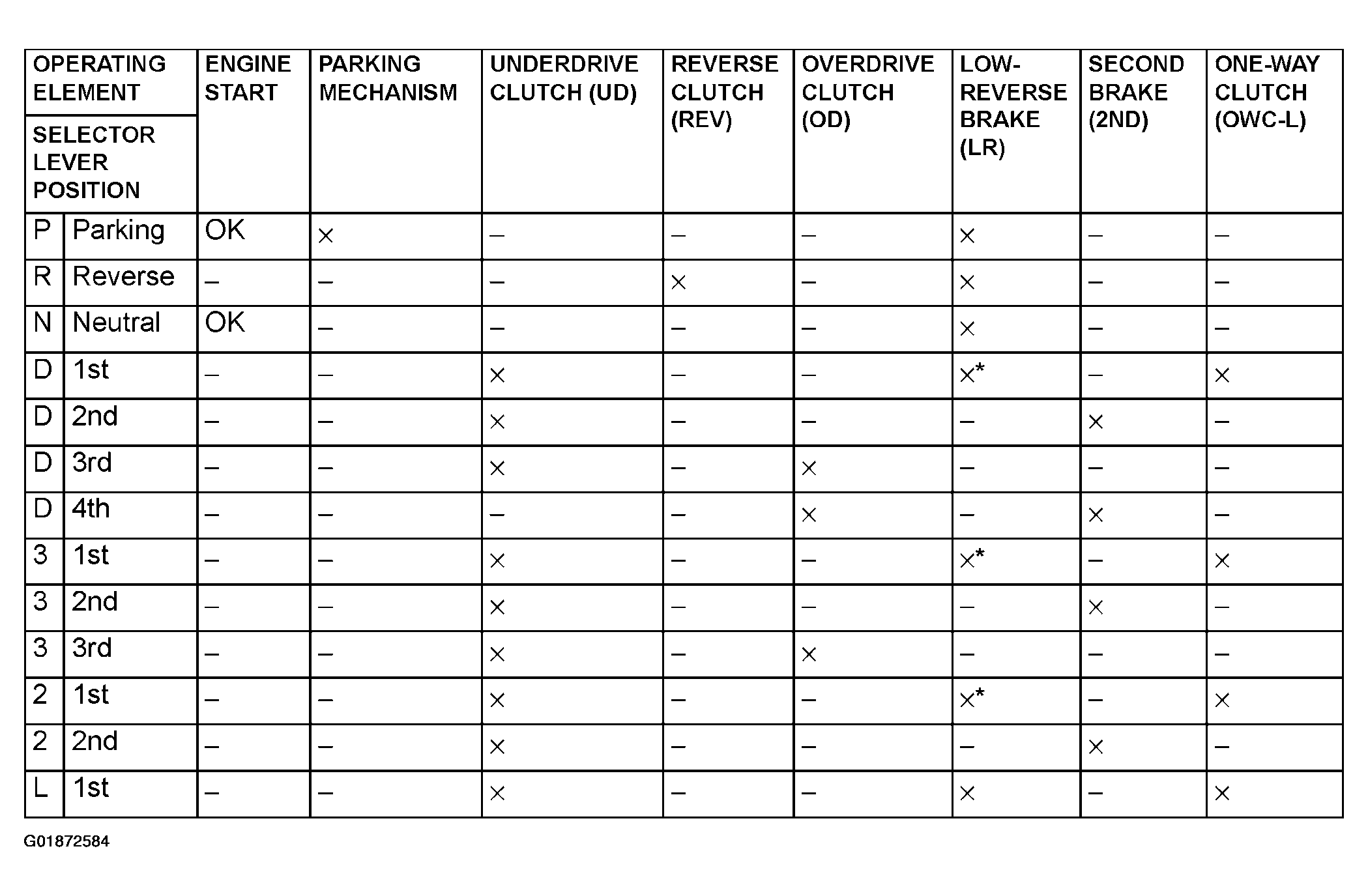

Fig 1: Automatic Transmission Function Element Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

x: Function element
Item marked with an * operate only when stopped [approximately 10 km/h (6.2mph) or less].
