Disassembly And Assembly: Notes

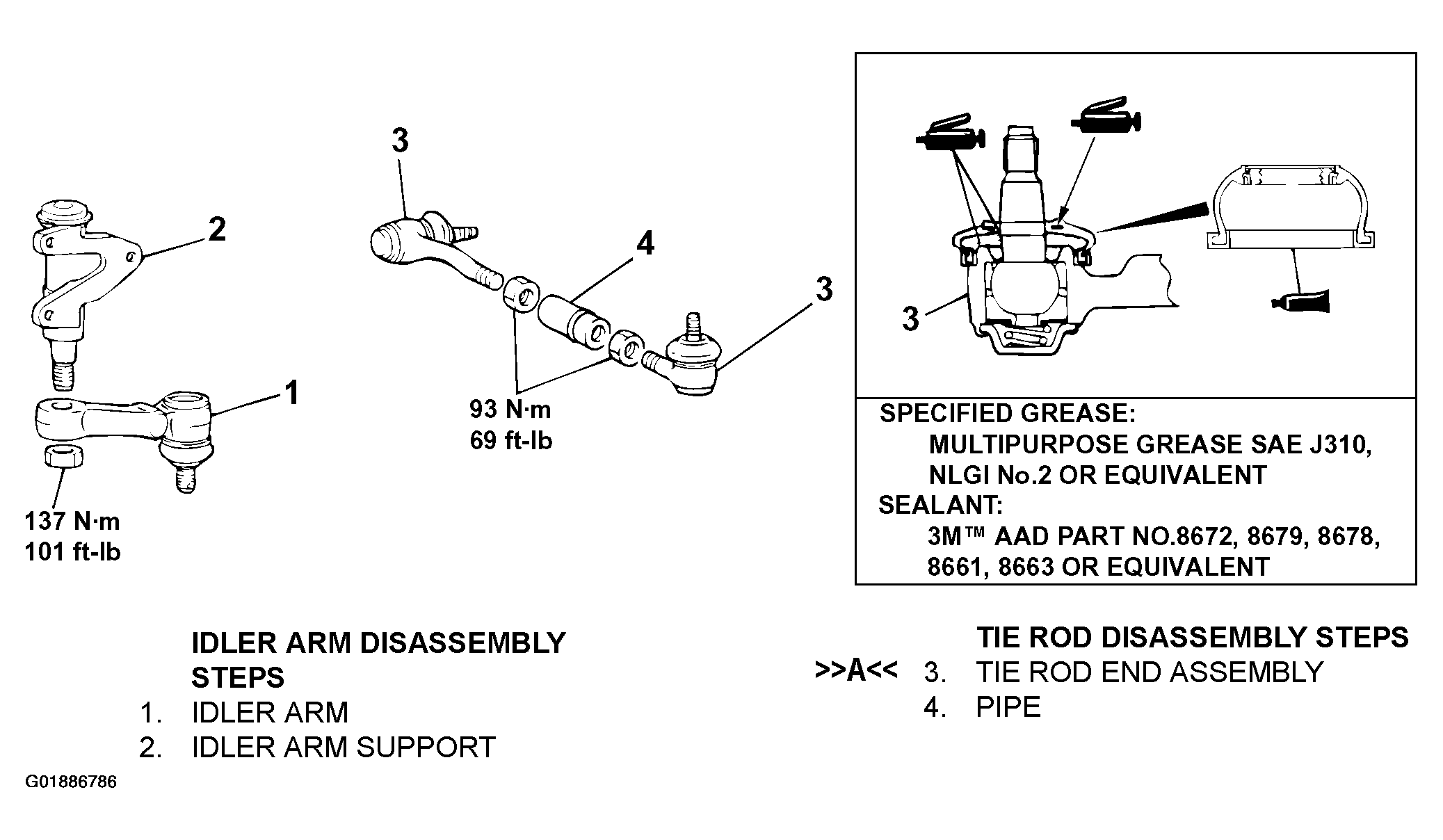

Fig 1: Disassembling And Assembling Steering Linkage

G01886786

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB990776: Front Axle Base
