Removal And Installation: Notes

WARNING: For vehicles with SRS, before removing the steering gear box refer to AIR BAG RESTRAINT SYSTEMS article. Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious driver injury.

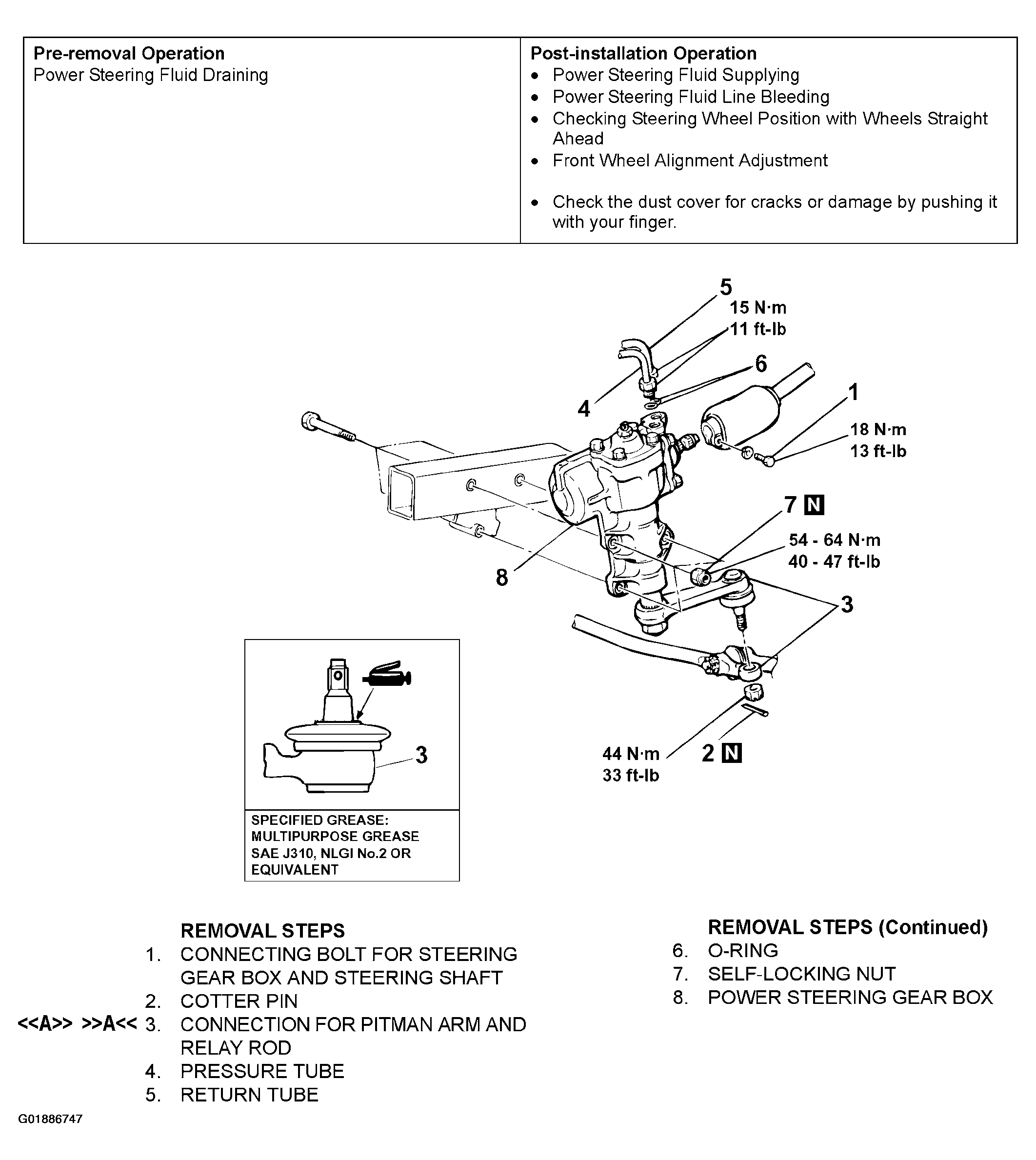

Fig 1: Power Steering Gear Box Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB991897: Ball Joint Remover
