Power Steering Gear Box Assembly: Assembly: Notes

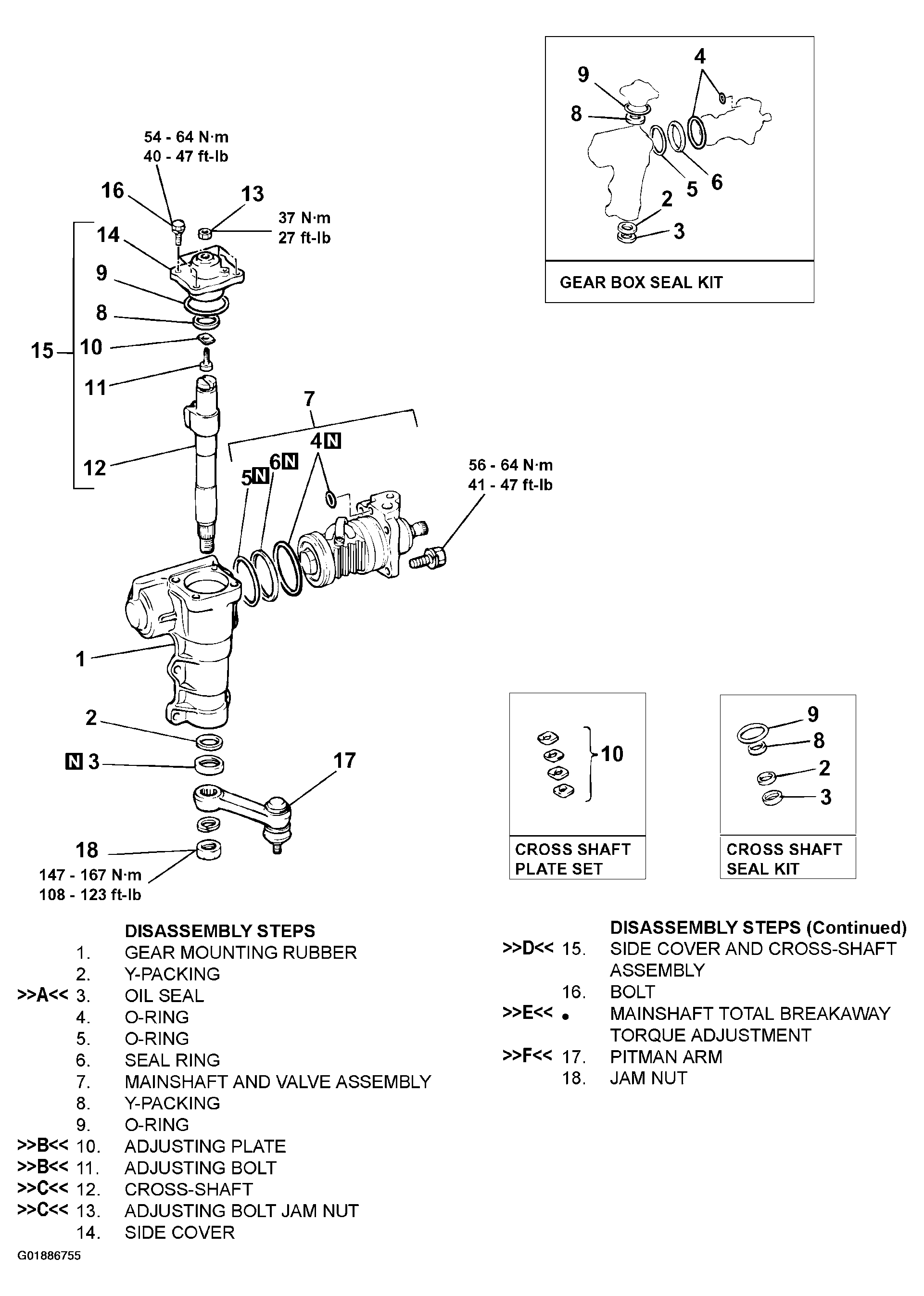

Fig 1: Assembling Power Steering Gear Box Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990228 or MB991006: Preload Socket
• MB990926: Installer Adapter
• MB990938: Bar (Snap-in type)
