Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

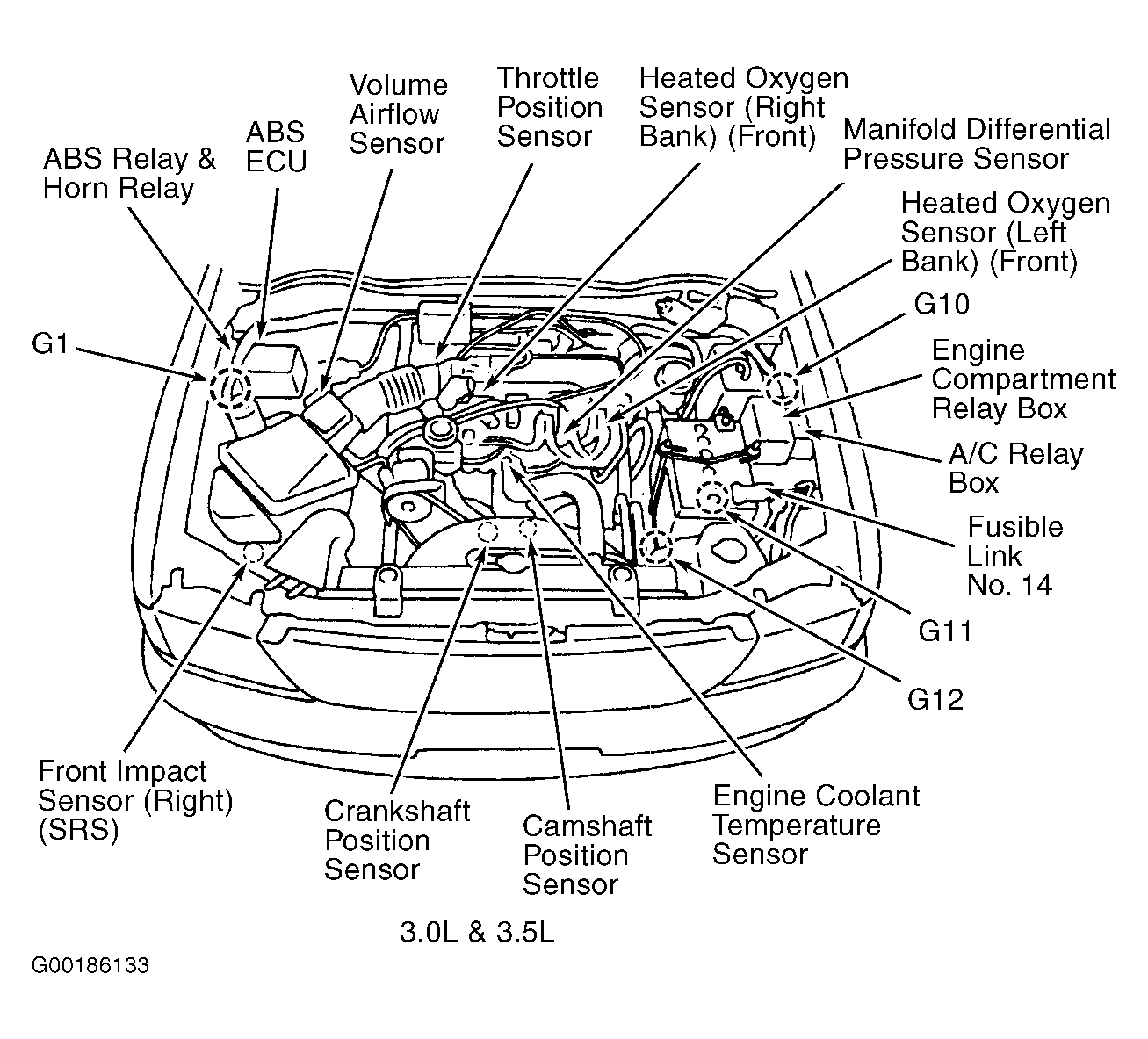

Fig 1: Engine Compartment (3.0L & 3.5L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

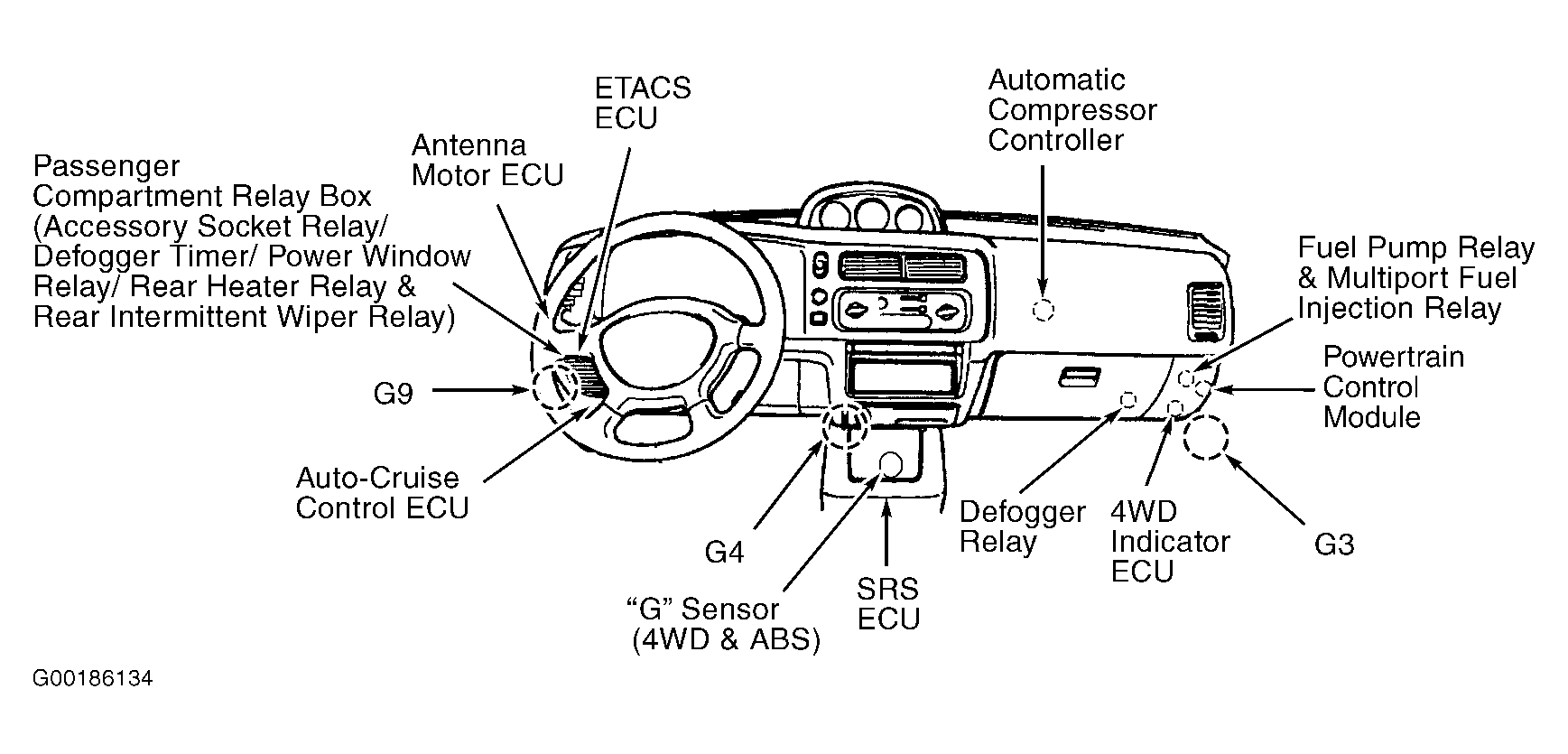

Fig 2: Dash

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

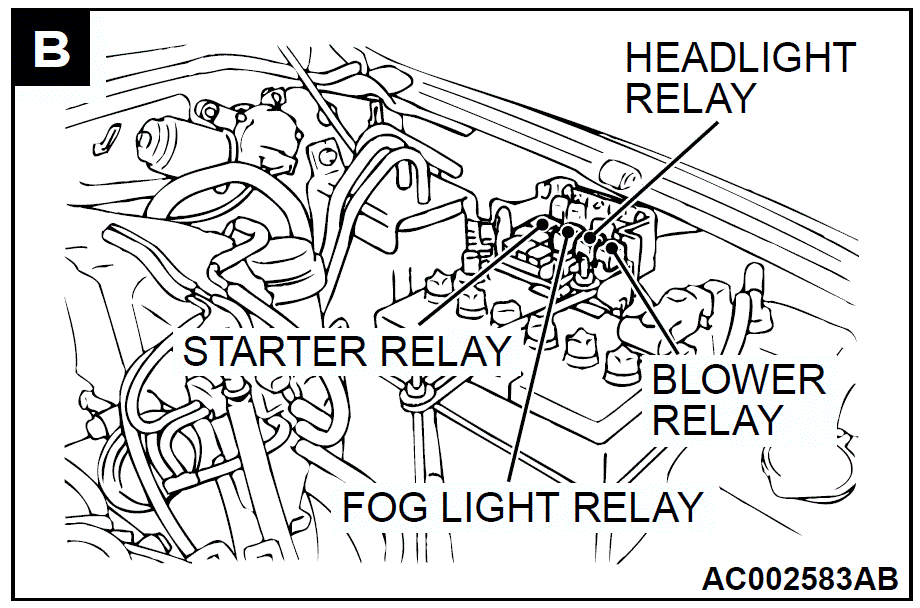

Fig 3: Engine Compartment Relay Box

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

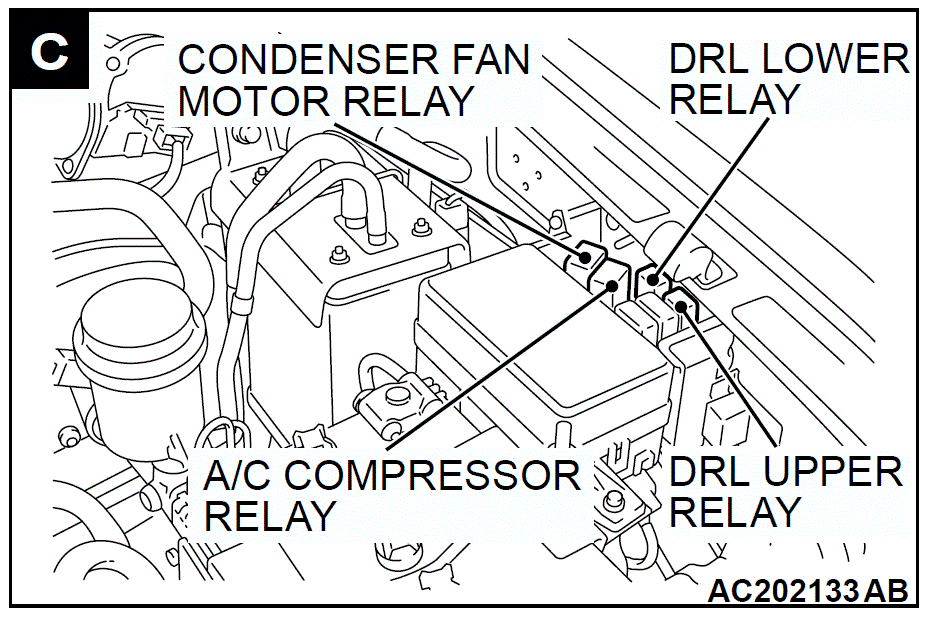

Fig 4: A/C Relay Box

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
