INSPECTION PROCEDURE 1: All Windows does not Open or Close Using the Power Window Main/Sub Switch.: Notes

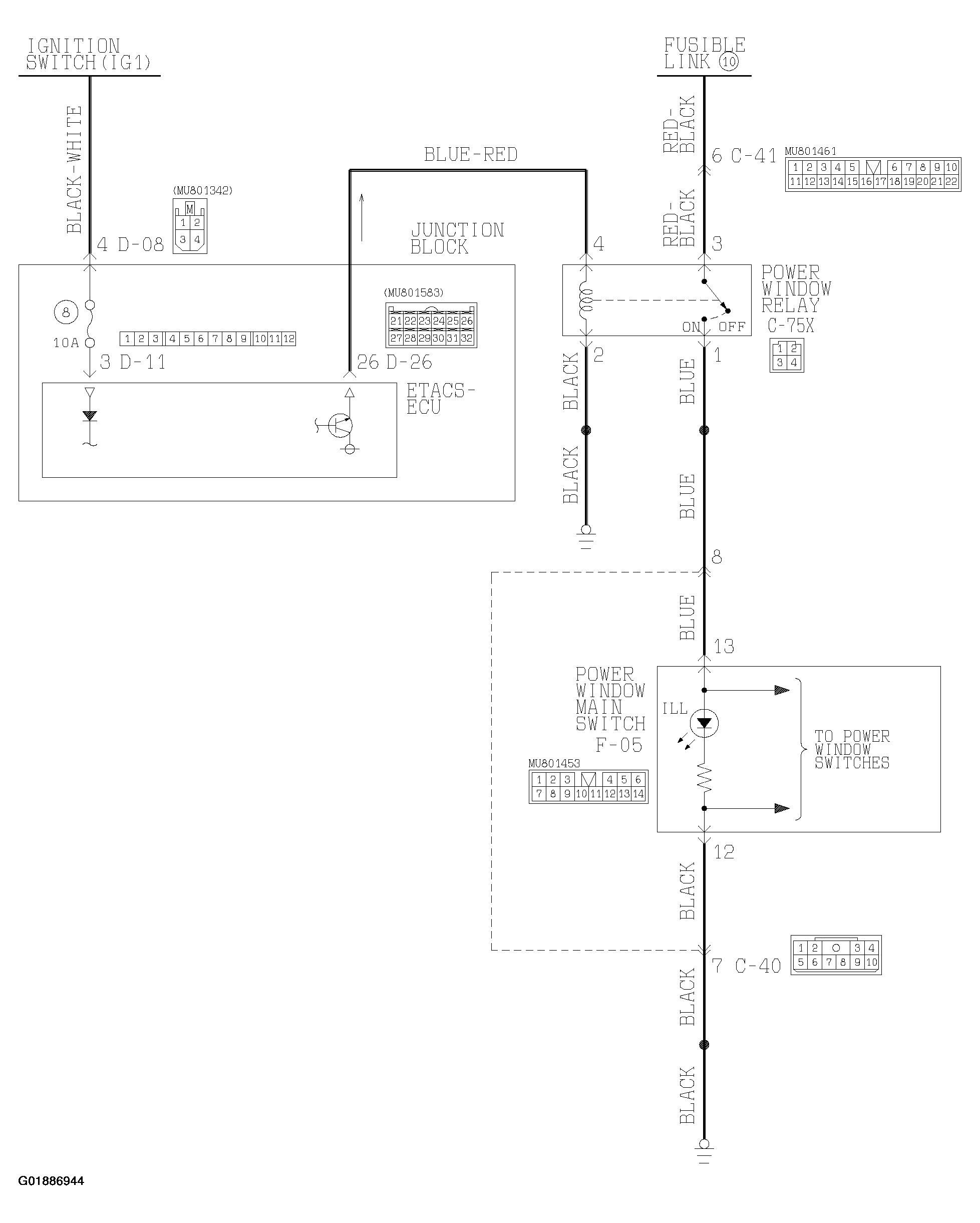

Fig 1: Power Window Switch Circuit
G01886944Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

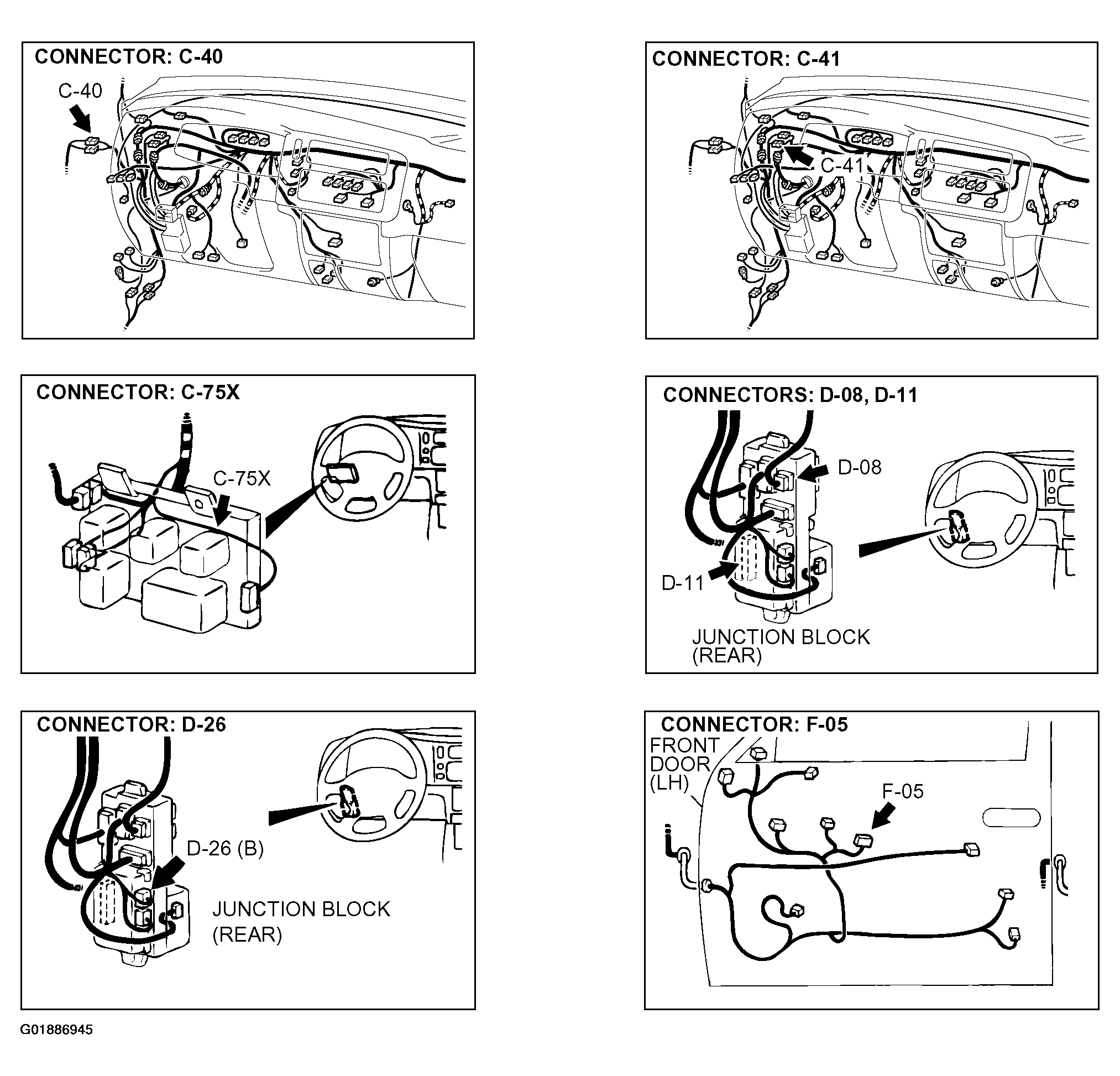

Fig 2: Identifying Connectors Of Power Window Switch Circuit
G01886945Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
