Measurement At The Receiver Terminals

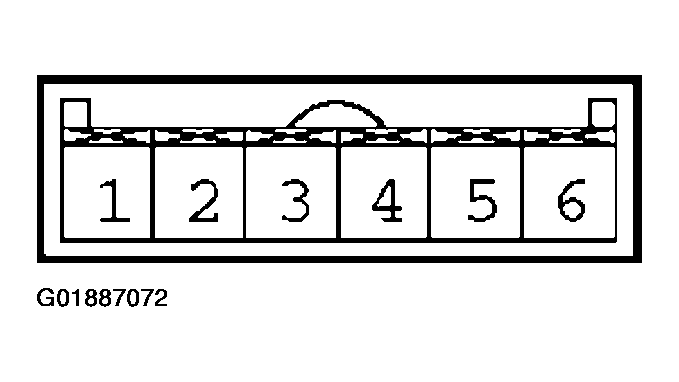

Fig 1: Identifying Receiver Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

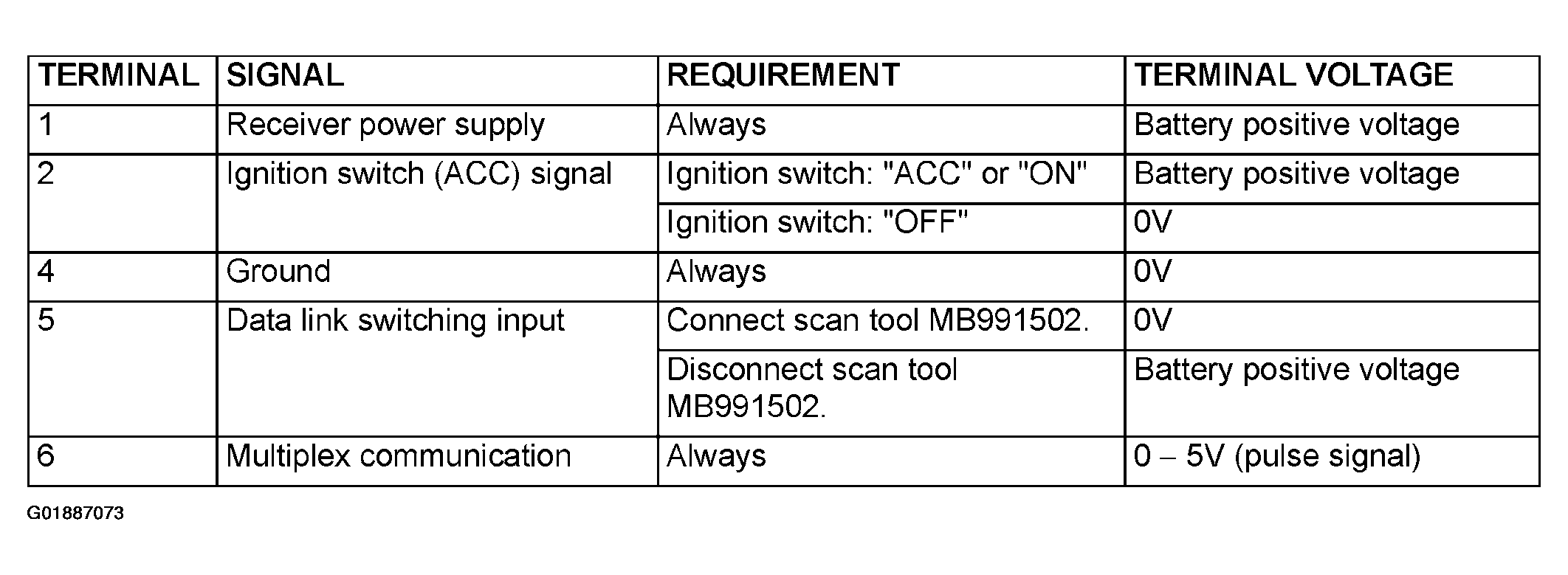

Fig 2: Receiver Terminals Reference Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
