Home >> Mitsubishi >> 2003 >> Montero Limited >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Overhaul >> Timing Belt >> Removal And Installation >> Notes

Removal And Installation: Notes

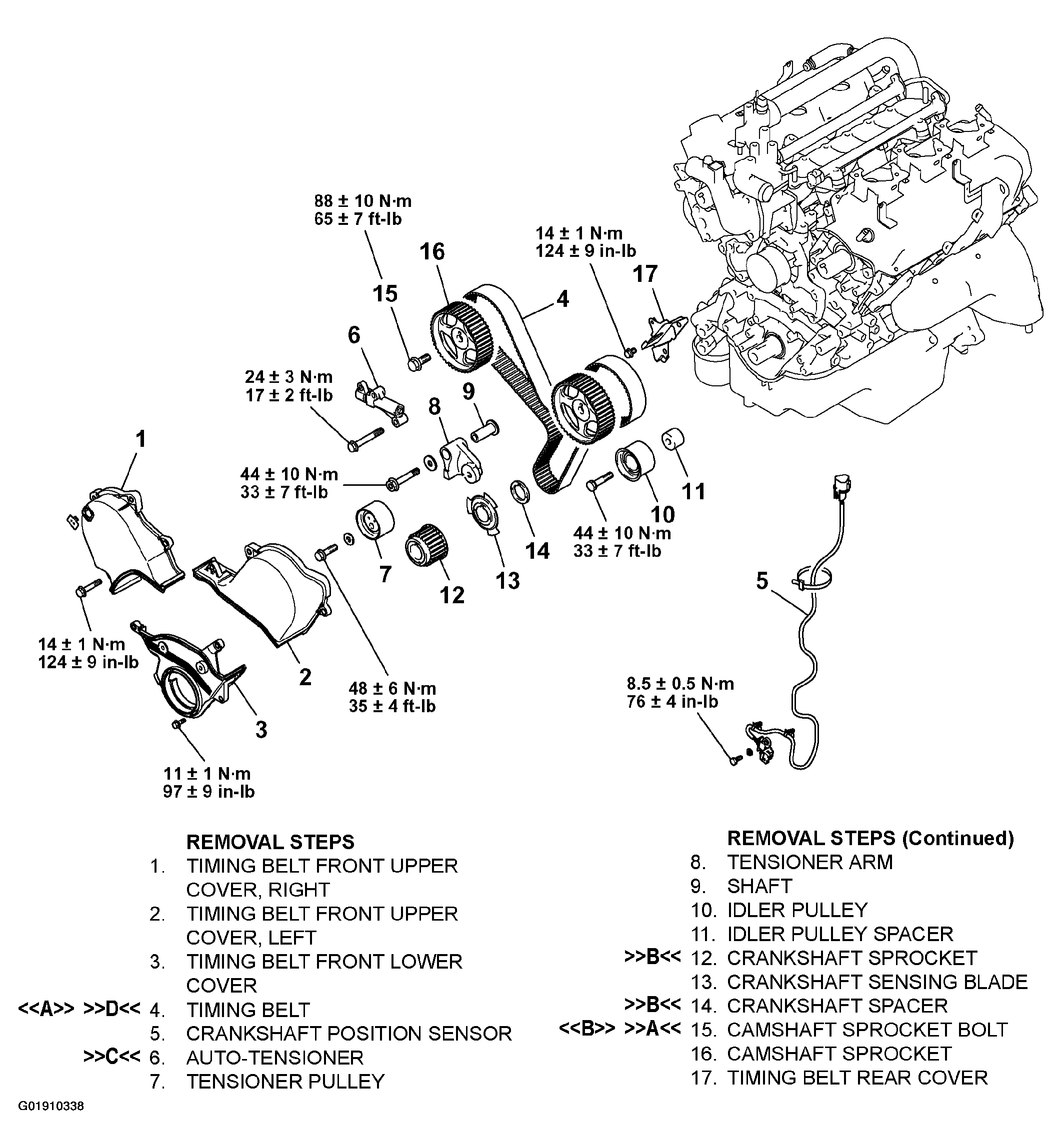

Fig 1: Removing/Installing Timing Belt
G01910338Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
