Removal & Installation: Notes

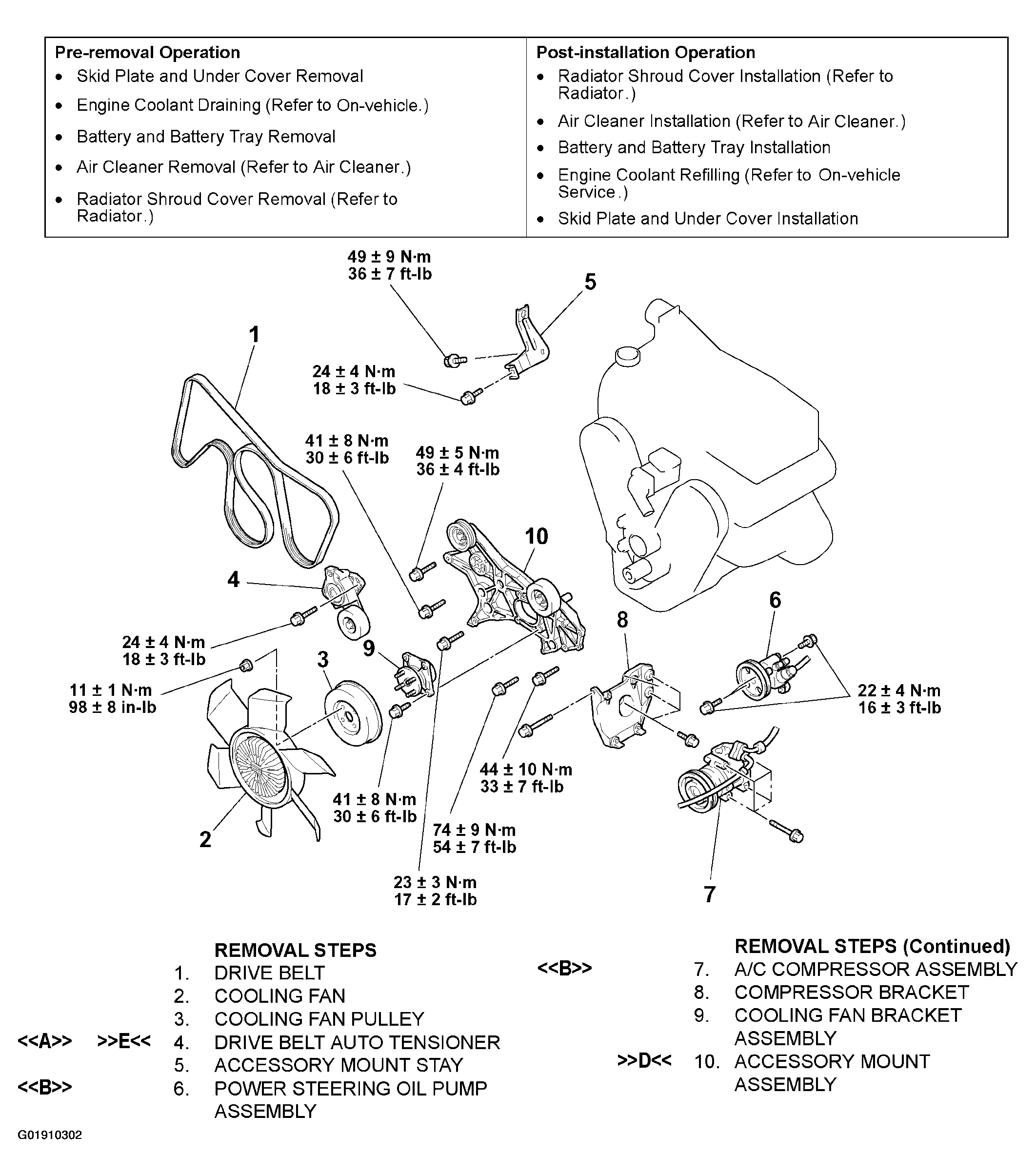

Fig 1: Removing & Installing Timing Belt & Torque Specifications (1 Of 2)
G01910302Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

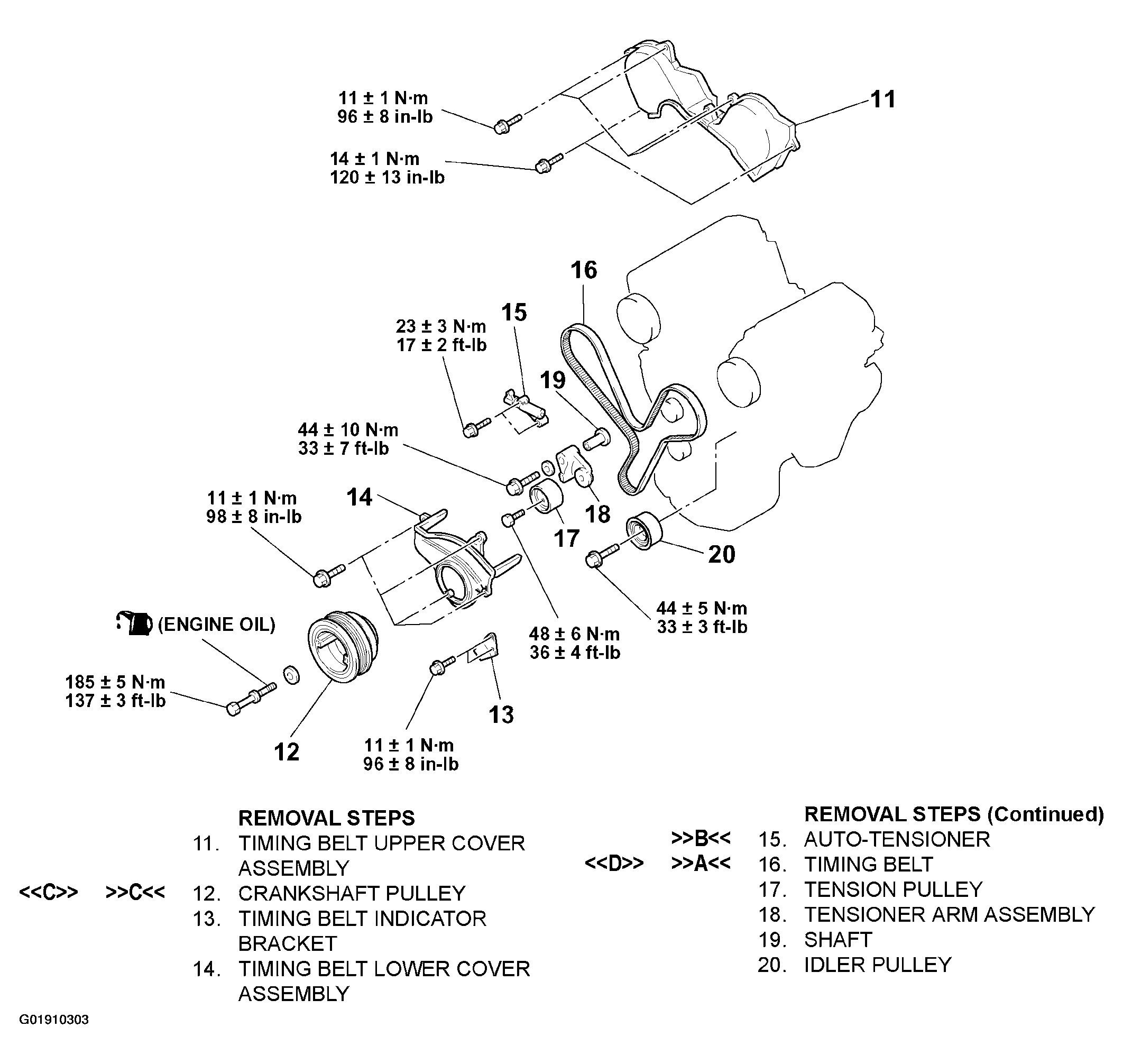

Fig 2: Removing & Installing Timing Belt & Torque Specifications (2 Of 2)
G01910303Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991800: Pulley Holder

MD991802: Pin B

MD998767: Tension Pulley Socket Wrench

MD998769: Crankshaft Pulley Spacer
