Fastener Tightening Specifications

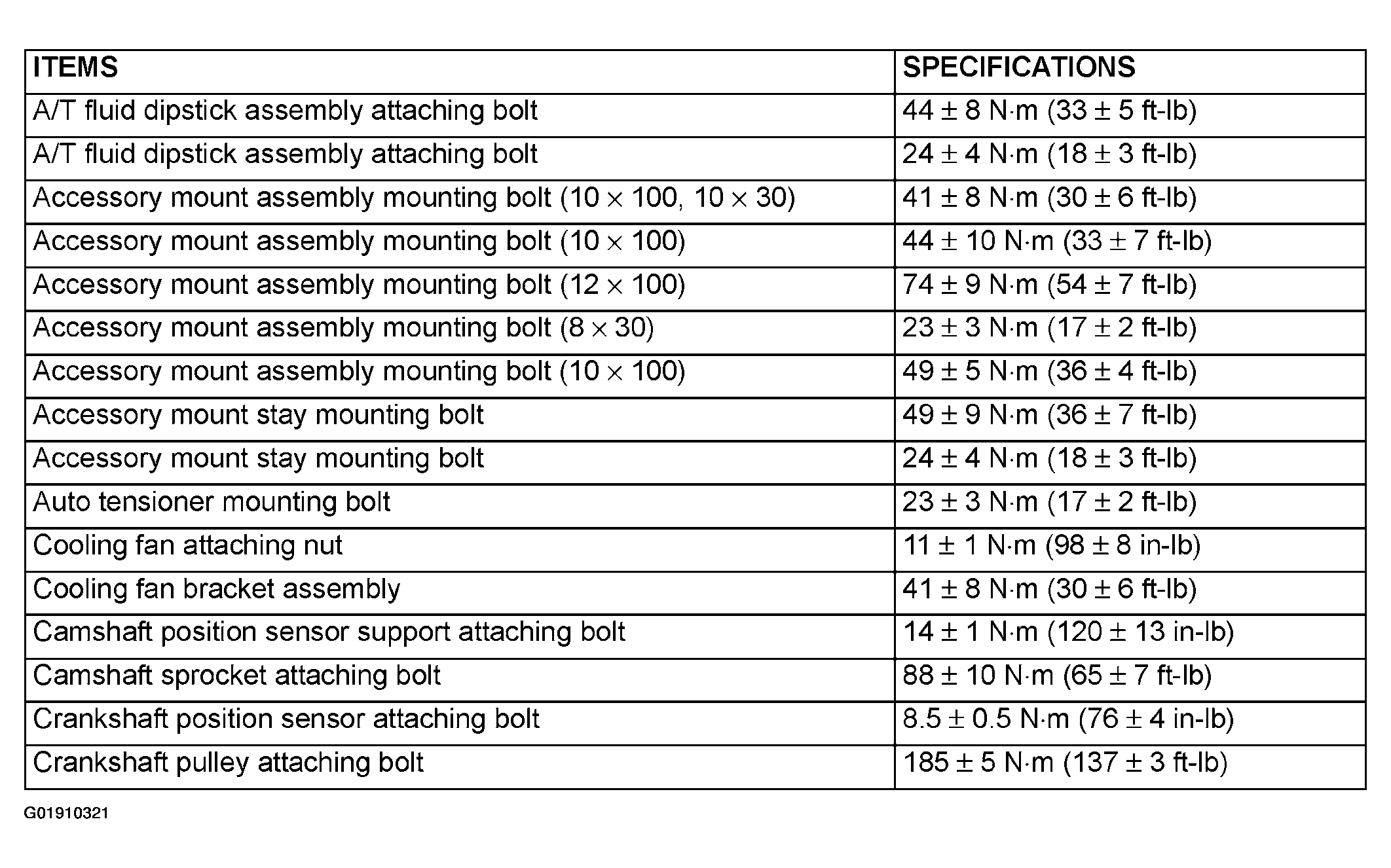

Fig 1: Fastener Torque Specifications Index (1 Of 2)
G01910321Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

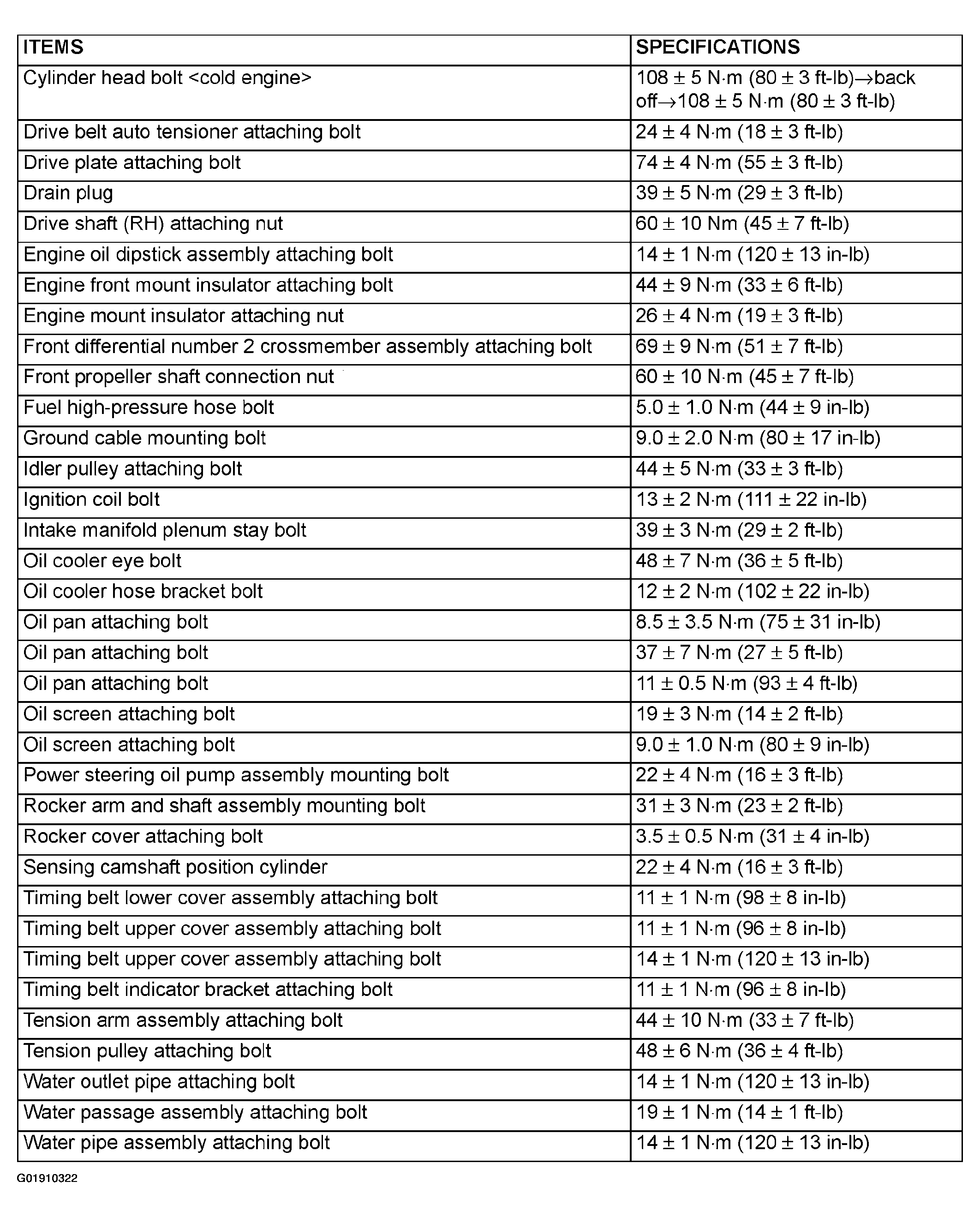

Fig 2: Fastener Torque Specifications Index (2 Of 2)
G01910322Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
