Abs Valve Relay Check

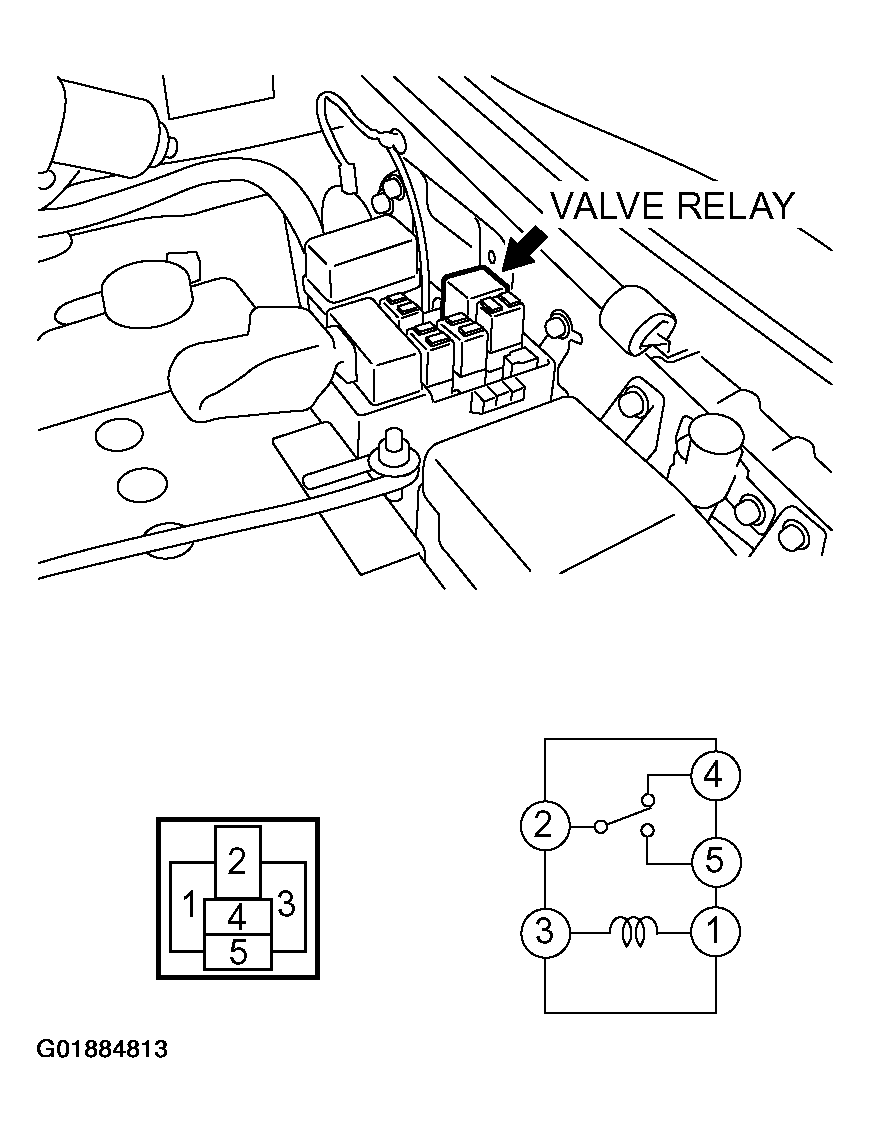

Fig 1: Checking ABS Valve Relay

G01884813

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

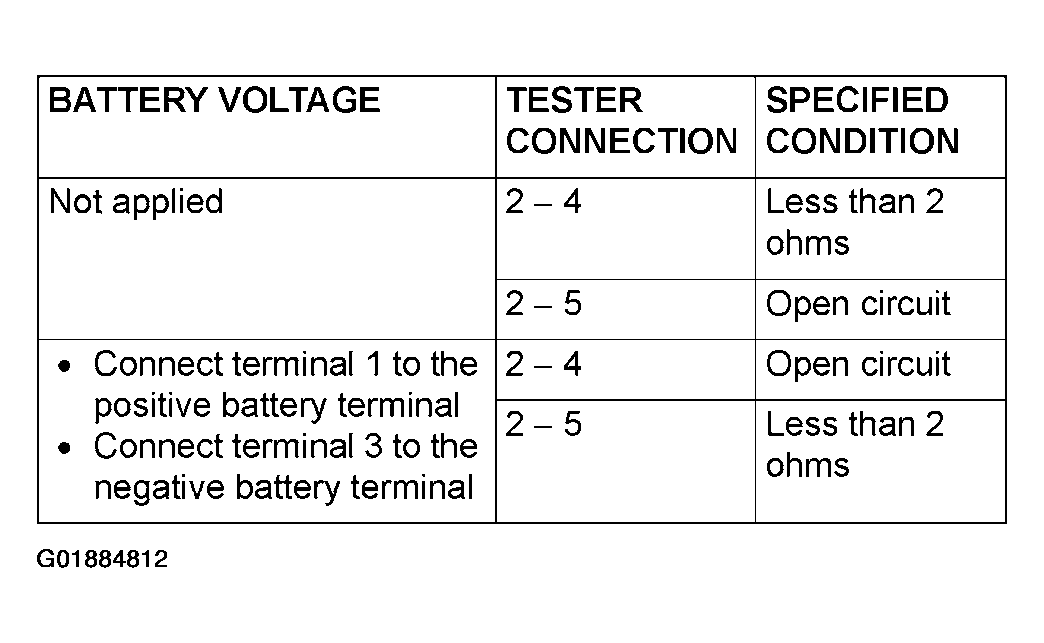

Fig 2: ABS Valve Relay Check Table

G01884812

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
