Disassembly And Assembly: Notes

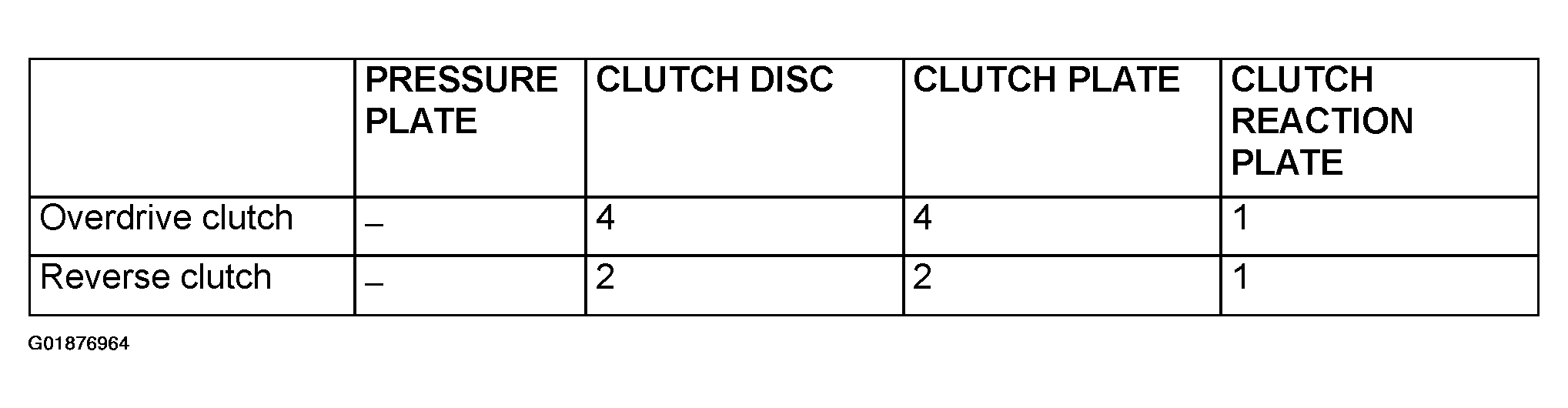

Fig 1: Reverse & Overdrive Clutch Discs & Plates Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

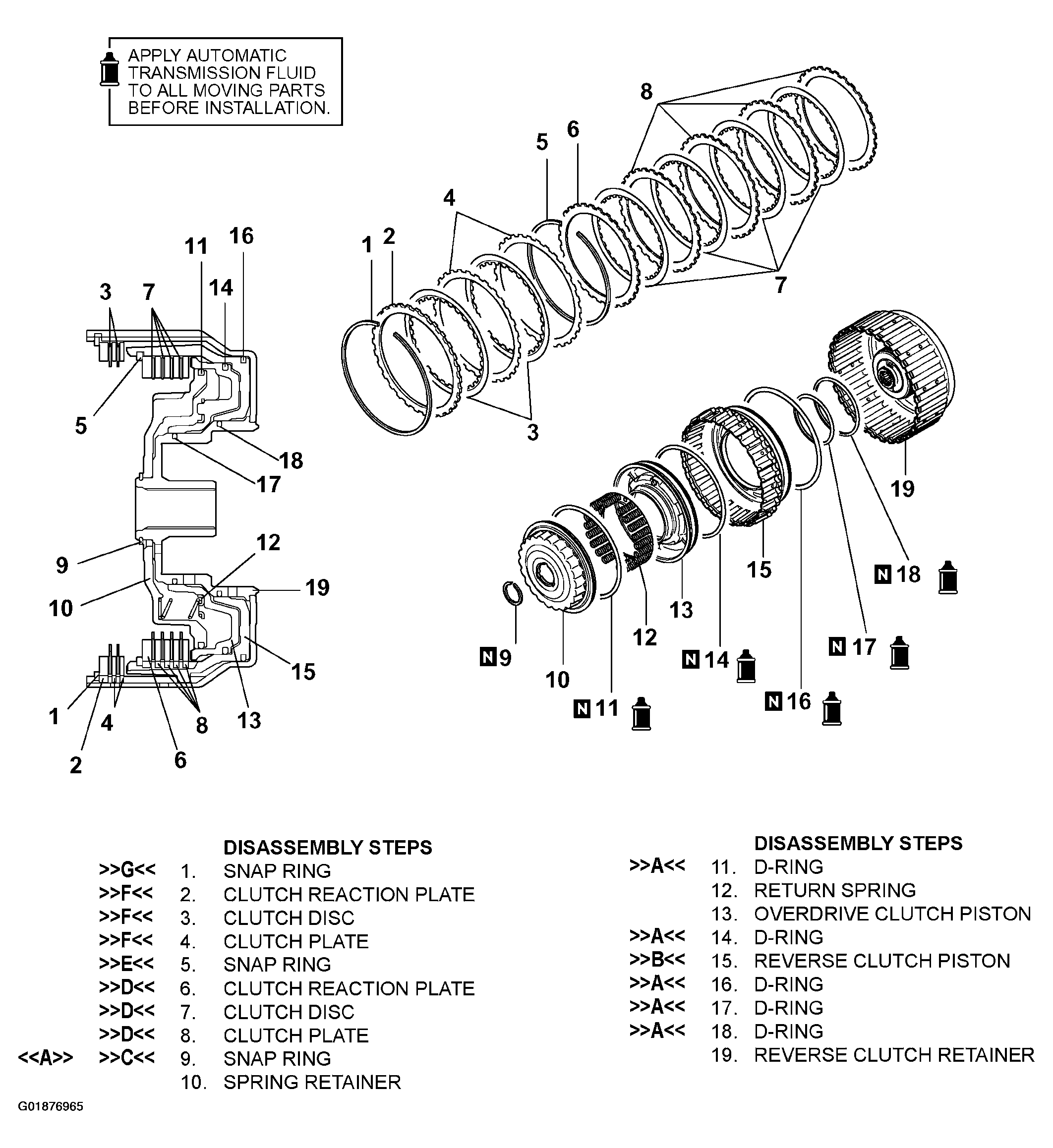

Fig 2: Disassembly & Assembly Of Reverse & Overdrive Clutch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991628: Spring Compressor
• MB991790: Spring Compressor
• MD998924: Spring Compressor Retainer
• MD999590: Spring Compressor
