Pcm Terminal Resistance And Continuity Inspection Chart

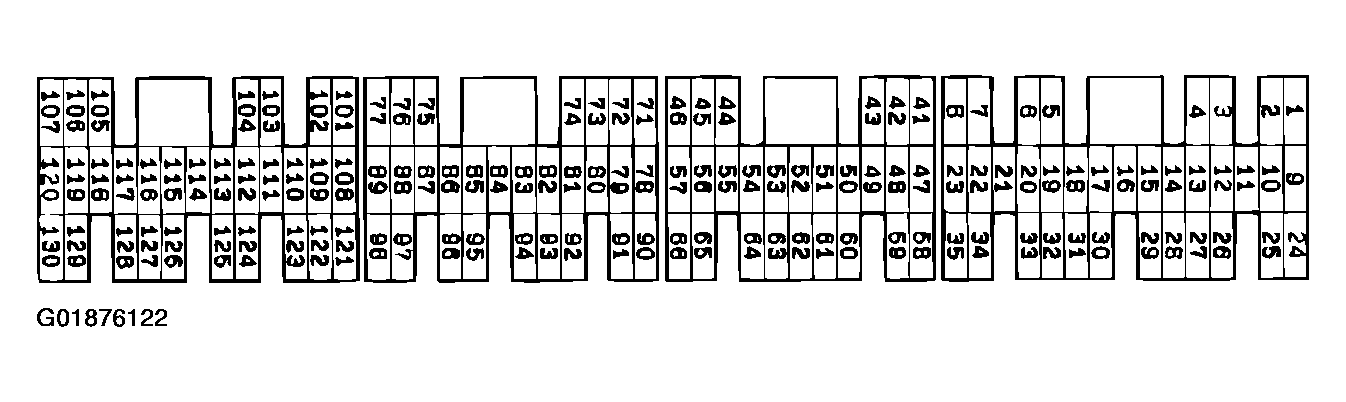

Fig 1: Identifying PCM Connector Terminal
G01876122Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The PCM connectors should be disconnected for this inspection.

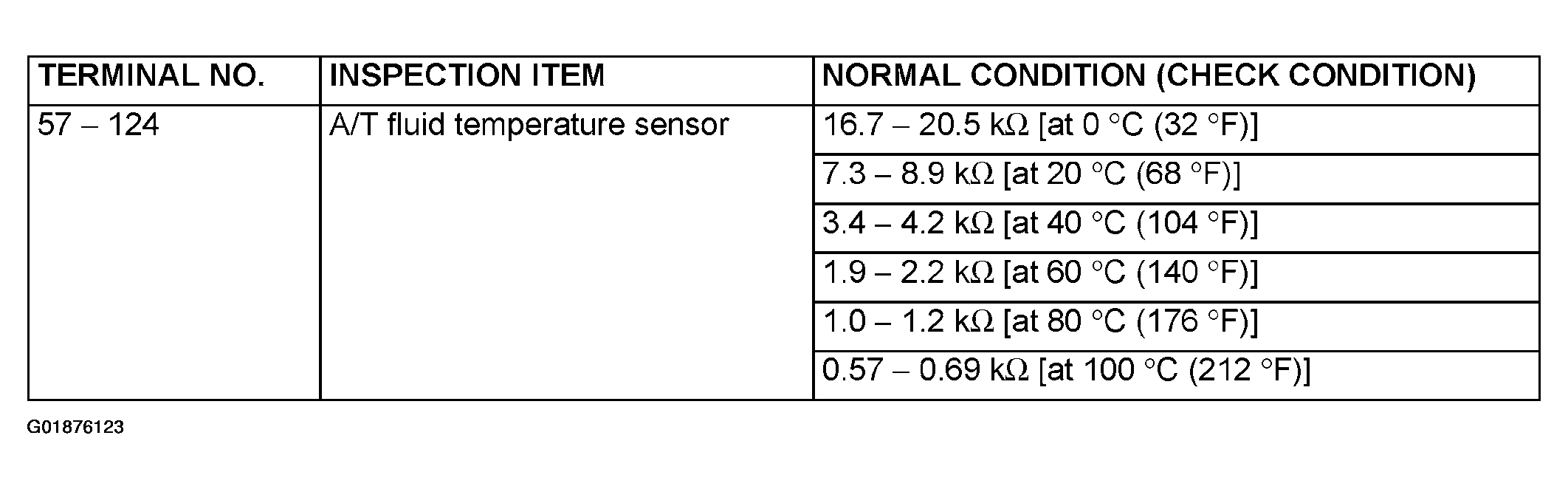

Fig 2: PCM Terminal Resistance & Continuity Inspection Chart
G01876123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
