Removal And Installation

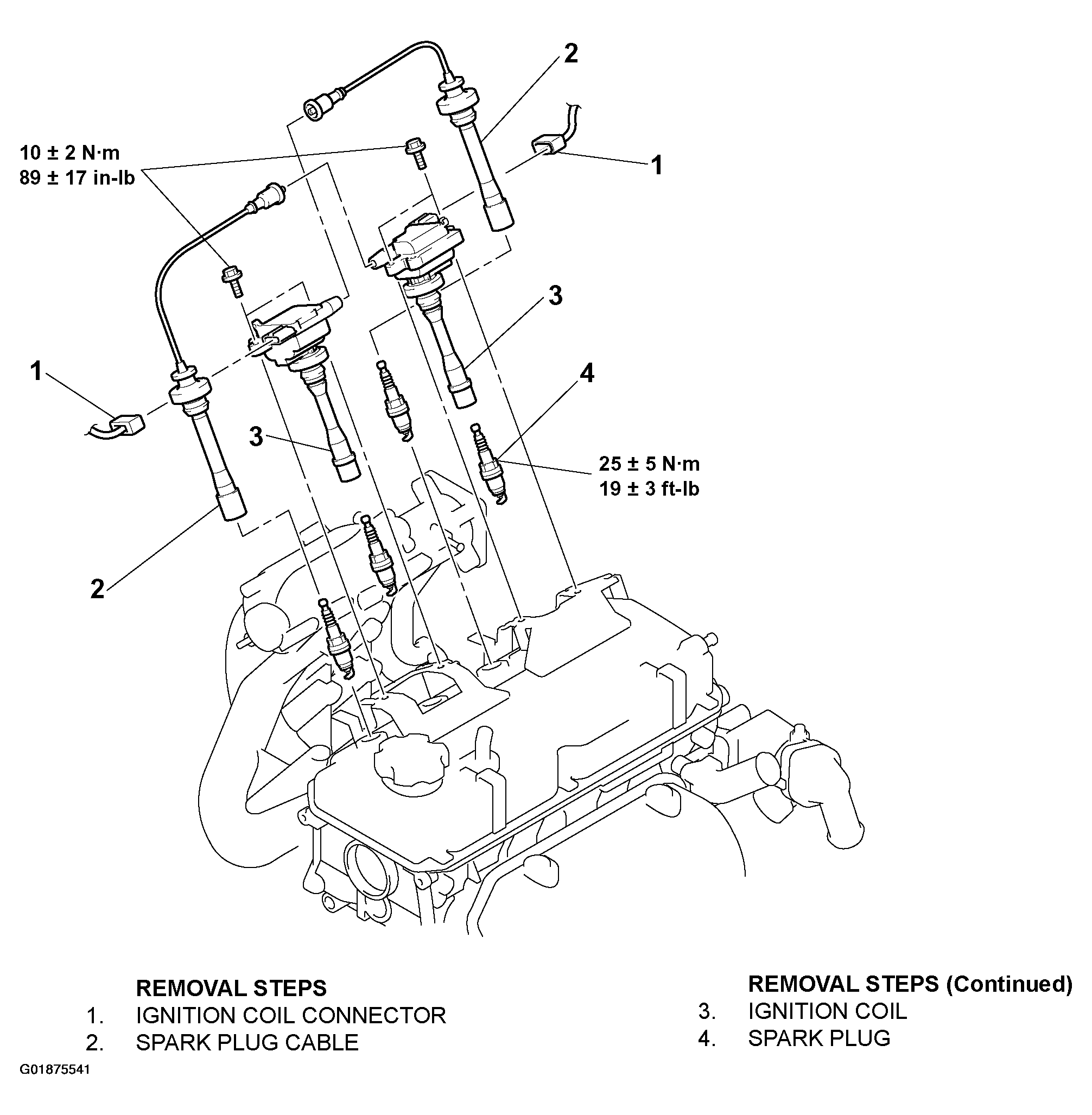

Fig 1: Removing/Installation Ignition Coil
G01875541Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
