2010 Lancer & Lancer SPORTBACK

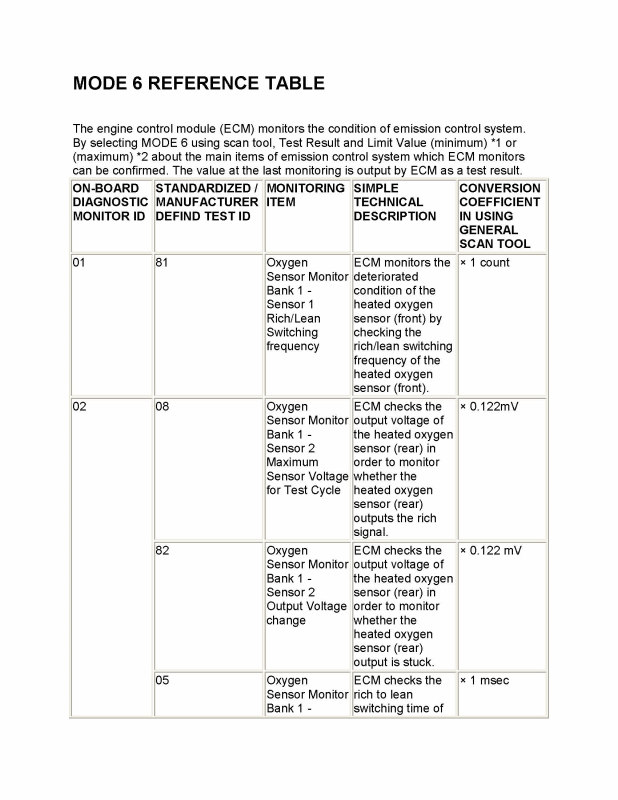

Fig 1: Mode $06 Data For 2010 Lancer (1 Of 6)

G00524664

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

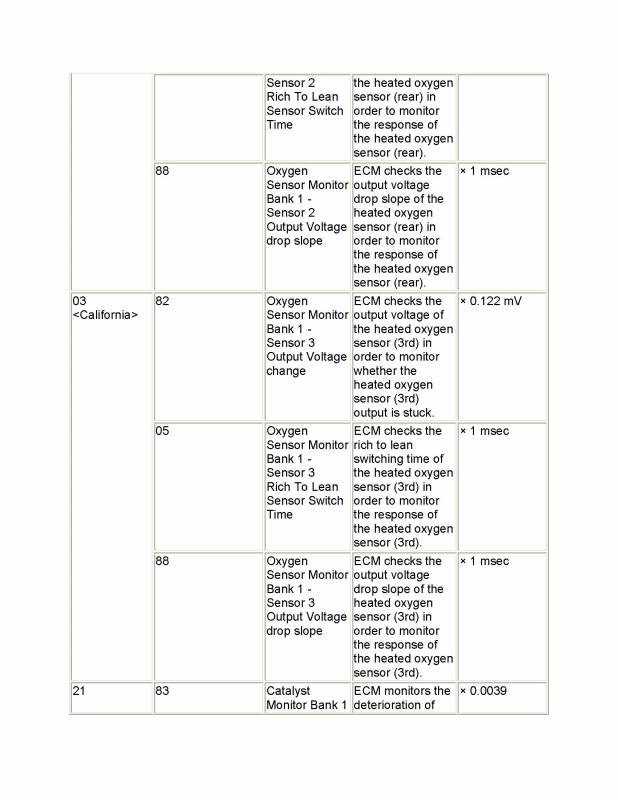

Fig 2: Mode $06 Data For 2010 Lancer (2 Of 6)

G00524665

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

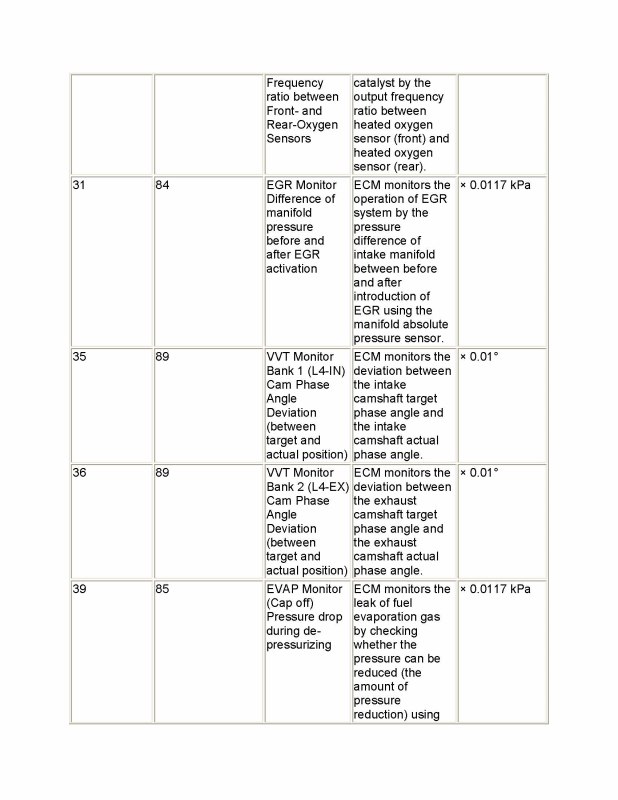

Fig 3: Mode $06 Data For 2010 Lancer (3 Of 6)

G00524666

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

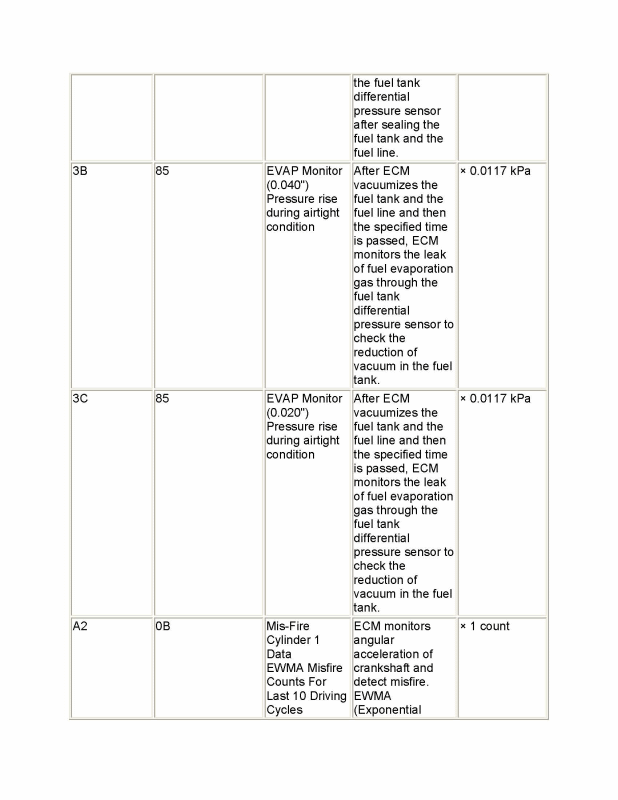

Fig 4: Mode $06 Data For 2010 Lancer (4 Of 6)

G00524667

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

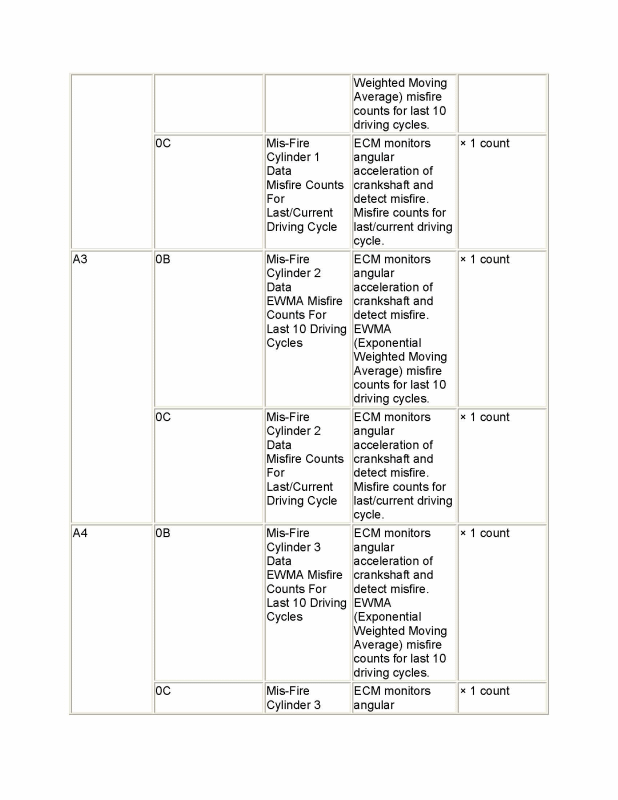

Fig 5: Mode $06 Data For 2010 Lancer (5 Of 6)

G00524668

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

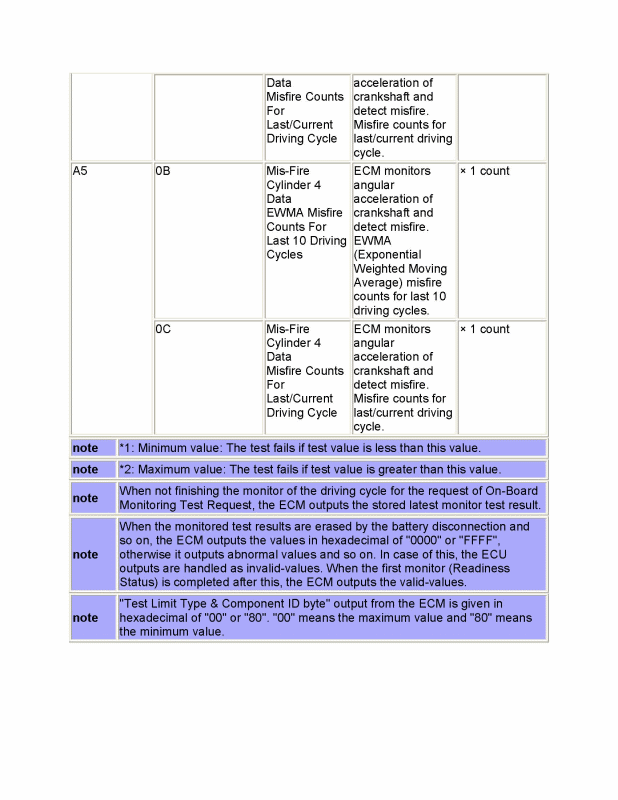

Fig 6: Mode $06 Data For 2010 Lancer (6 Of 6)

G00524669

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
