Removal And Installation: Notes

CAUTION: * : Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

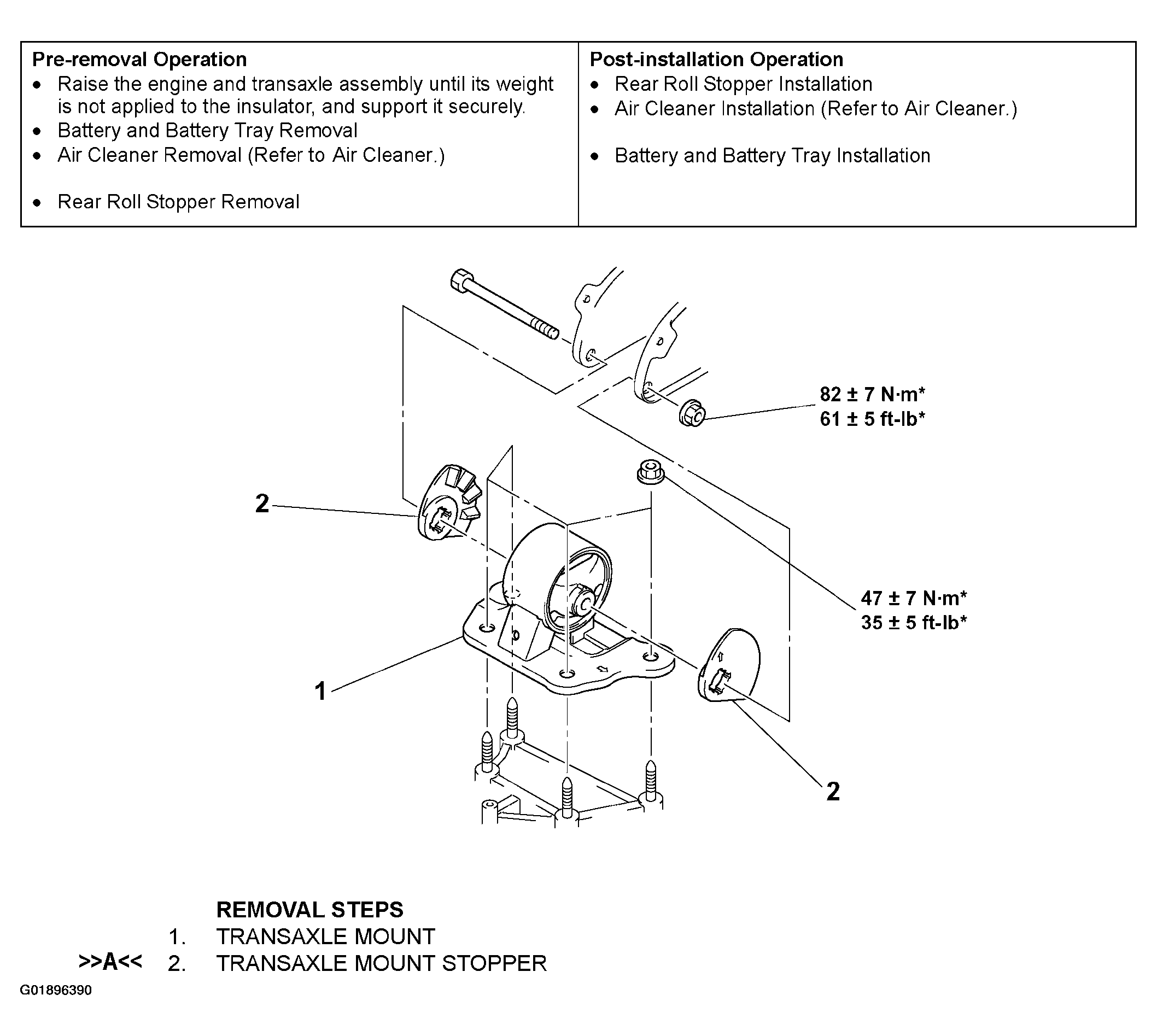

Fig 1: Removing & Installing Transaxle Mounting
G01896390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
