Removal And Installation: Notes

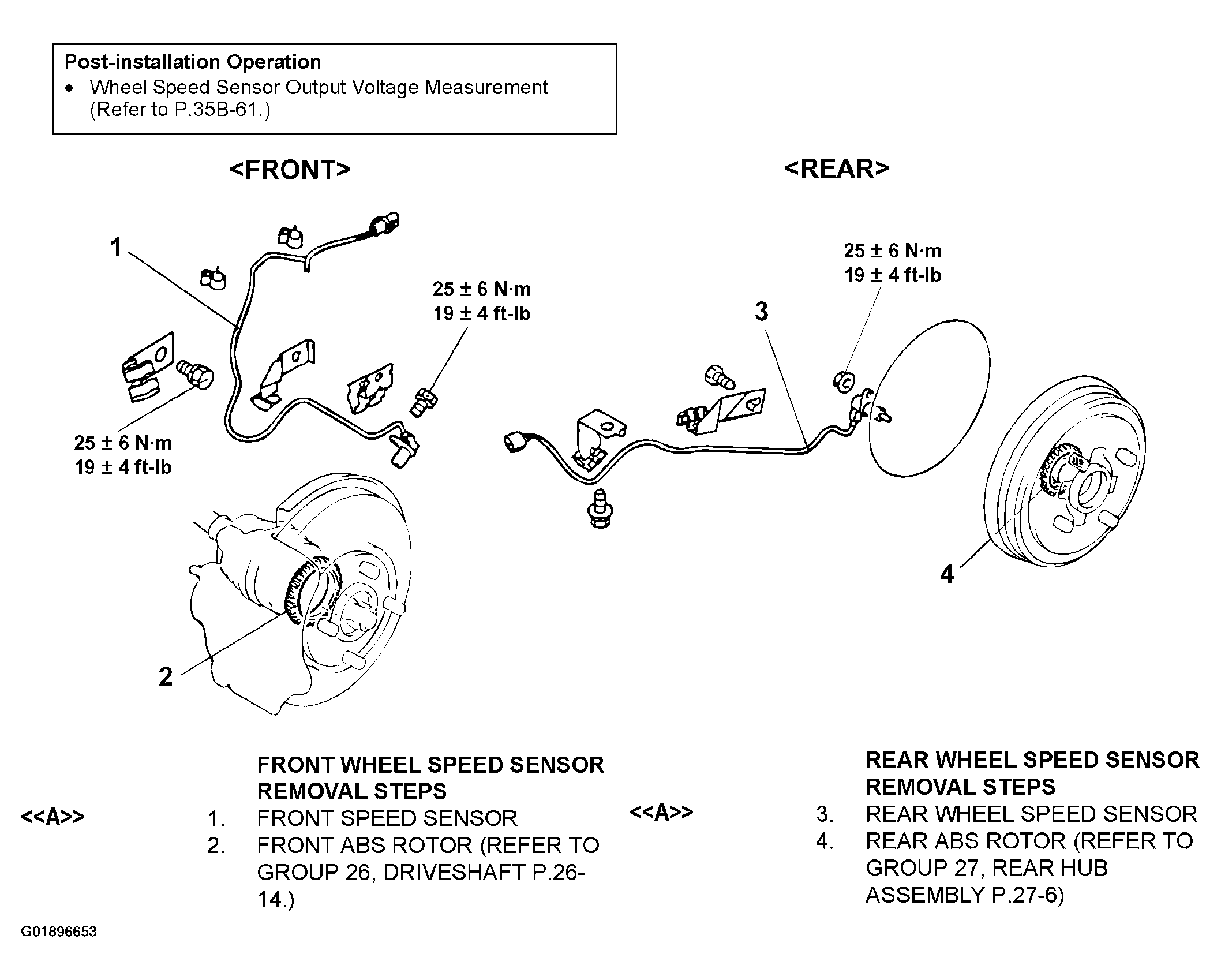

Fig 1: Removing/Installing Wheel Speed Sensor
G01896653Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
