Basic Operation: Notes

Check that the following items. See Fig 1 . If fault, replace the sunroof-ECU (sunroof motor assembly).

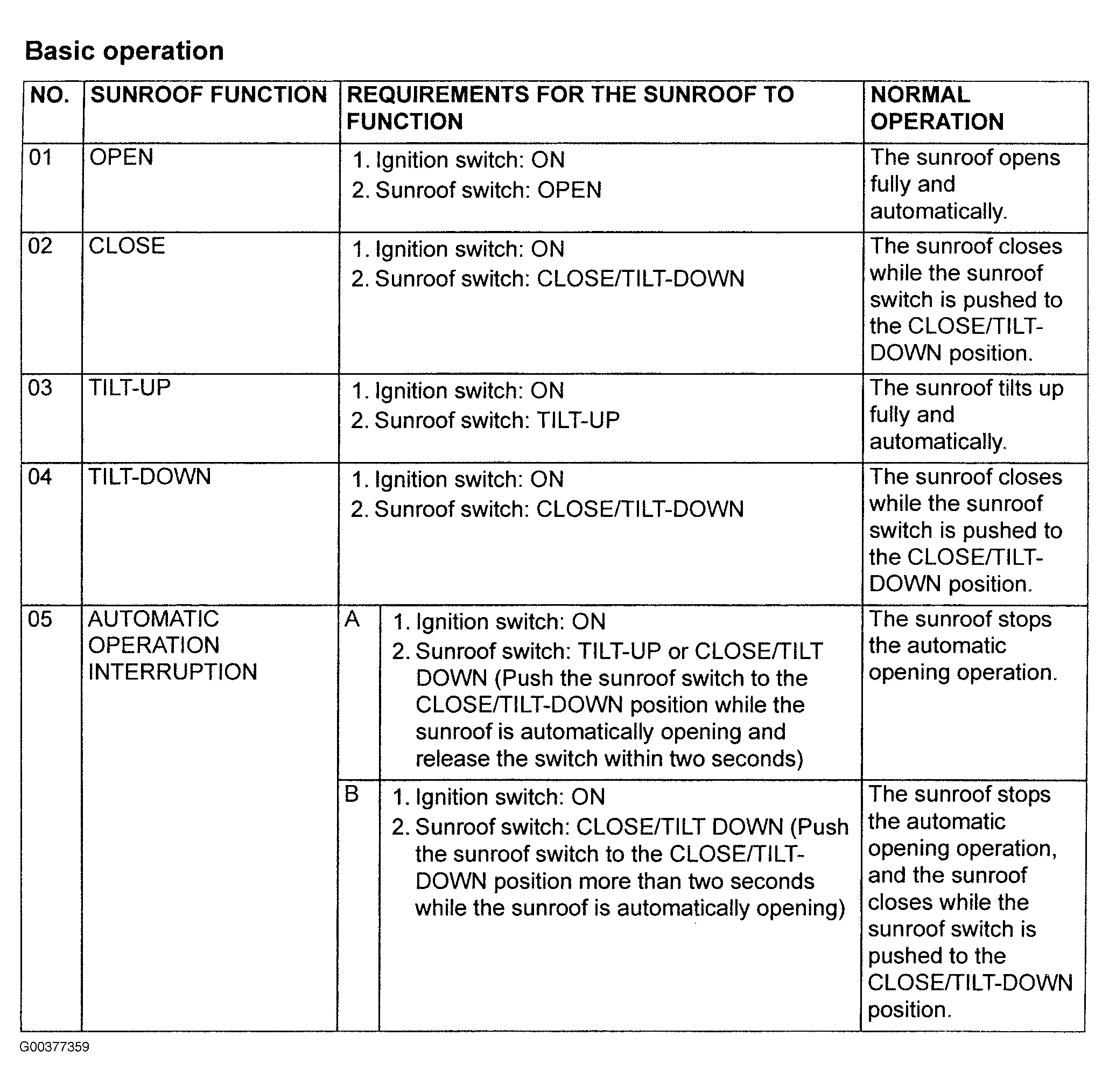

Fig 1: Checking Basic Operation

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
