Sunroof Safety Function Check

Close the roof lid glass by applying an approximately 10 mm (0.39 inch) thick wood block placed in a right angle with the roof lid glass. See Fig 1 .
Check to see if the roof lid glass opens after the motor turns when the roof lid glass catches the wood block. See MULTIPLEX CONTROL SYSTEMS article in ACCESSORIES & EQUIPMENT.

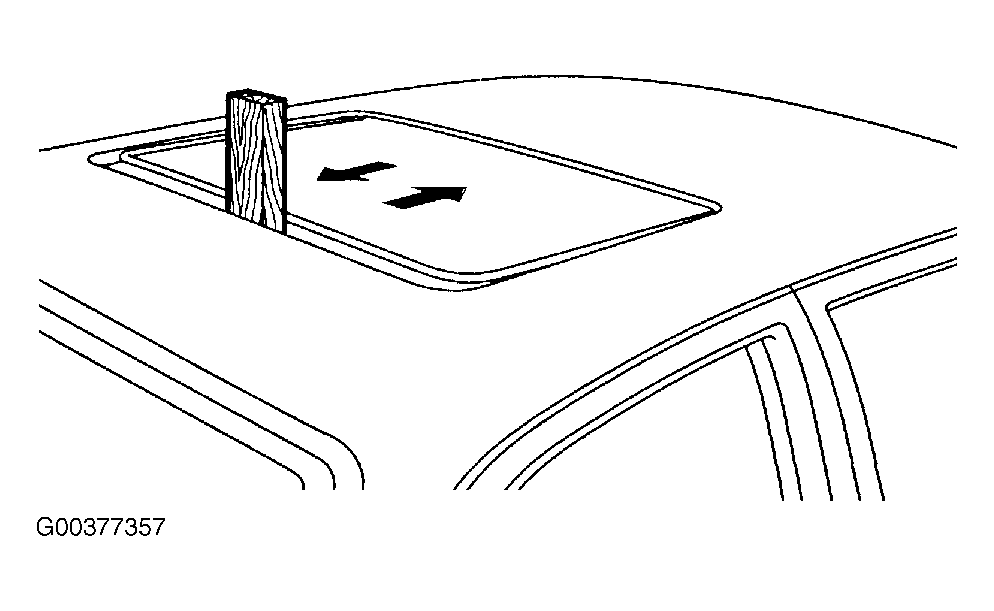

Fig 1: Testing Sunroof Safety Function

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
