INSPECTION PROCEDURE 17: Vehicle Speed Signal System: Notes

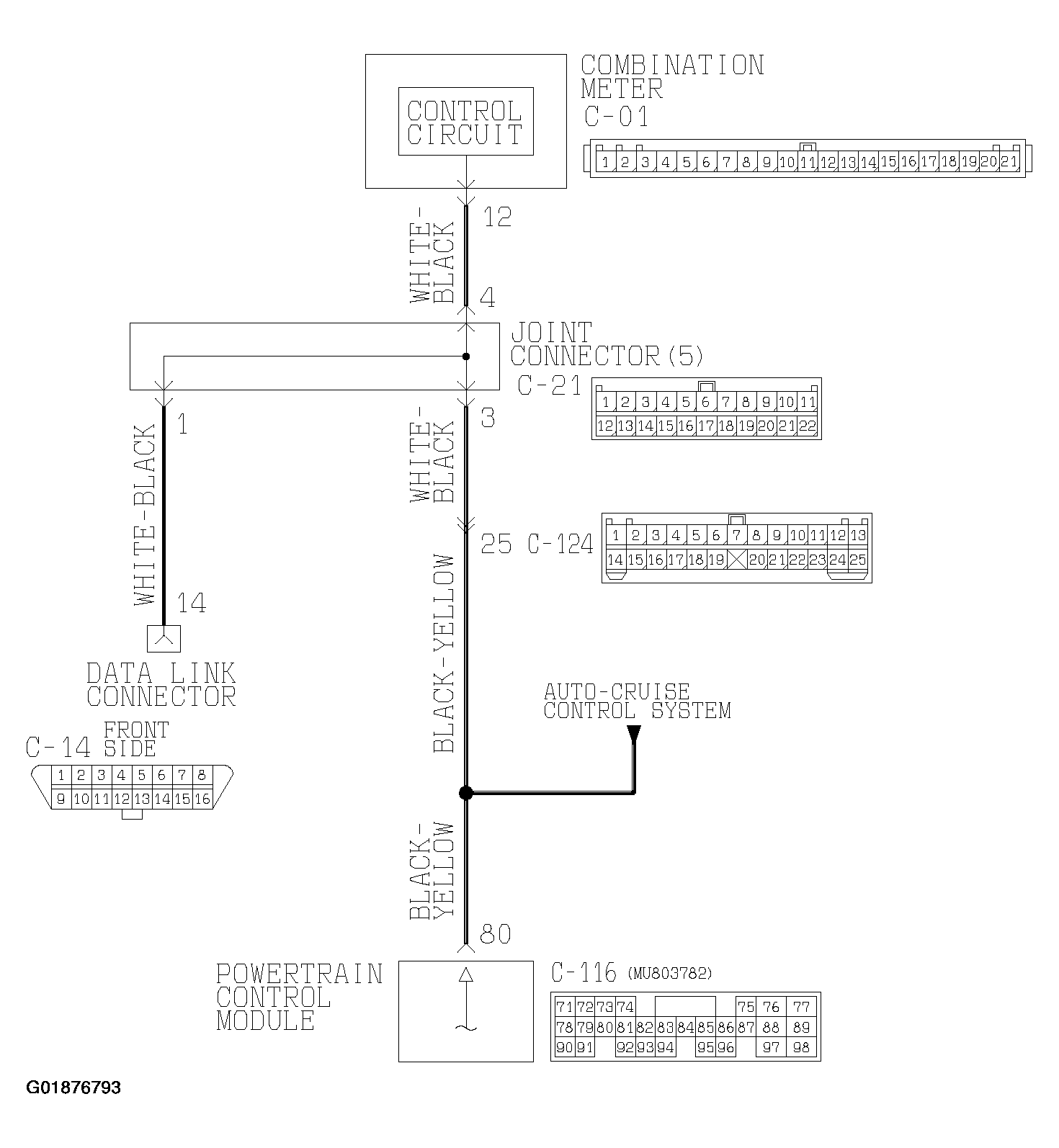

Fig 1: Vehicle Speed Signal System Circuit Diagram
G01876793Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

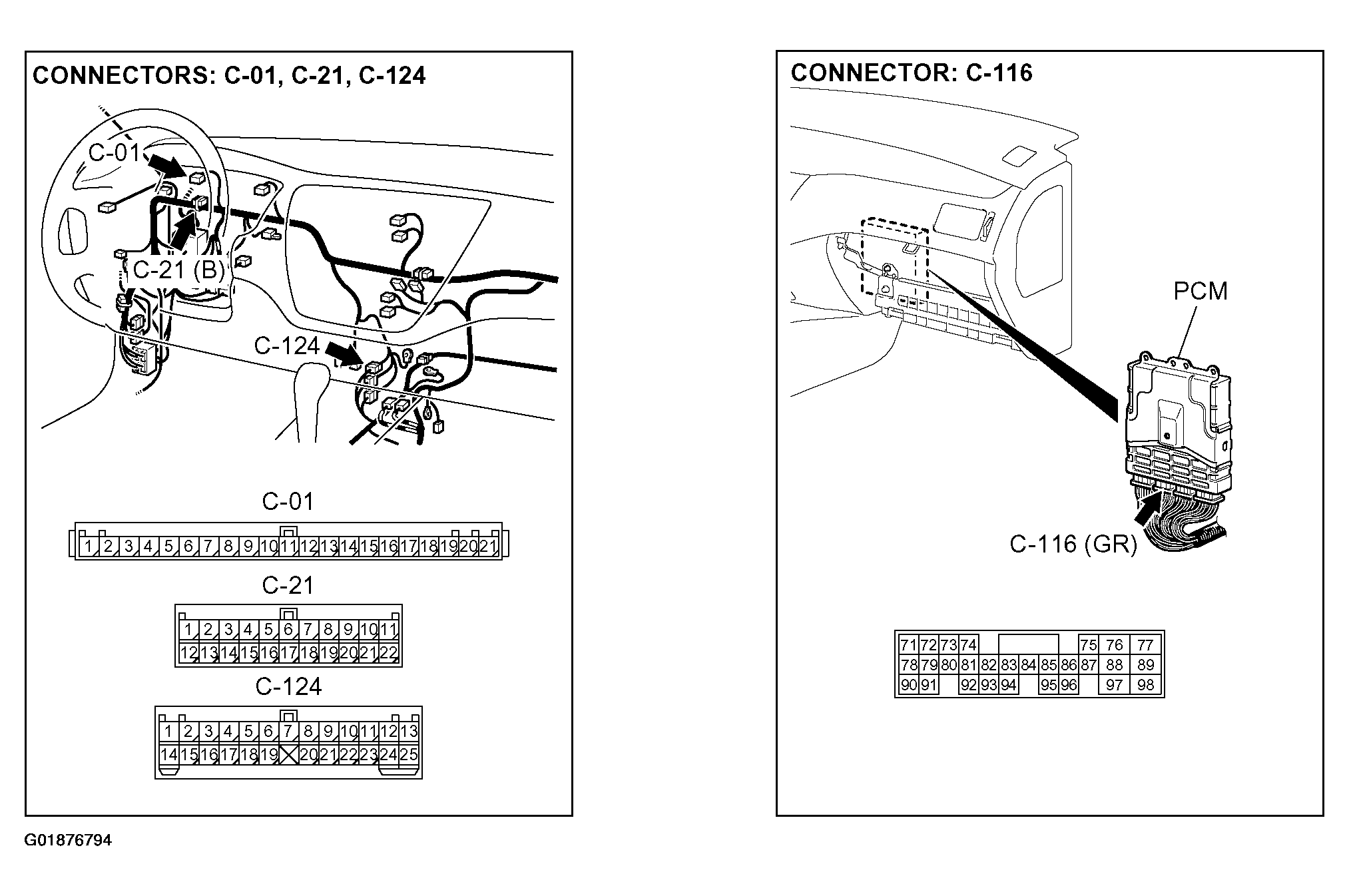

Fig 2: Vehicle Speed Signal System Circuit Connectors
G01876794Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
