Home >> Mitsubishi >> 2003 >> Lancer LS >> Repair and Diagnosis (Single Page) >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Manual HVAC - Except Evolution >> Symptom Procedures >> INSPECTION PROCEDURE 7: Defroster Function does not Operate. >> Notes

INSPECTION PROCEDURE 7: Defroster Function does not Operate.: Notes

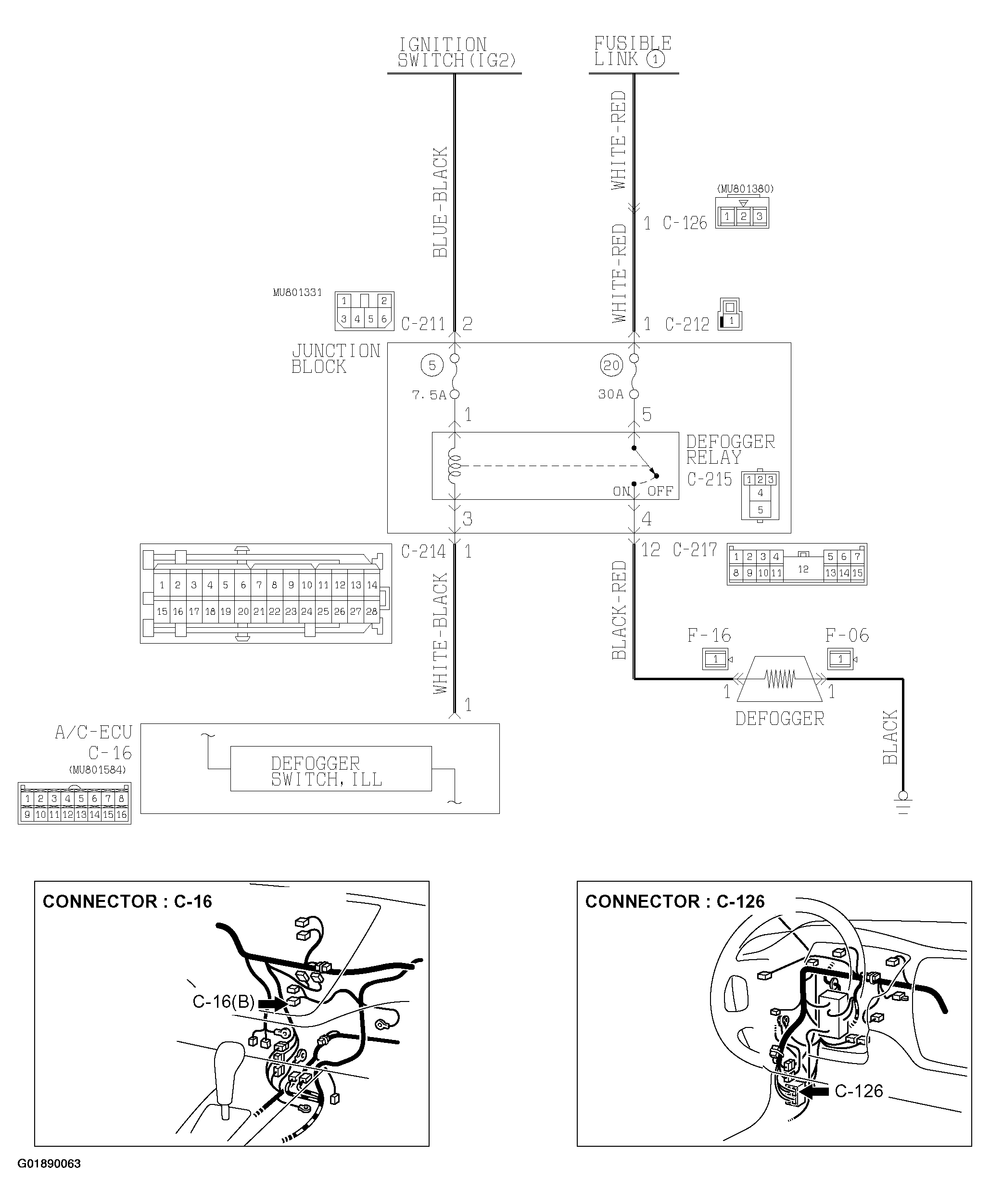

Fig 1: Defogger Circuit Diagram
G01890063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

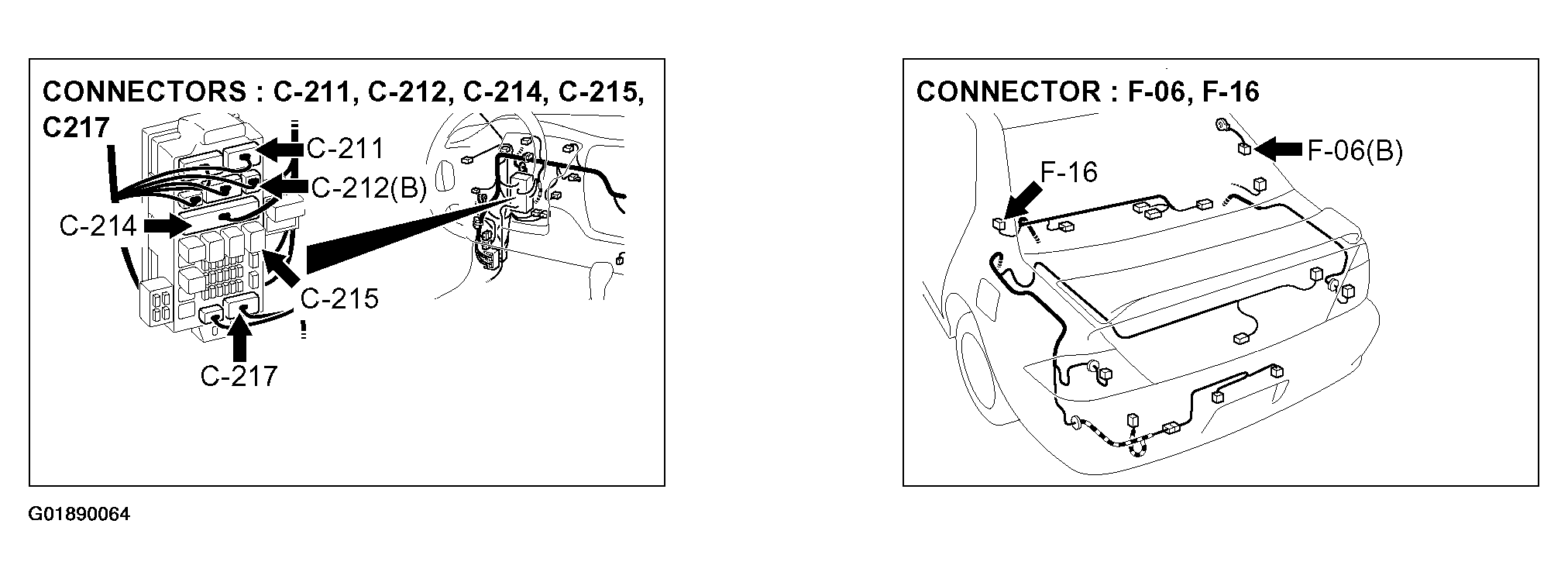

Fig 2: Defogger Circuit Harness Connectors
G01890064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
