>> K << Ball Bearing Installation

  1. Using special tool MD998801, support the 2nd speed gear portion of the input shaft.
  2. Make sure that the ball bearing end play meet the standard value.
    1. Standard value: 0 - 0.12 mm (0 - 0.0047 inch)
Fig 1: Installing Ball Bearing
G01869807Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

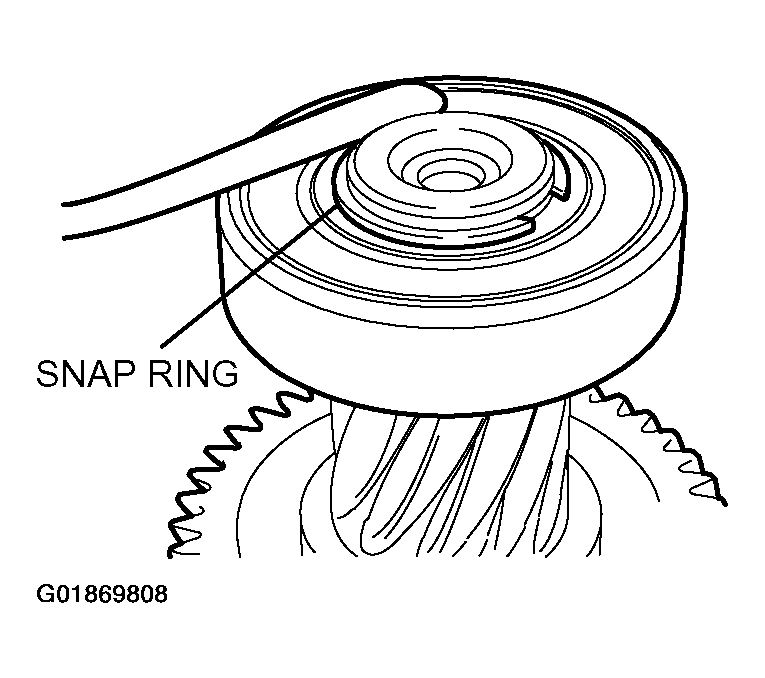

Fig 2: Measuring Ball Bearing End Play
G01869808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
