Clutch - Evolution
>>
Clutch Control
>>
Removal And Installation
Removal And Installation

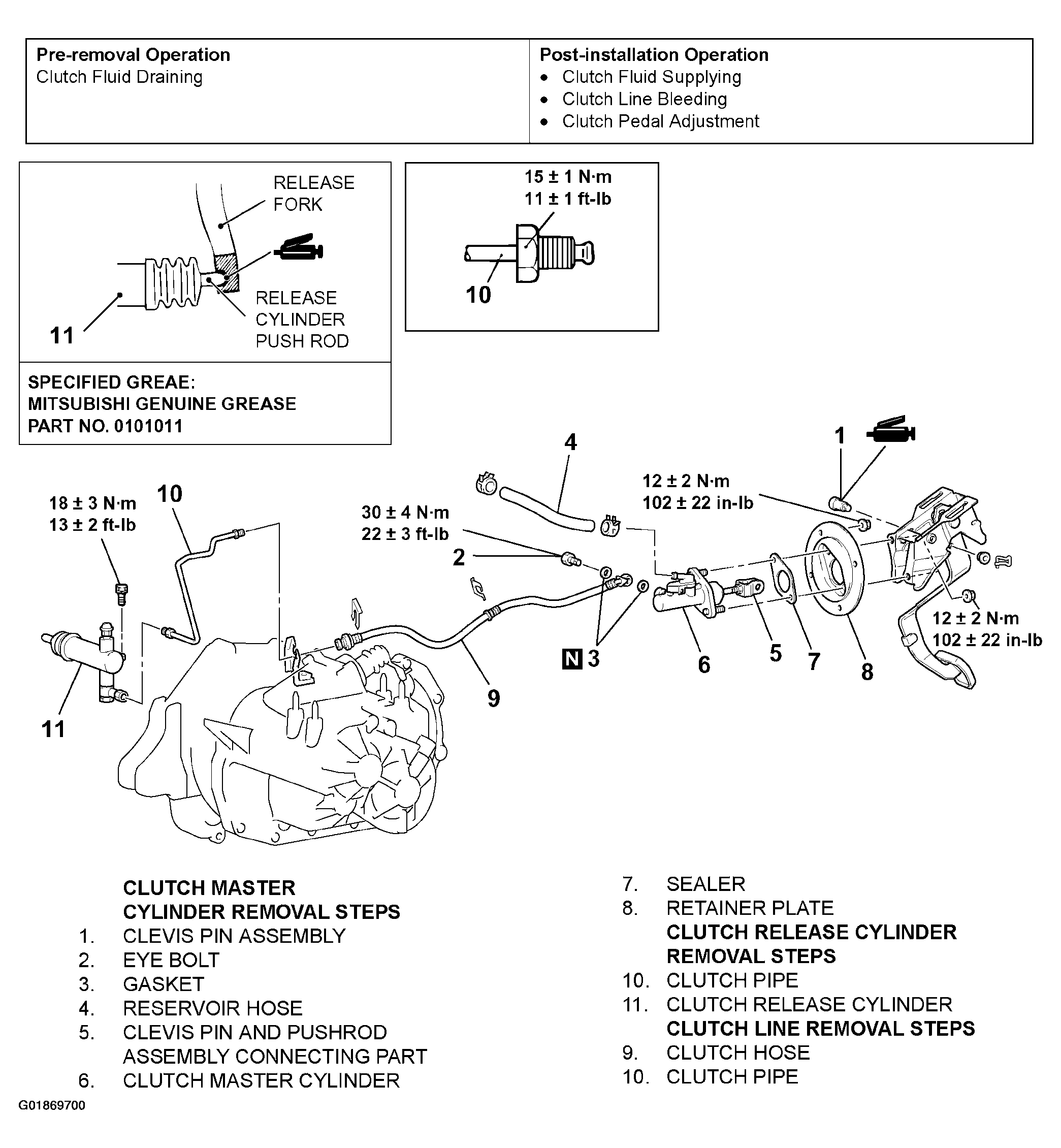

Fig 1: Exploded View Of Clutch Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
