Removal And Installation: Notes

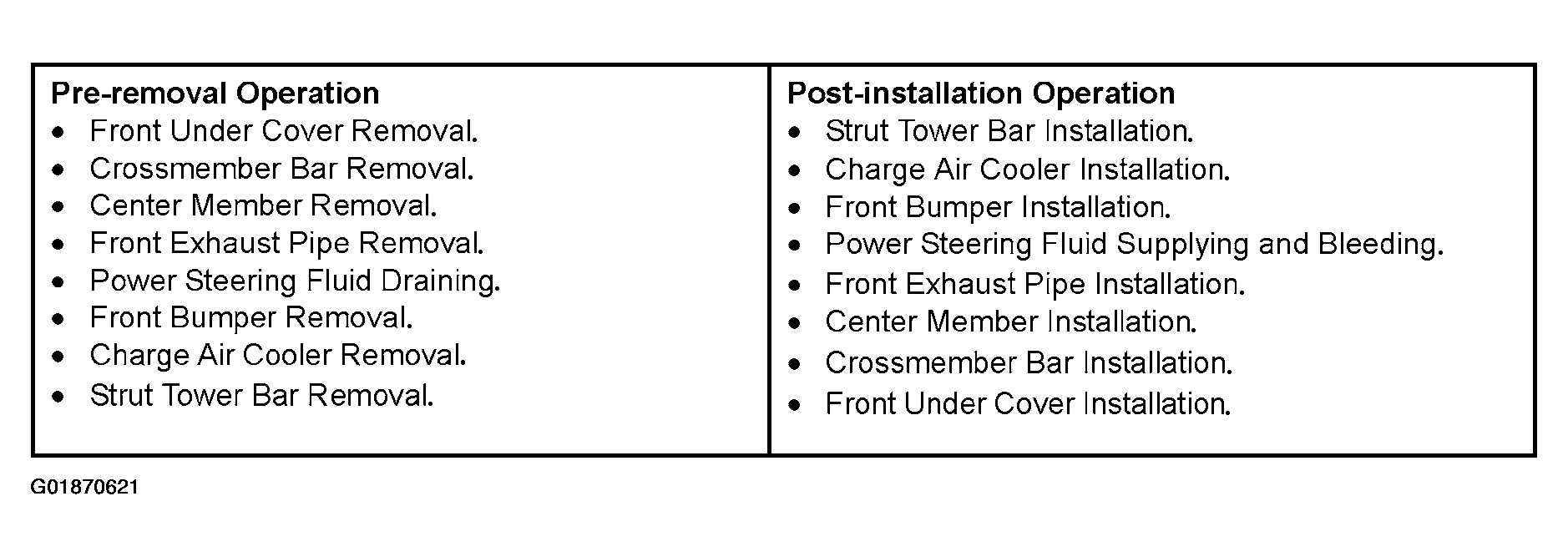

Fig 1: Power Steering Hoses Pre-Removal And Post-Installation Operation Chart
G01870621Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

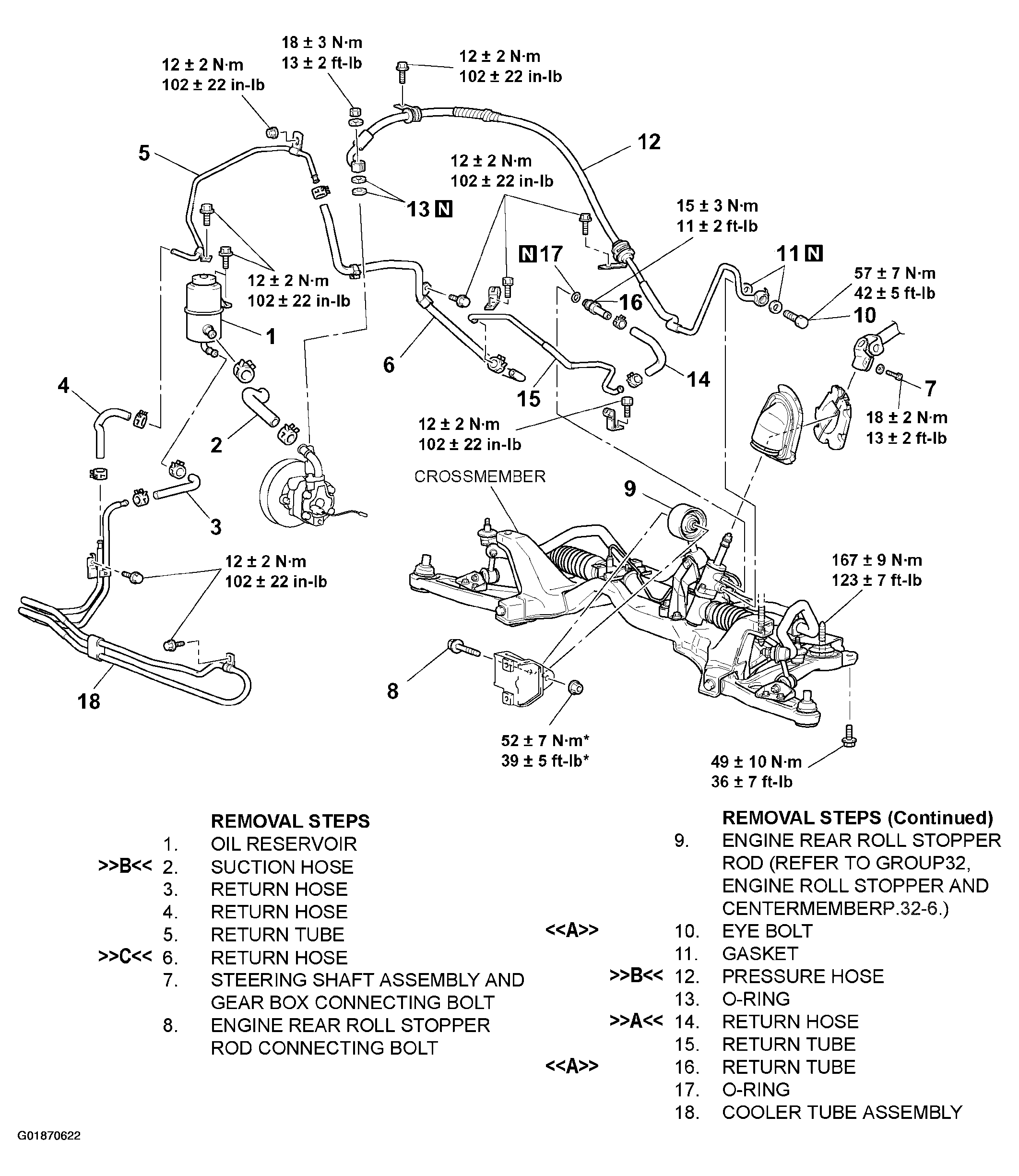

Fig 2: Power Steering Hoses And Torque Specifications
G01870622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
