Lubrication And Sealing Points: Notes

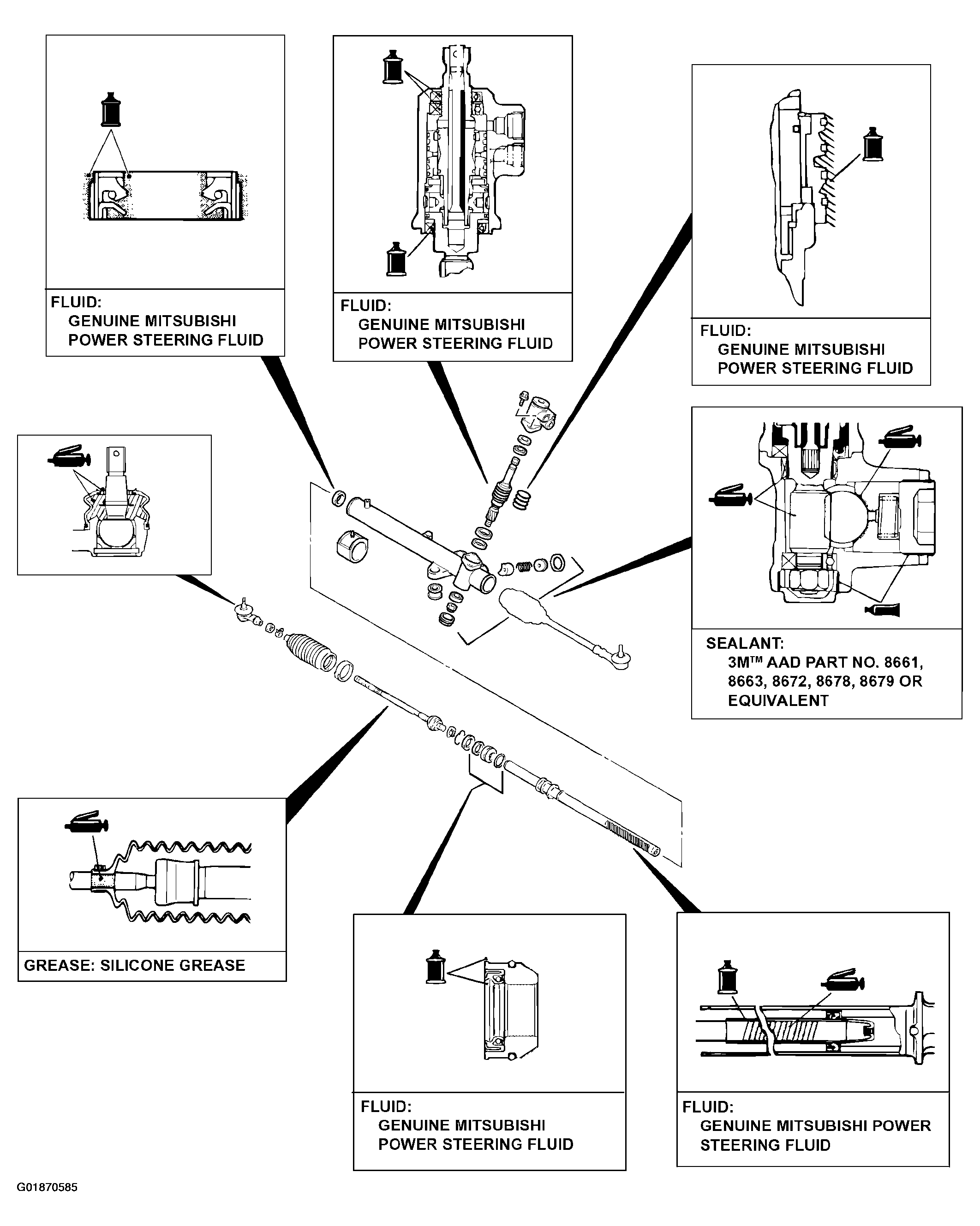

Fig 1: Identifying Lubrication And Sealing Points Location

G01870585

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
