Combination Meter ASSY: Overhaul

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See REMOVAL & INSTALLATION

REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
(See REPLACEMENT )
REMOVE COMBINATION METER ASSY
1. Remove the 4 screws.
2. Pull out the combination meter assy, then disconnect the connectors.

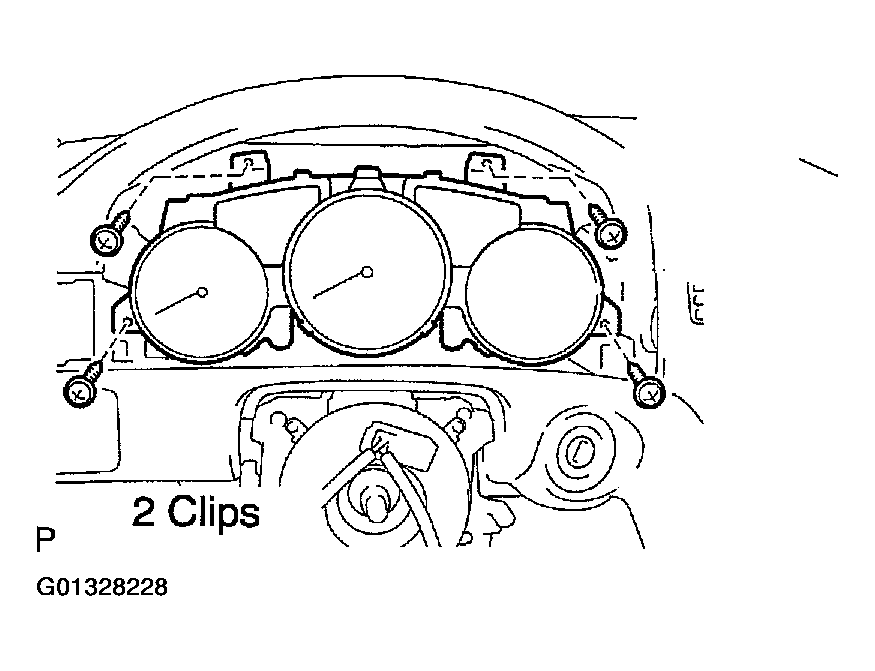

Fig 1: Removing Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEEDOMETER GLASS
1. Disengage the 9 claws and remove the speedometer glass.

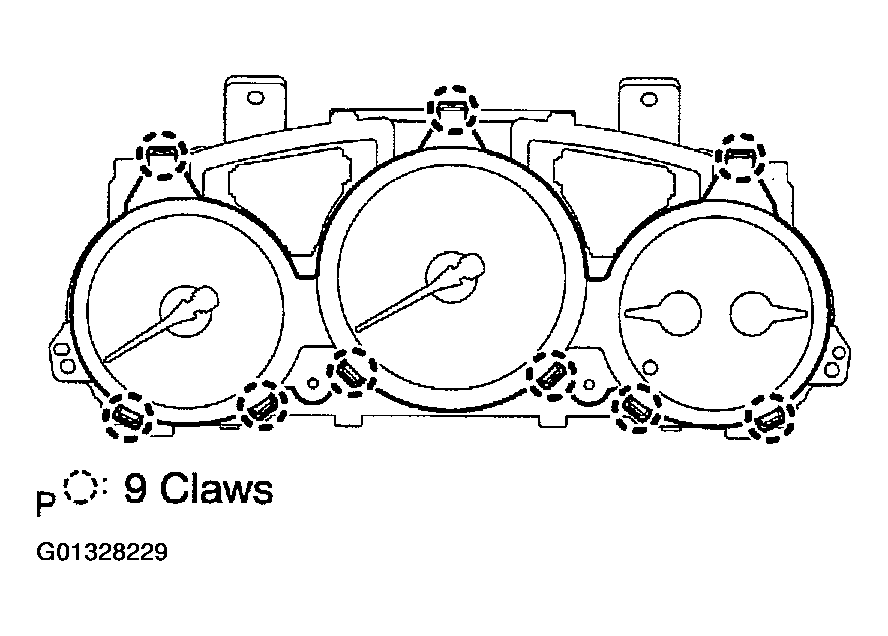

Fig 2: Removing Claws And Speedometer Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
