Operating Cylinder: Components

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

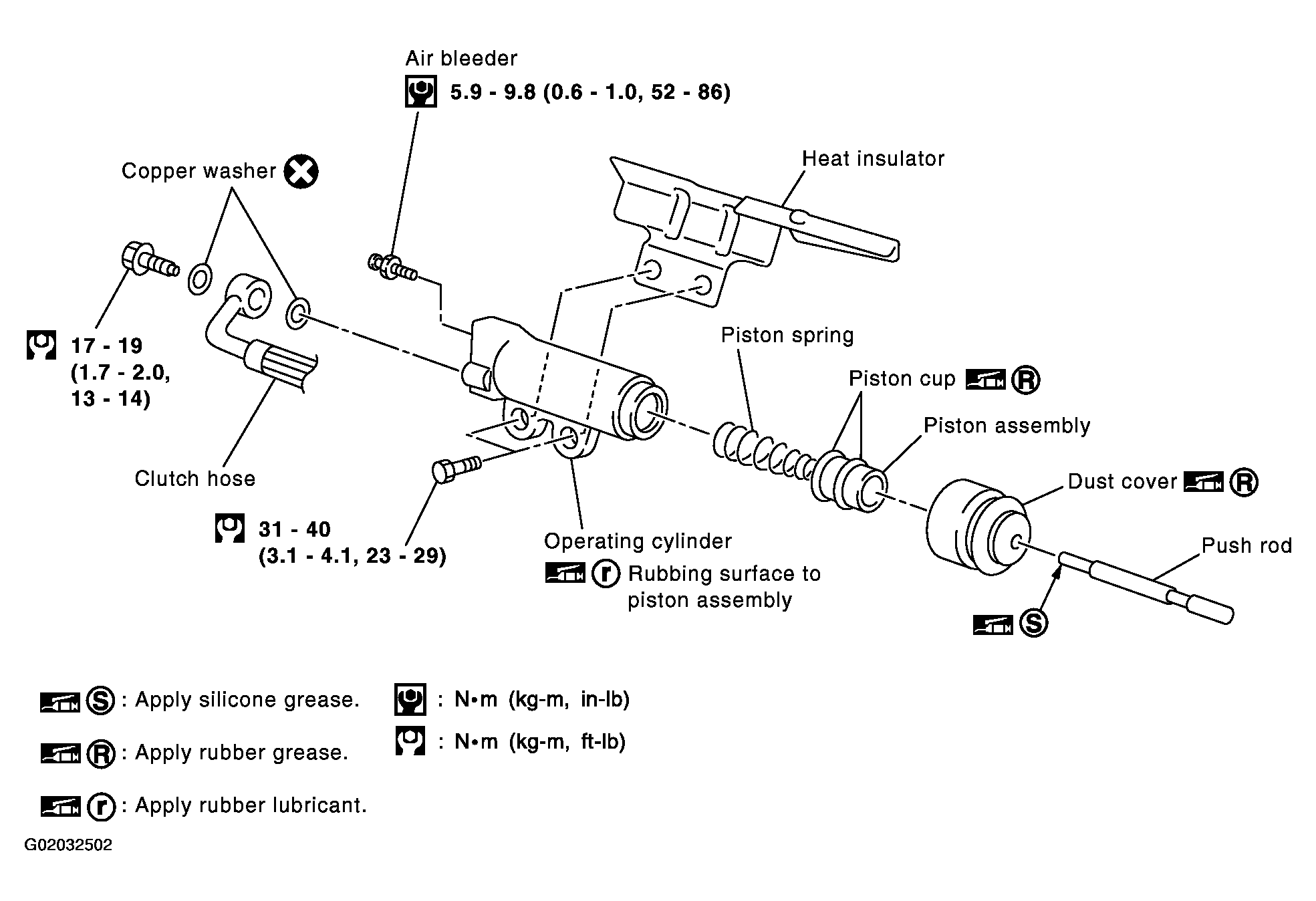

Fig 1: Exploded View Of Operating Cylinder

Courtesy of NISSAN MOTOR CO., U.S.A.
