Mode 6 - 1997-2012 MITSUBISHI
>>
2012 Lancer & 2012 Lancer SPORTBACK
2012 Lancer & 2012 Lancer SPORTBACK

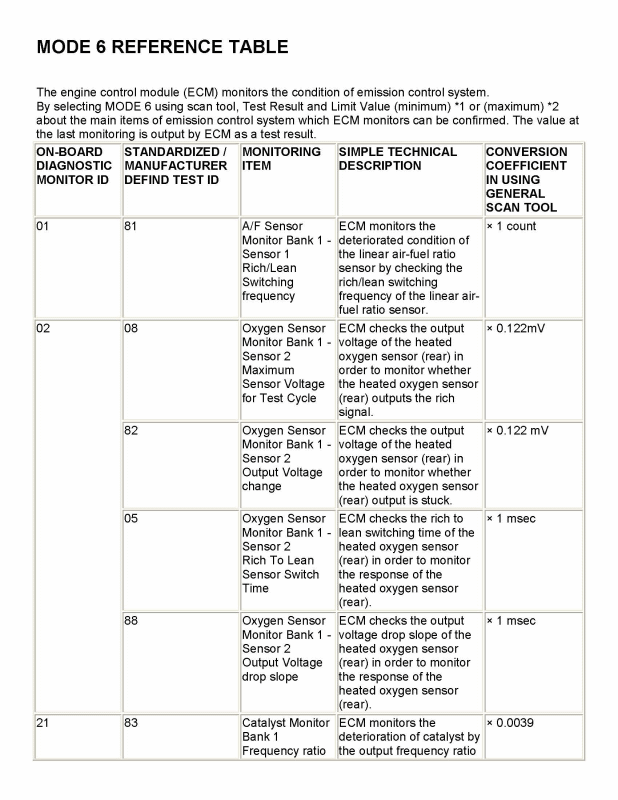

Fig 1: Mode $06 Data For 2012 Lancer & 2012 Lancer Sportback (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

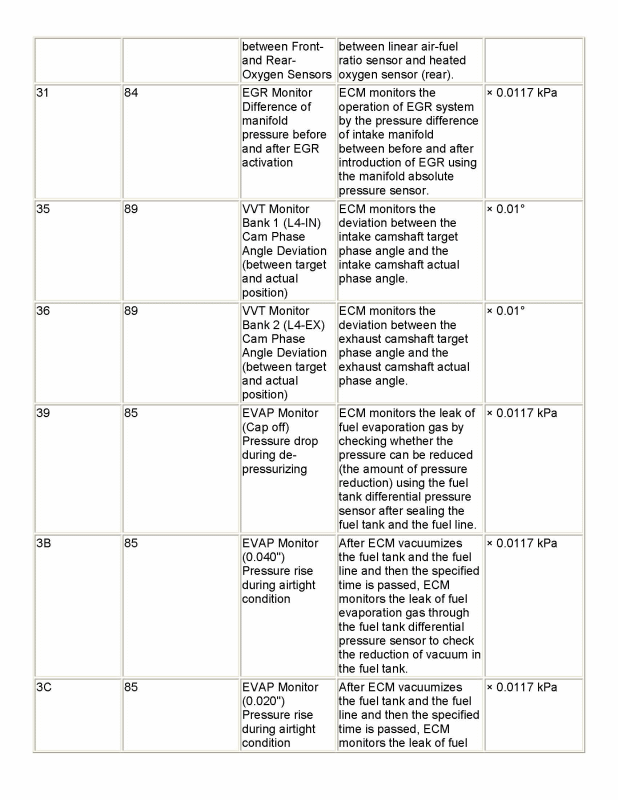

Fig 2: Mode $06 Data For 2012 Lancer & 2012 Lancer Sportback (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

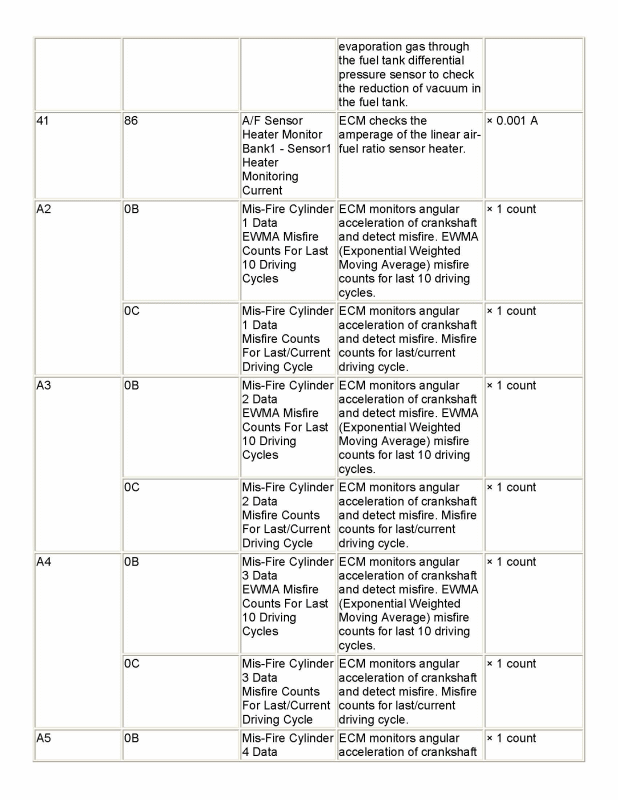

Fig 3: Mode $06 Data For 2012 Lancer & 2012 Lancer Sportback (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

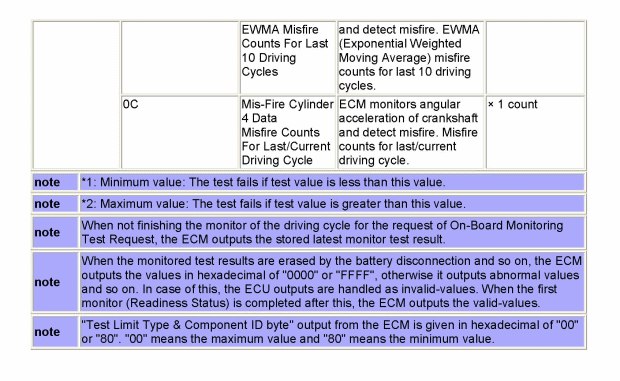

Fig 4: Mode $06 Data For 2012 Lancer & 2012 Lancer Sportback (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
