Mode 6 - 1997-2012 MITSUBISHI
>>
2006 Endeavor
2006 Endeavor

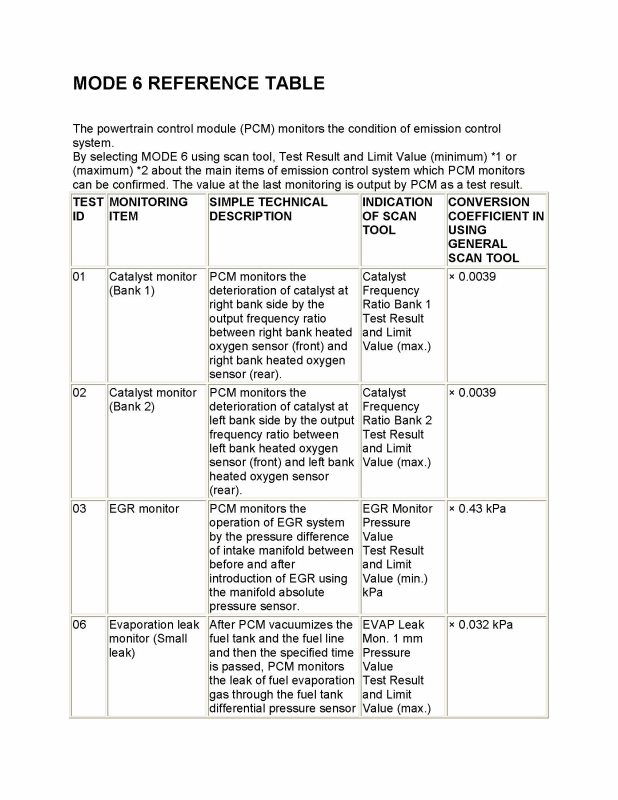

Fig 1: Mode $06 Data For 2006 Endeavor (5 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

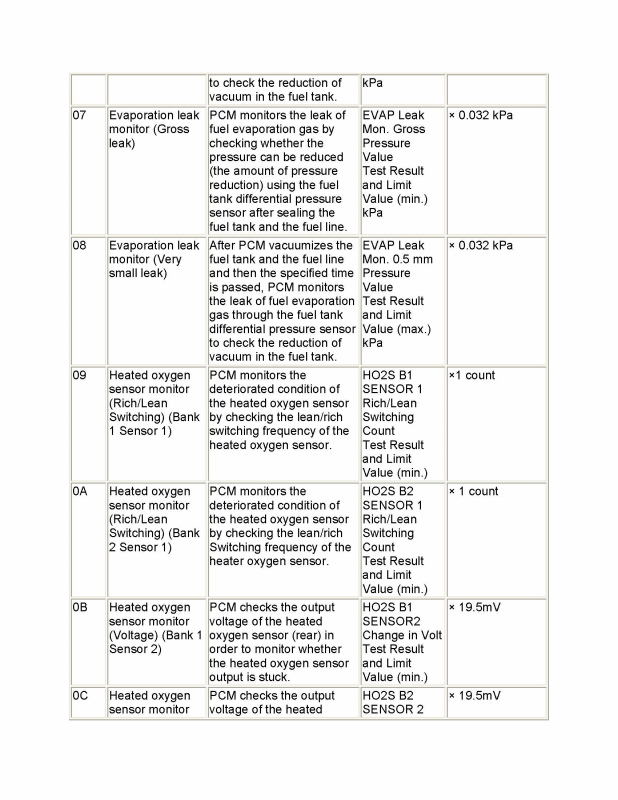

Fig 2: Mode $06 Data For 2006 Endeavor (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

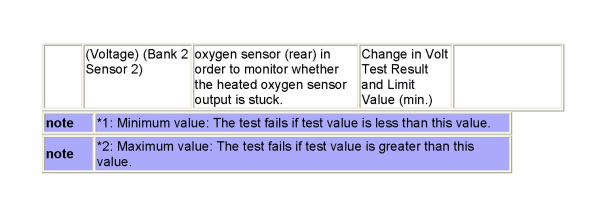

Fig 3: Mode $06 Data For 2006 Endeavor (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
