Home >> Mitsubishi >> 2003 >> Lancer Evolution >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Overhaul - Evolution >> Timing Belt >> Removal And Installation >> Notes

Removal And Installation: Notes

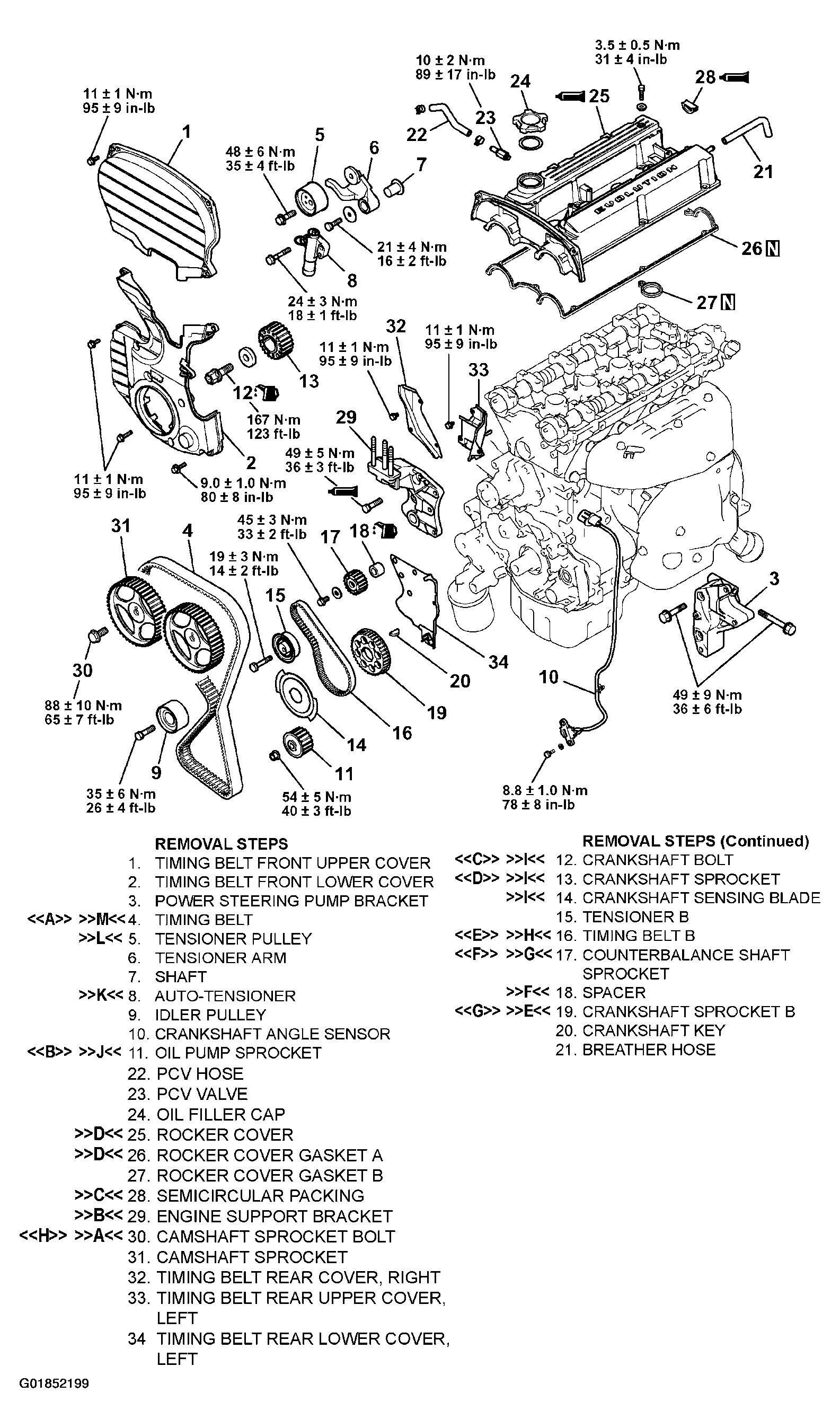

Fig 1: Timing Belt Removing Procedure And Torque Specifications
G01852199Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
