CAUTION:
If the vehicle is equipped with the Brembo™ disc brake, during maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.

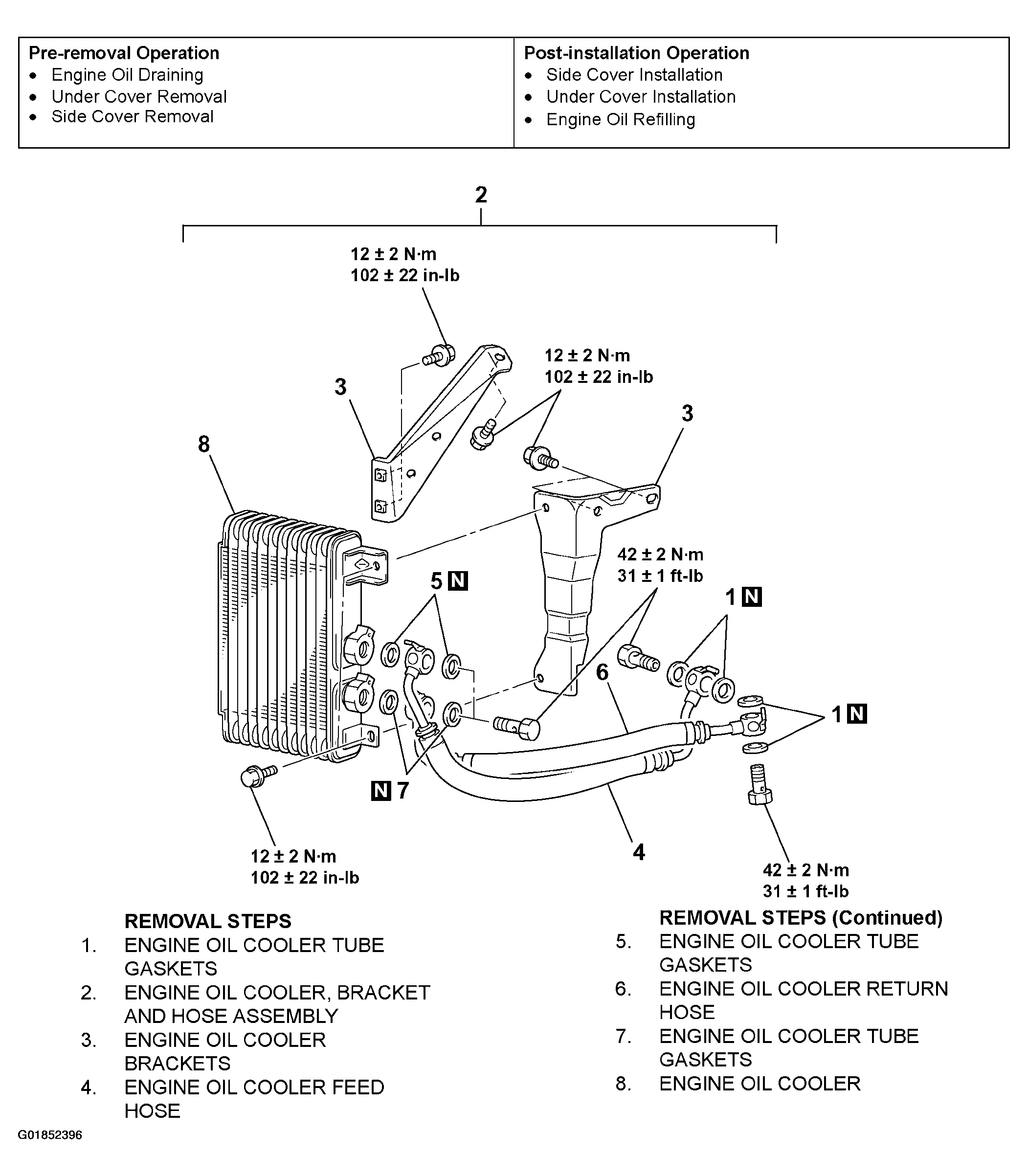

Fig 1: Exploded View Of Engine Oil Cooler With Torque Specification
