Engine Compartment

For fuse location and values, see Fig 1 .

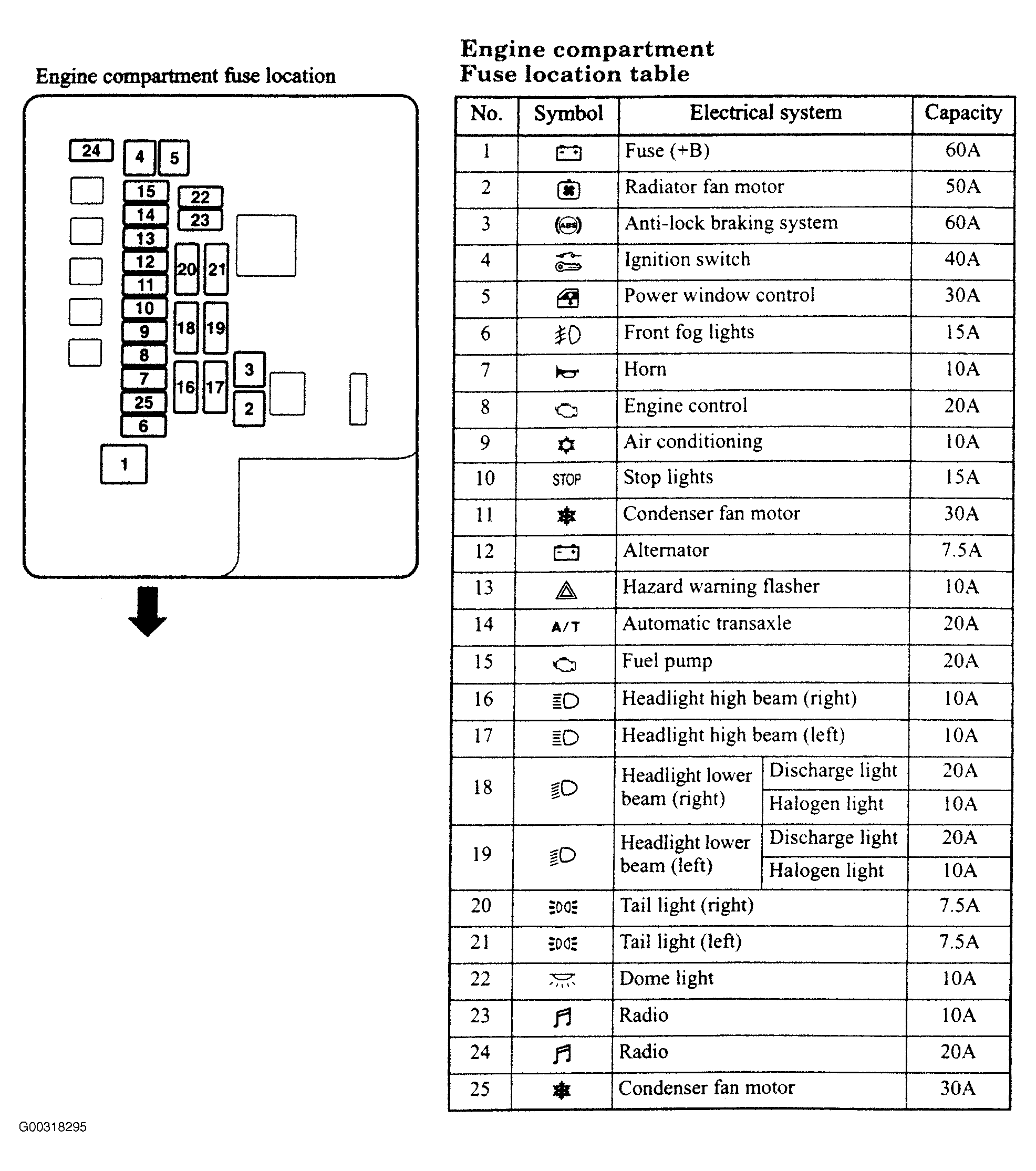

Fig 1: Identifying Engine Compartment Fuses
G00318295Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
