Differential Carrier Assembly: Assembly: Notes

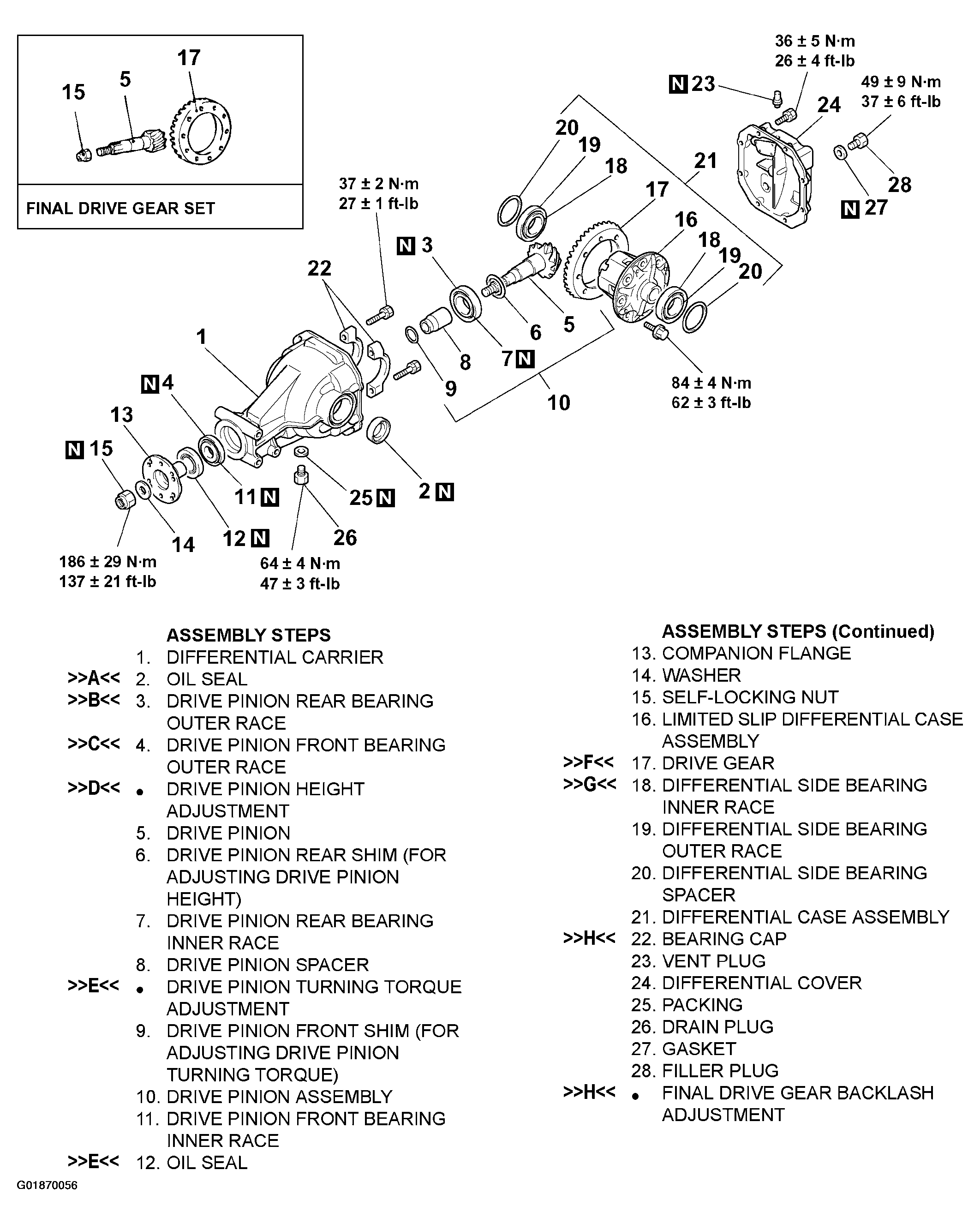

Fig 1: Identifying Assembly Steps Of Differential

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990938: Bar
• MB991115: Oil Seal Installer
• MB990936: Installer Adapter
• MB990934: Installer Adapter
• MB990901: Drive Pinion Setting Gauge Set
• MB991378: Drive Pinion Setting Gauge Set
• MB990326: Preload Socket
• MB990685: Torque Wrench
• MB990728: Bearing Installer
• MB990850: End Yoke Holder
• MB990727: Oil Seal Installer
• MB990810: Side Bearing Puller
• MB990811: Side Bearing Cup
• MB991367: Special Spanner
• MB991385: Pin
