Removal And Installation: Notes

NOTE: The ABS-ECU integrated in the hydraulic unit.

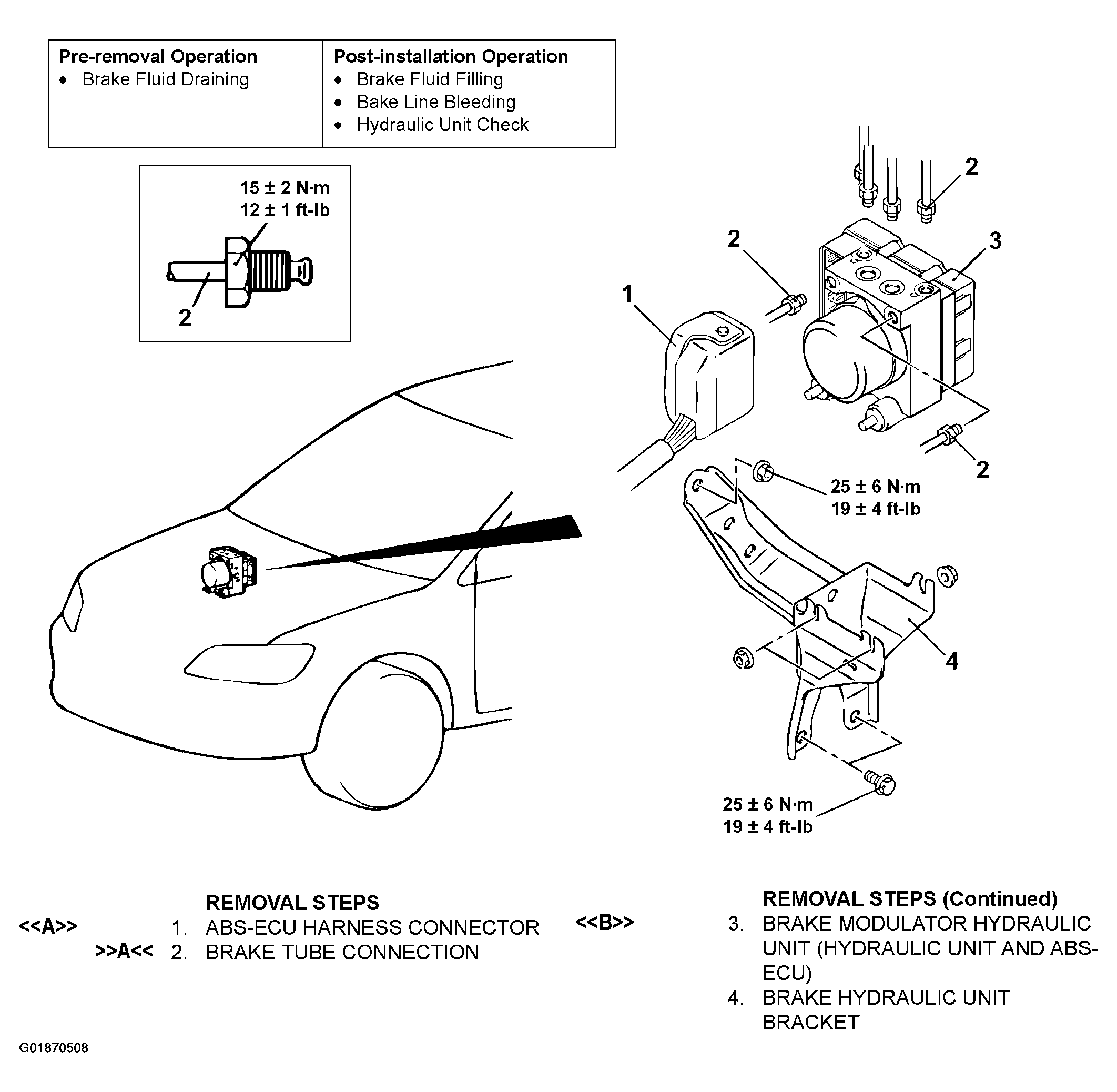

Fig 1: Exploded View Of Hydraulic Unit Components With Torque Specifications
G01870508Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
