Sunroof - Evolution
>>
Sunroof Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

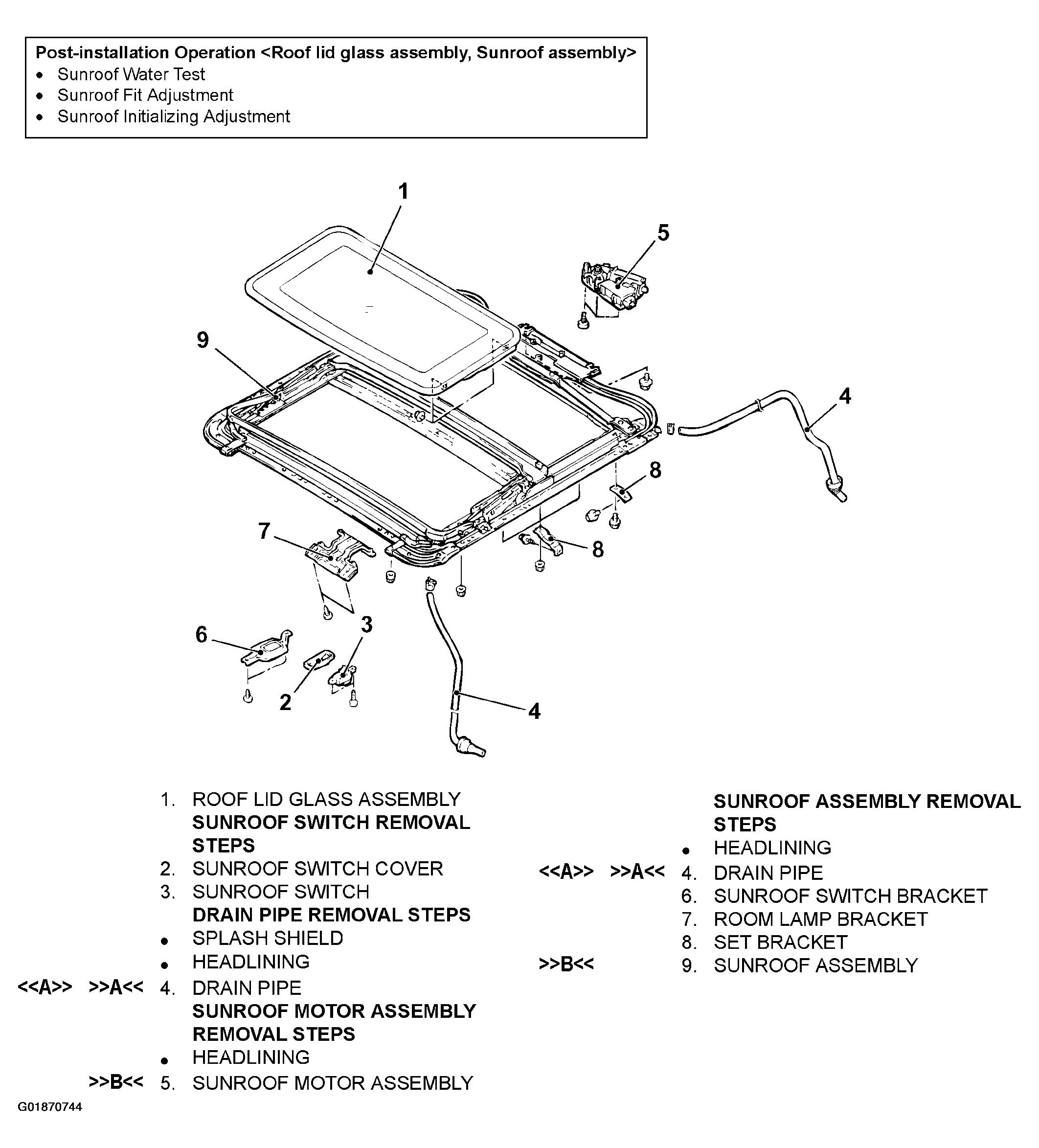

Fig 1: Exploded View Of Sunroof Assembly Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
