Sunroof - Evolution
>>
Sunroof Assembly
>>
Inspection
>>
Sunroof Switch Continuity Check
Sunroof Switch Continuity Check

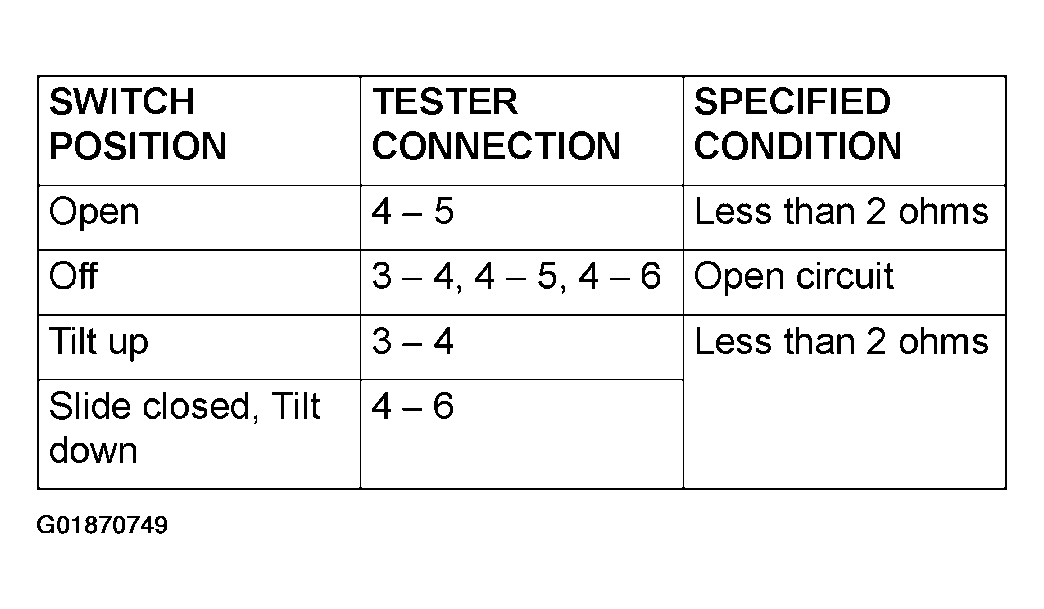

Fig 1: Sunroof Switch Continuity Check Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

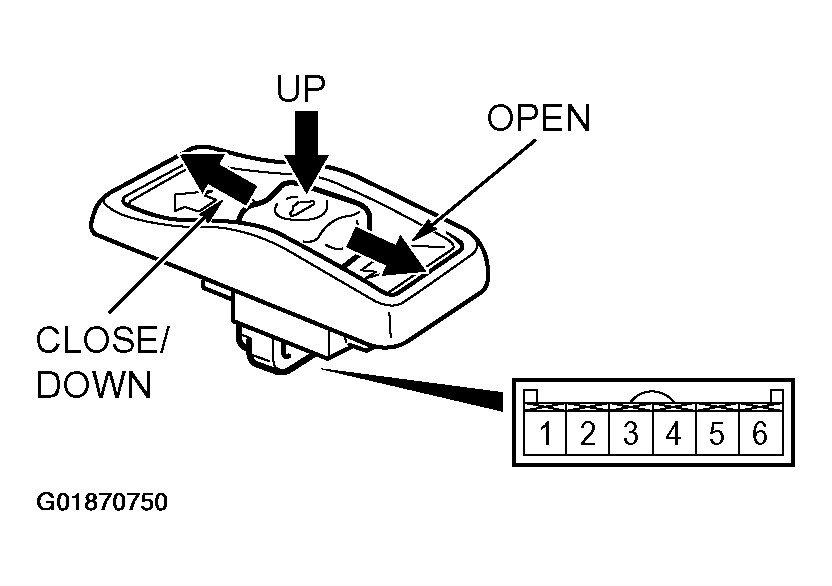

Fig 2: Checking Sunroof Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
