Sunroof - Evolution
>>
Sunroof Assembly
>>
Inspection
>>
Disassembly And Assembly
Disassembly And Assembly

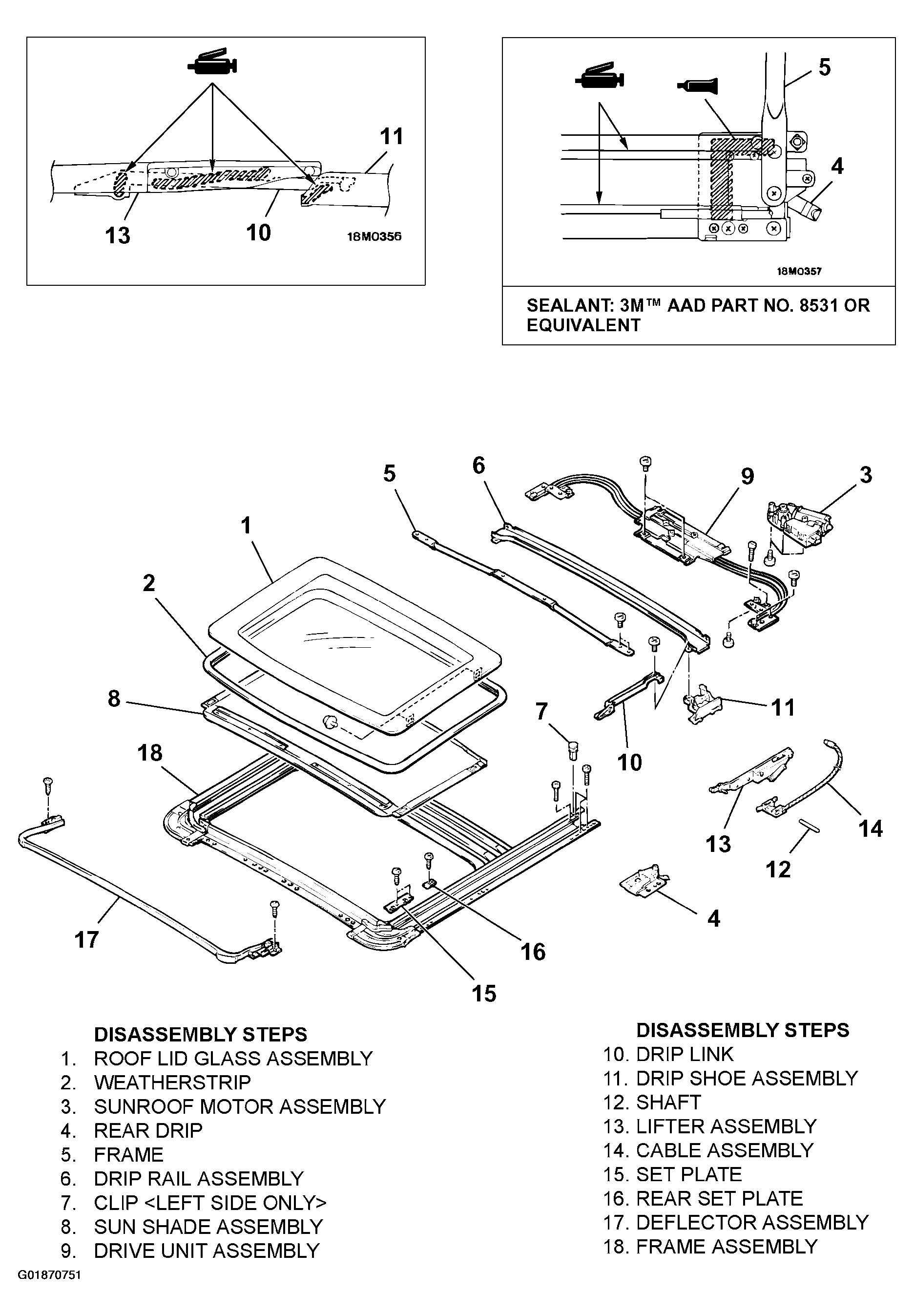

Fig 1: Exploded View Of Sunroof Assembly Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
