Headlining - Evolution
>>
Front Seat Assembly
>>
Disassembly And Assembly
Disassembly And Assembly

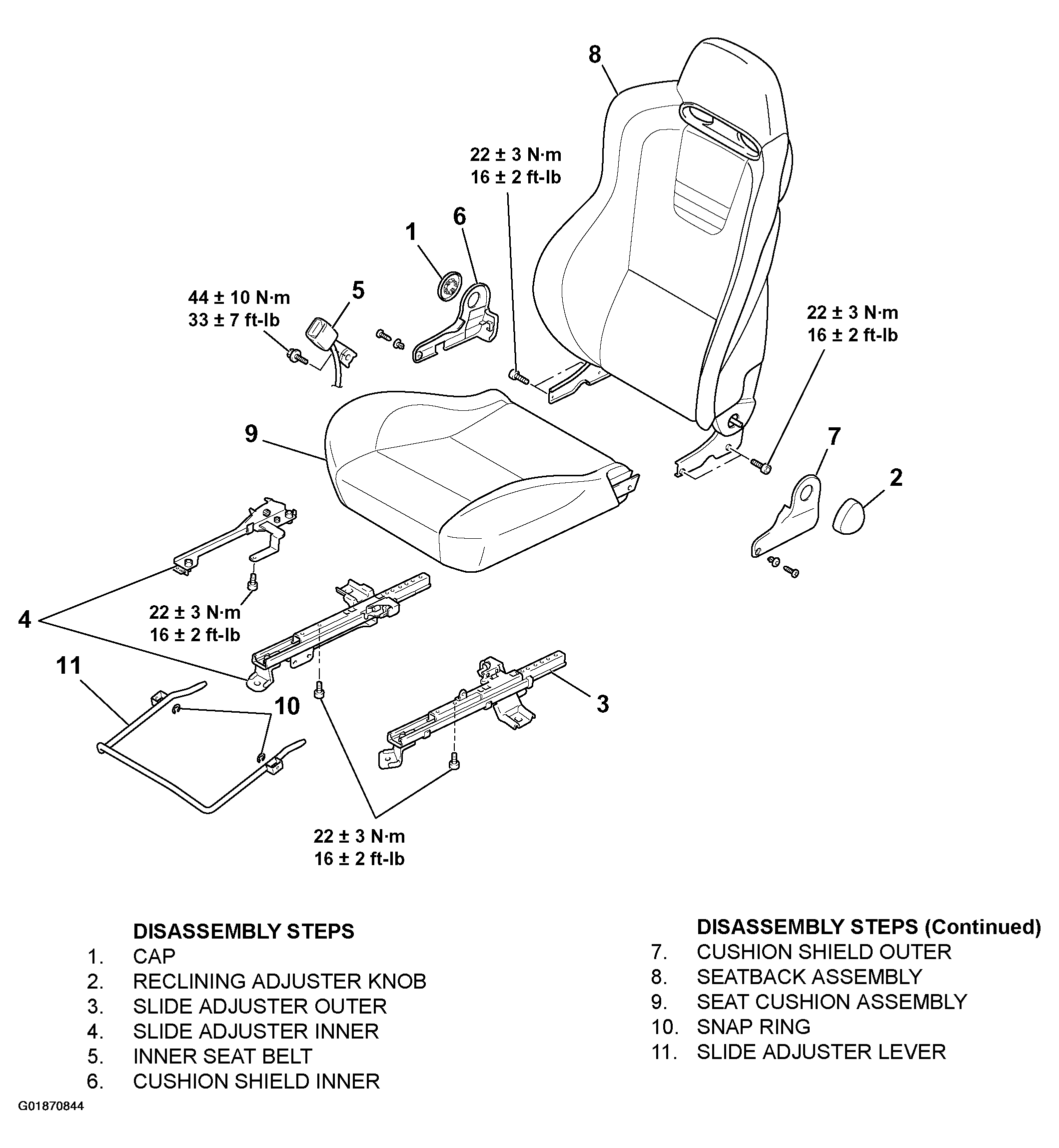

Fig 1: Disassembly And Assembly Front Seat Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
