Mitsubishi
>>
2003
>>
Lancer Evolution
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Ignition Switch & Immobilizer System - Evolution
>>
Ignition Switch
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

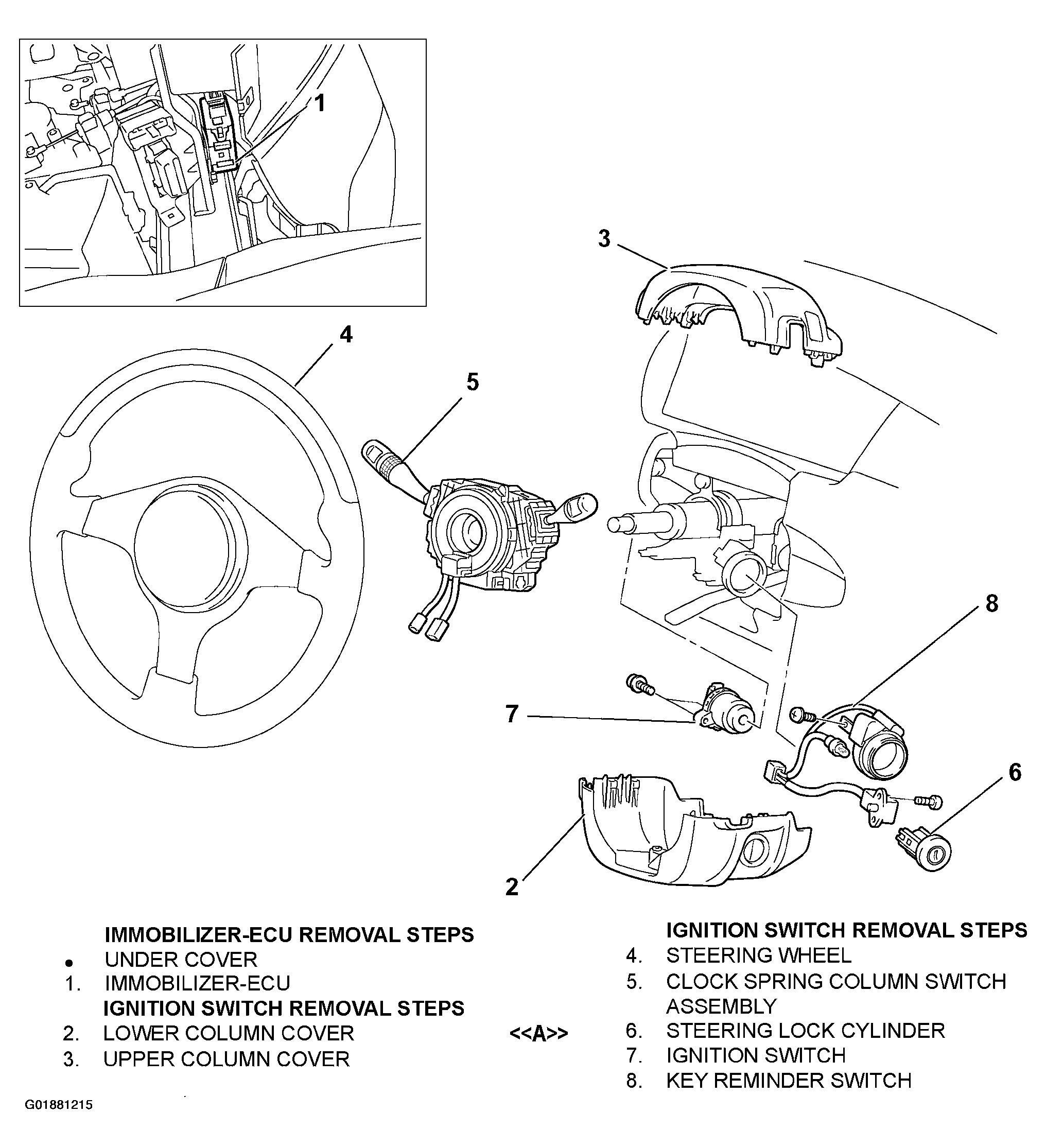

Fig 1: Removing & Installing Ignition Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
