>> P << Snap Ring Installation

  1. Install the slinkiest snap ring that can be fitted in the groove of output shaft.
  2. Make sure that the taper roller bearing end play meets the standard value.
    1. Standard value: 0 - 0.09 mm (0 - 0.0035 inch)

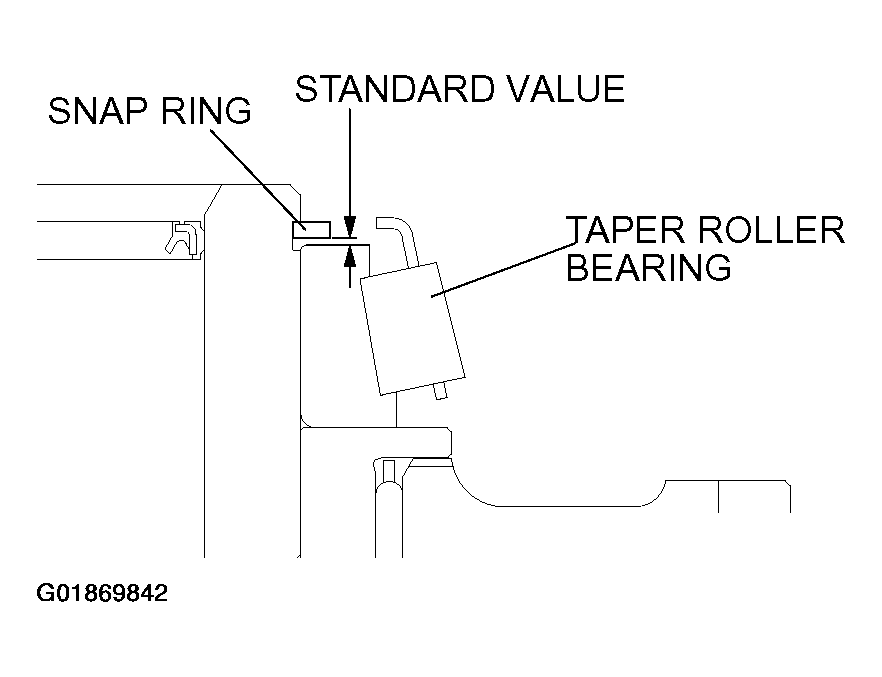

Fig 1: Identifying Taper Roller Bearing End Play
G01869842Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
