Disassembly And Assembly
Disassembly And Assembly

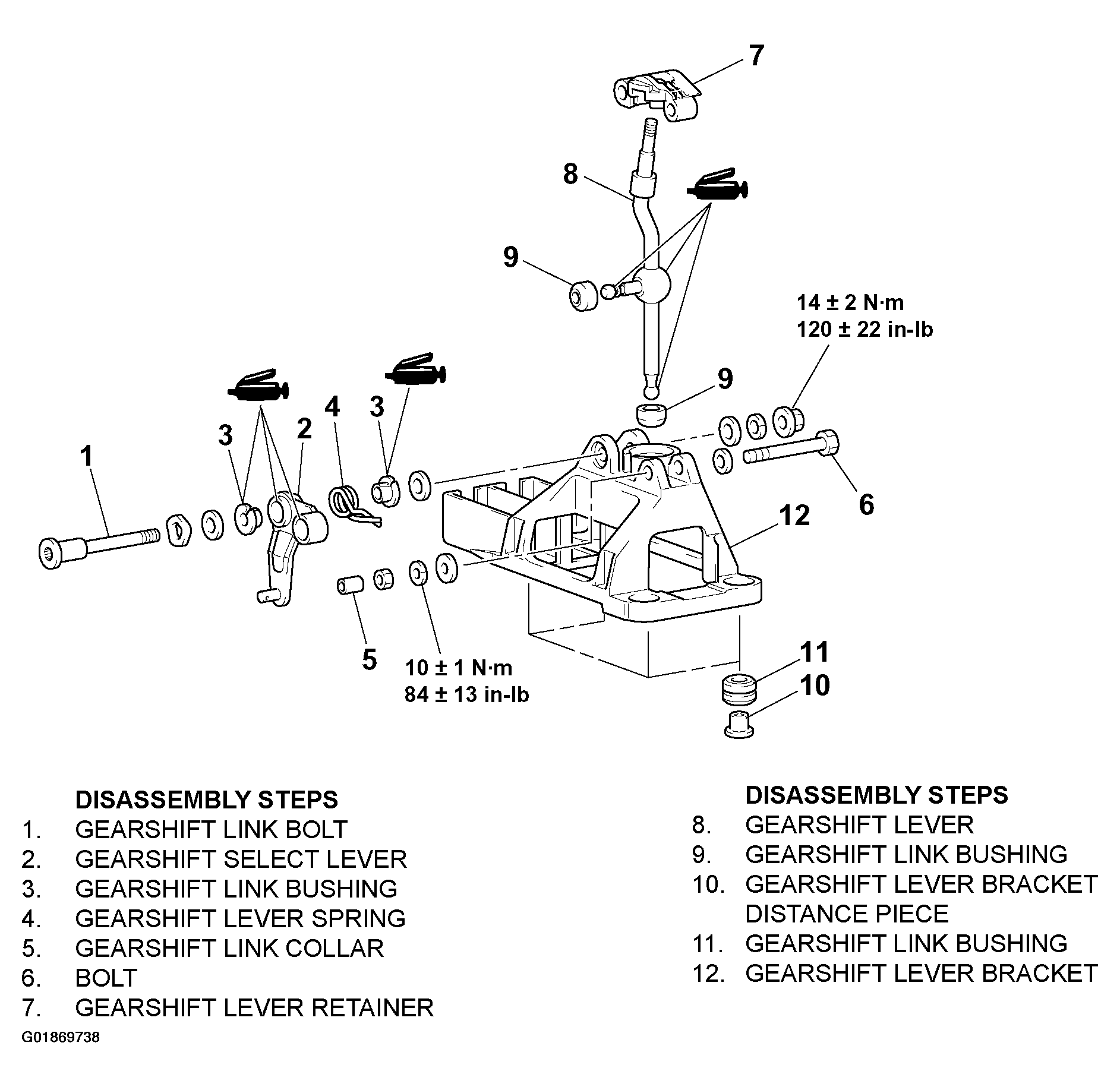

Fig 1: Exploded View Of Shift Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
