Power Window Sub Switch Connector E-17 Connector End View (Rear RH) (Evolution)

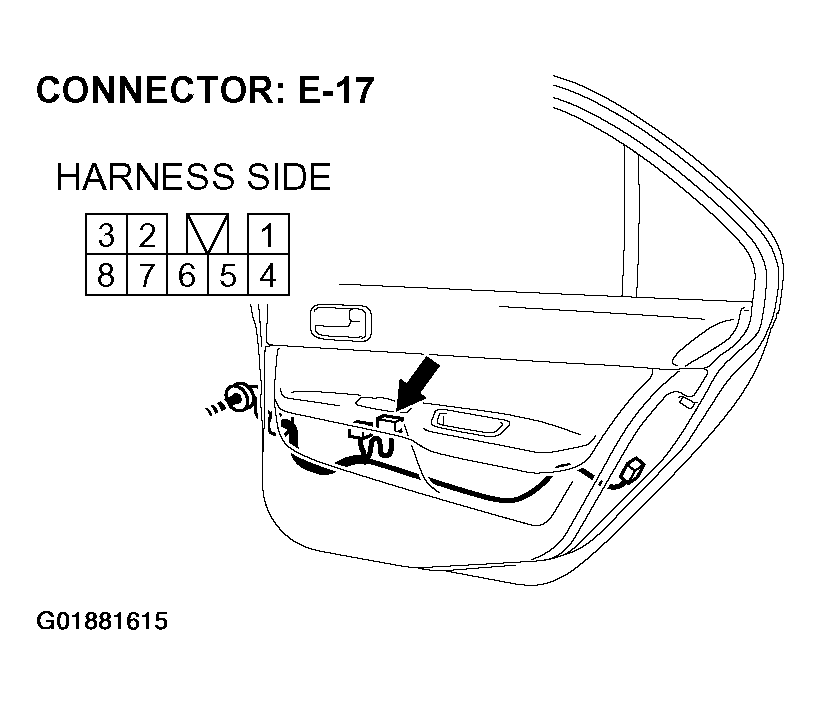

Fig 1: Power Window Sub Switch Connector E-17 Connector End View (Rear RH) (Evolution)
G01881615Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
